Our products are backed up with:
At Least 2-yearWarranty;
OEM/ODMService;
Outstanding Technical Support;
Value-added Services;
- Place of Origin:Zhejiang, China
- Brand Name:HITOSINO
- Model Number:DS-2CE16H0T-ITF
- Special Features:Waterproof / Weatherproof
- Sensor:CMOS
- Video Compression Format:H.265, H.264
- Data Storage Options:More
- Image Sensor:5 Megapixel high-performance CMOS
- Resolution:5MP
- Max. Image Resolution:2560x1944@20fps
- Shutter Time:1/25s -1/30s to 1/50, 000 s
- Features:OSD Menu ,2D DNR, DWDR
- IR Distance:EXIR, 20m IR distance
- White Balance:ATW/MWB
- Video output:4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- Weather Proof:IP67
- Power Supply:12 VDC±25%
Top Concerns You Might Have
Deep Cooperation with
Hik /Dahua/Uniview

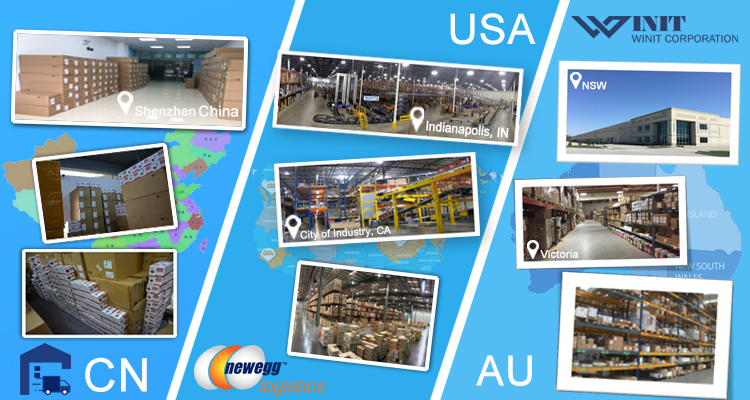

Sufficient Stock
Sufficient stock in Shenzhen and third-party warehouses in US& AU ensuretimely and safe deliveryto customers.
For available items, shipment will be arranged on the same/ second working day.
For OEM/ Unavailable items, lead time is around 15-25 working days.
Advanced CRM System
Based on our advanced CRM system,flexible relateswill be provided to our long-term valued customers who meet certain sales target each year from the date of signing “Reseller Agreement”.
Resellers, installers and wholesalers are welcomed to contact us for special offer.
Product Main Features

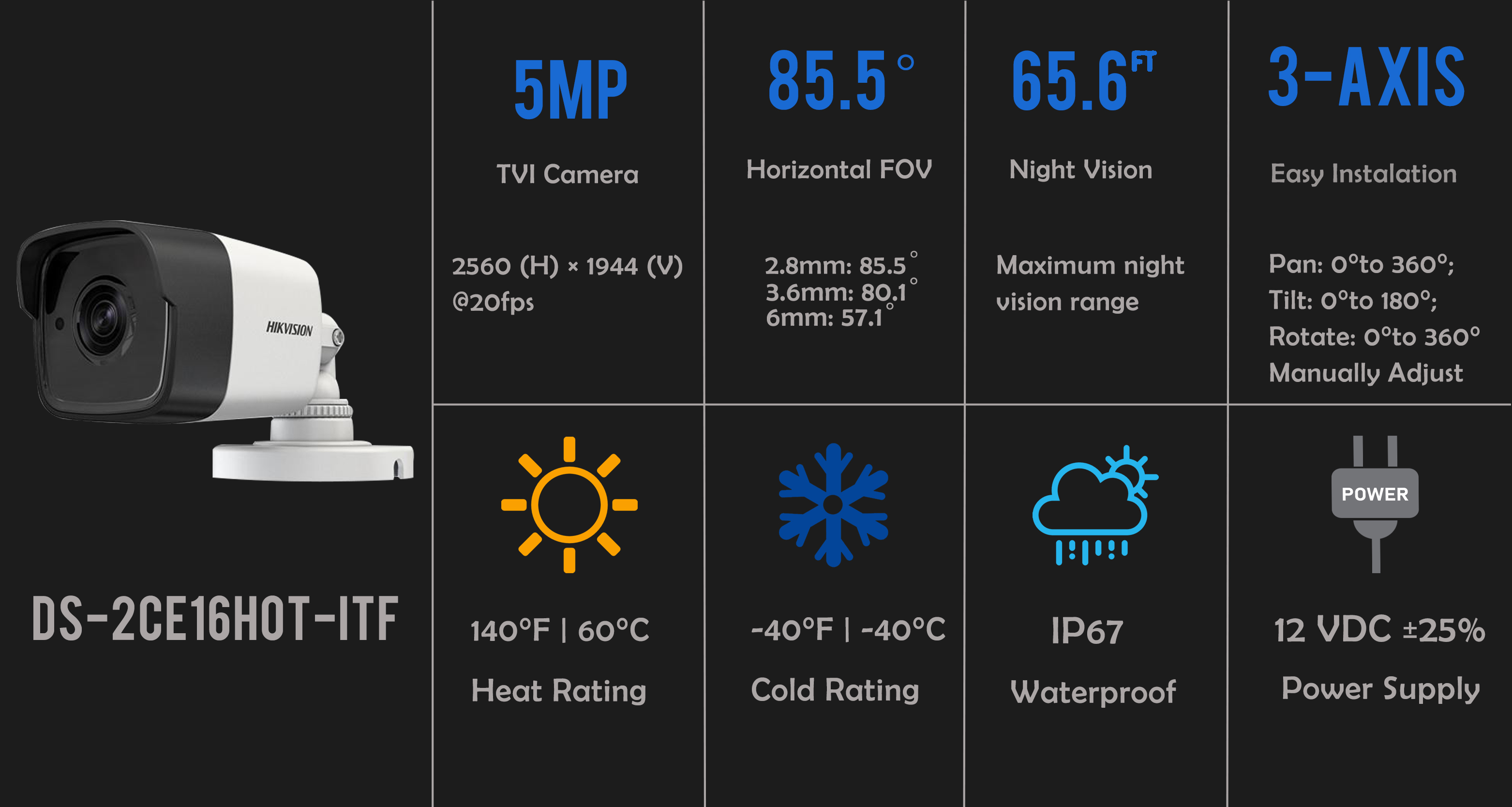

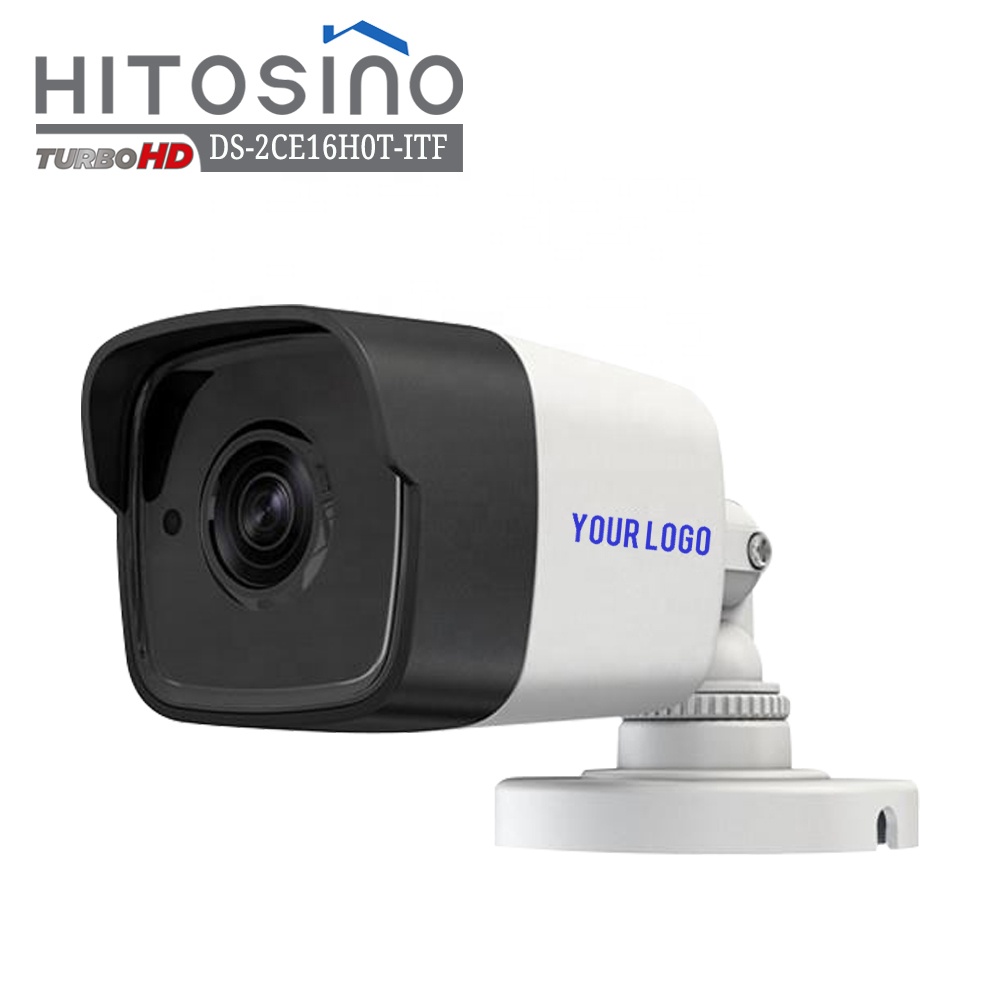

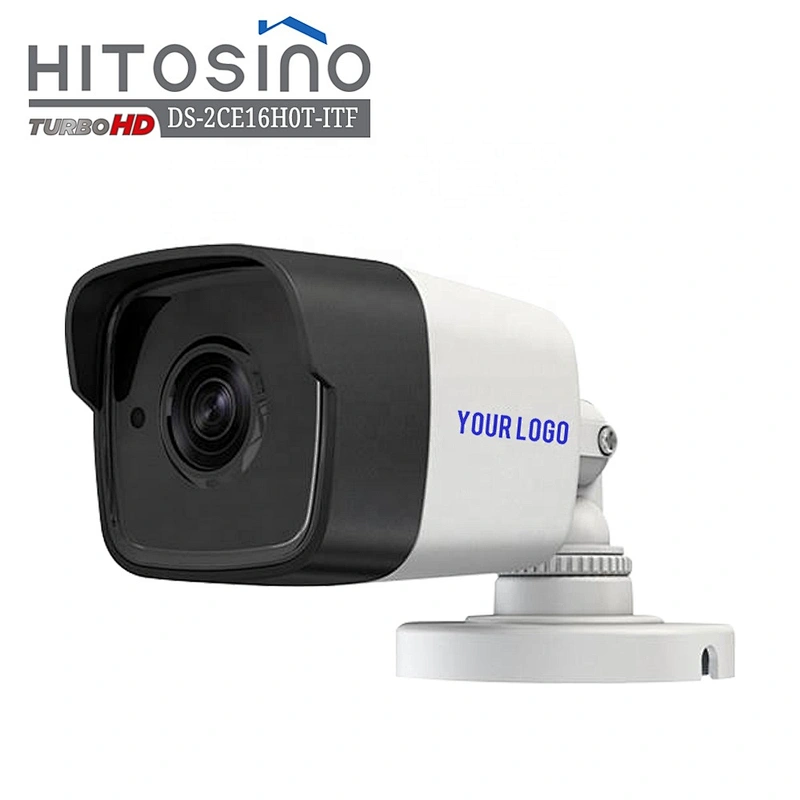

5 MP Turret Camera TVI
Get a 5MP view of your property using existing coax cables withthe TurboHD DS-2CE16H0T-ITF 5MP Outdoor HD-TVI Turret Camera with Night Vision from Hik . Equipped with a 5MP CMOS sensor and a 2.8mmfixed lens, the camera captures video at resolutions up to 2560 x 1944 at 20 fps in a horizontal field of view of 85.5°. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 20m. Image enhancement features including digital wide dynamic rangeandautomatic white balance enable you to capture clear images in varying lighting conditions. Designed for outdoor use, the camera is housed in an IP67-ratedenclosure.
The integration of many products and technologies in one system is a huge advantage in terms of system compatibility and convenience for users and installers.

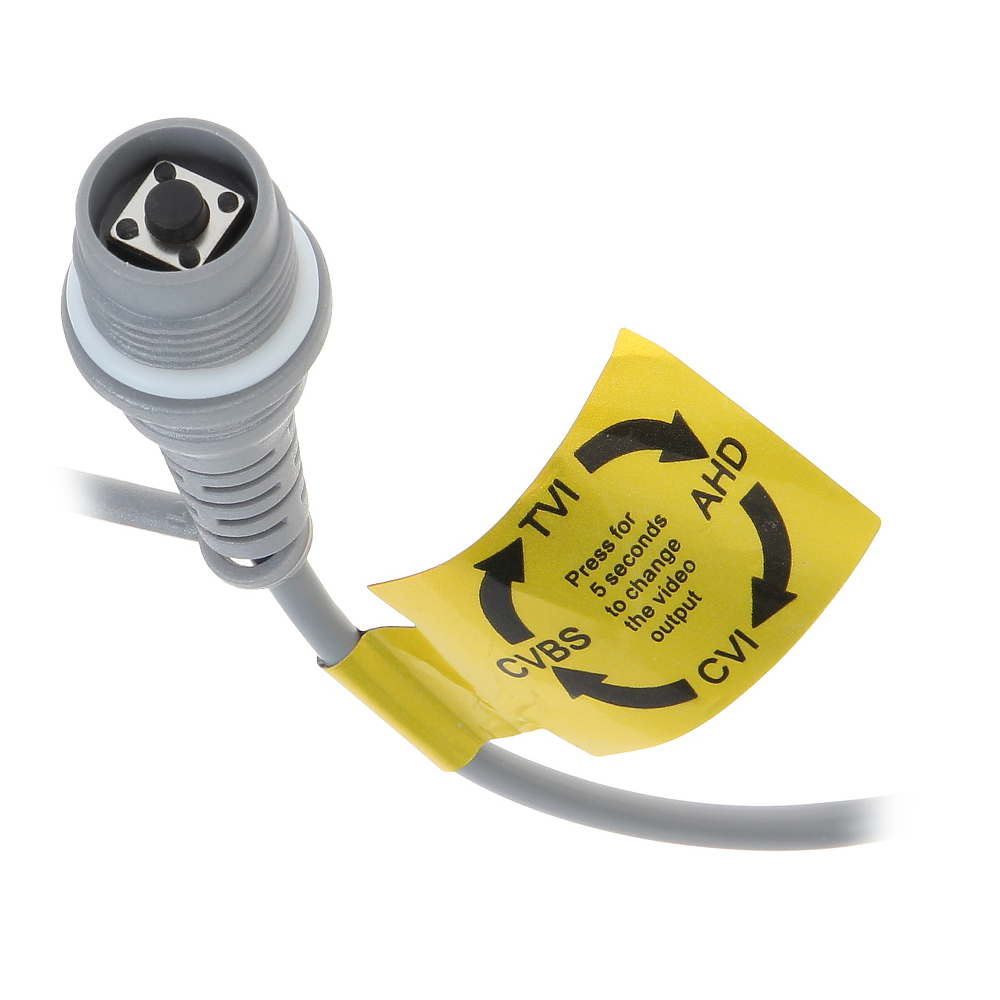

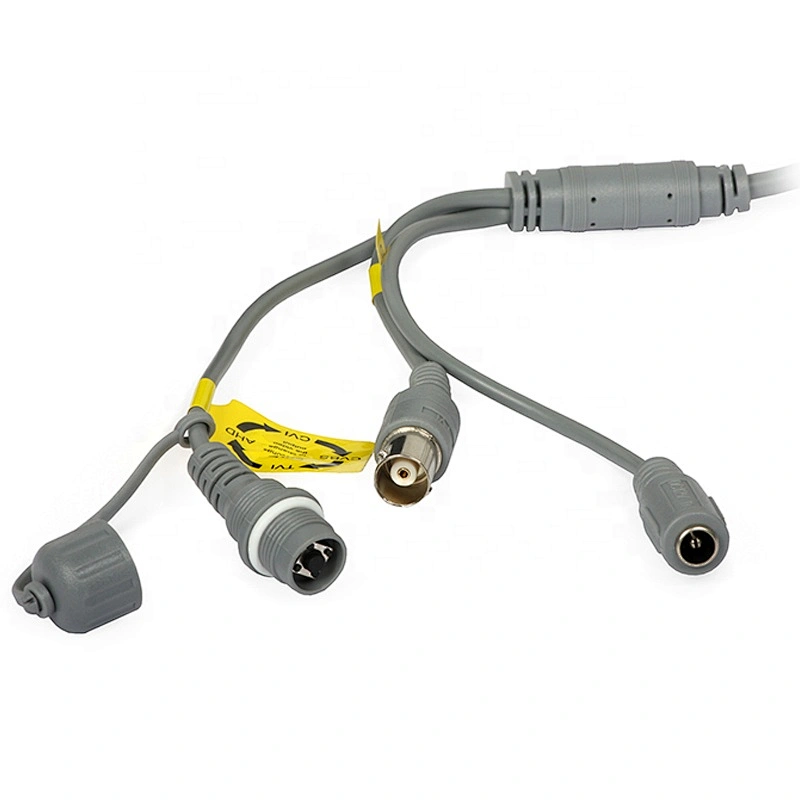

The camera is factory set in the TVI system . The system is changed by holding the button on
the cable for approx.5 seconds in order TVI -> AHD -> CVI ->CVBS.
the cable for approx.5 seconds in order TVI -> AHD -> CVI ->CVBS.
Up to 5MP

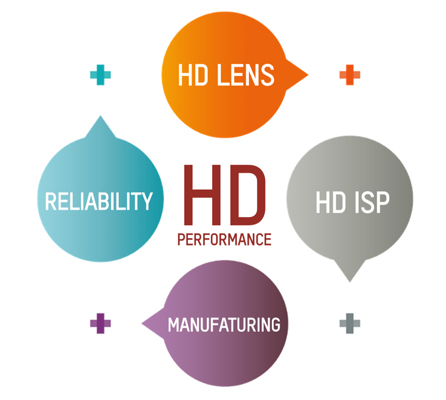

The Turbo HD Analog solution offers up to 5MP HDTVI Camera input. The HD video output is not just based on the work of sensor, but the combination of the HD lens and Hik image signal processing (ISP). HD lenses with low distortion and large apertures enable better low-light performance, while Hik ISP provides videos with greater detail and vibrant color.

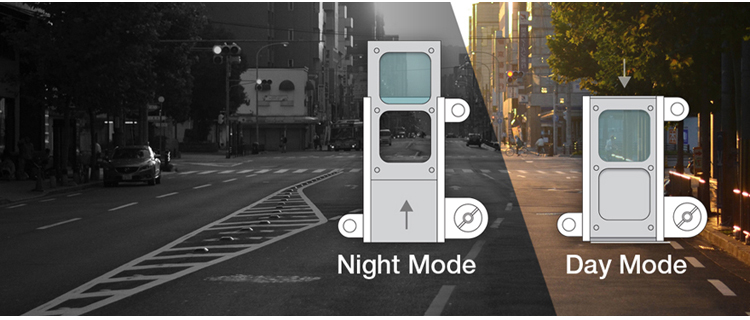

ICR -IR CUT FILTER REMOVABLE
At night or under low illumination scenes, the camera switchfrom color mode to B/W mode automatically,which can improve low-light performance effectively.

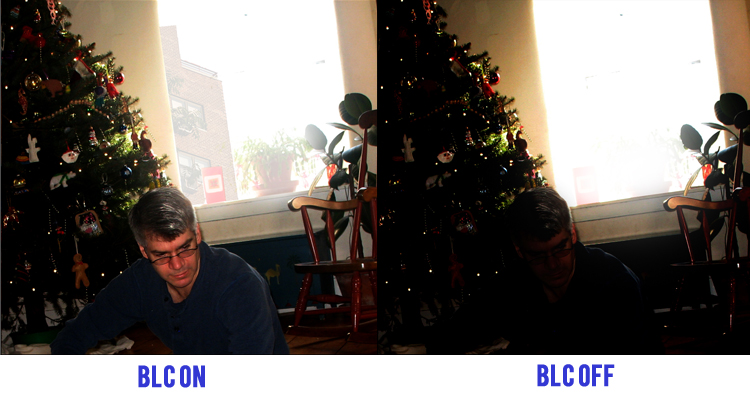

BLC-Back Light Compensation
If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make it clear.

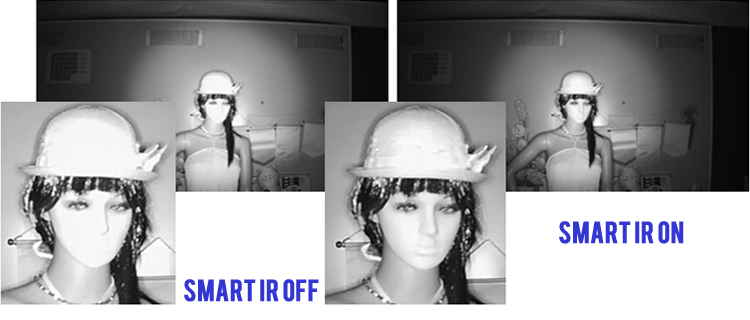

Smart IR
Smart IR is a technology was invented to adjusts the intensity of the camera’s infrared LEDs to compensate for overexpose problem.
These cameras automatically adjust the intensity of their built in infrared LEDs to compensate for objects within close distances to the camera lens.
These cameras automatically adjust the intensity of their built in infrared LEDs to compensate for objects within close distances to the camera lens.

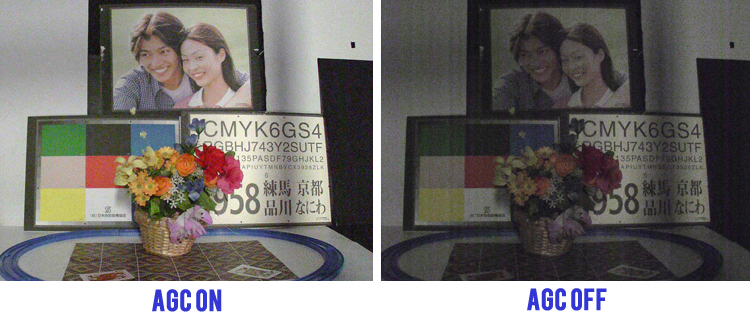

AGC - AUTOMATIC GAIN CONTROL
It amplifies the signal to make the image brighter during night time. This amplification is called gain. The camera can auto adjust the gain control according to the signal level.
DNR-Digital Noise Reduce
Hik cameras adopt 2D digital noise reduction to provide images with less noise in low-light surveillance scenes compared to conventional cameras. 2D DNR can be used to enhance image quality and save bandwidth.

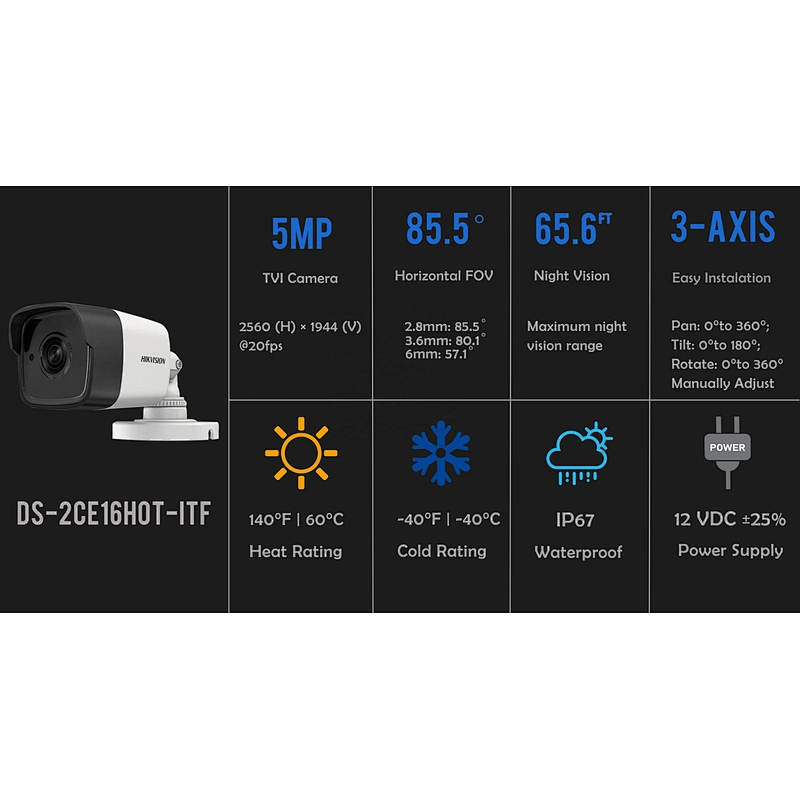

Specifications
Camera | ||
Image Sensor | 5 MP CMOS image sensor | |
Effective Pixels | 2560 (H) × 1944 (V) | |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
Shutter time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s | |
Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens | |
Horizontal Field of View | 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm) | |
Lens Mount | M12 | |
Angle Adjustment | Pan: 0°to 360°; Tilt: 0°to 180°; Rotate: 0°to 360° | |
Synchronization | Internal synchronization | |
Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps | |
Menu | ||
AGC | Support | |
D/N Mode | Auto/Color/BW (Black and White) | |
White Balance | ATW/MWB | |
BLC | Support | |
DWDR (Digital Wide Dynamic Range) | Support | |
Language | English | |
Functions | Brightness, Sharpness, DNR, Mirror, Smart IR | |
Interface | ||
Video Output | 1 HD analog output | |
Switch Button | TVI/AHD/CVI/CVBS | |
General | ||
Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) | |
Power Supply | 12 VDC ±25% | |
Power Consumption | Max. 4.3 W | |
Protection Level | IP67 | |
Material | Metal | |
IR Range | Up to 20 m | |
Communication | Up the coax, Protocol: HIK-C (TVI output) | |

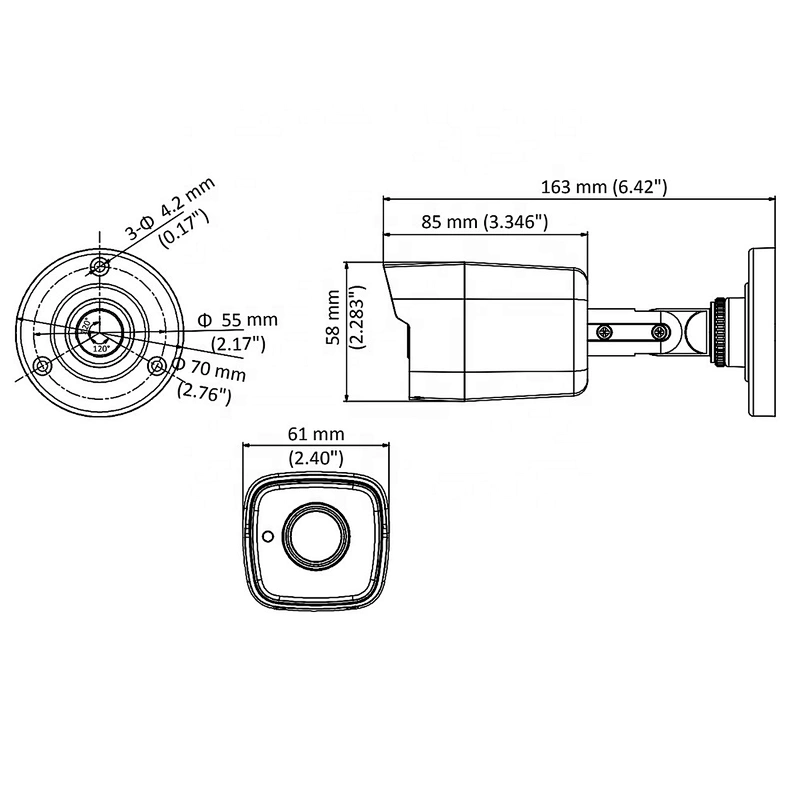

Dimensions | 58 mm × 61 mm × 163 mm (2.28"× 2.40"× 6.42") | |
Weight | Approx. 335 g (0.74 lb.) | |

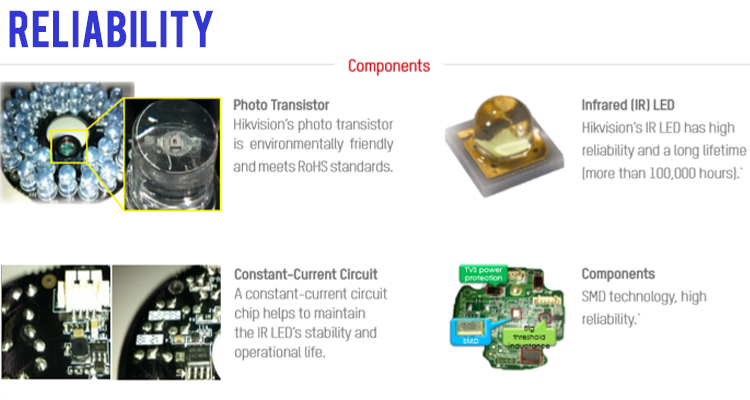

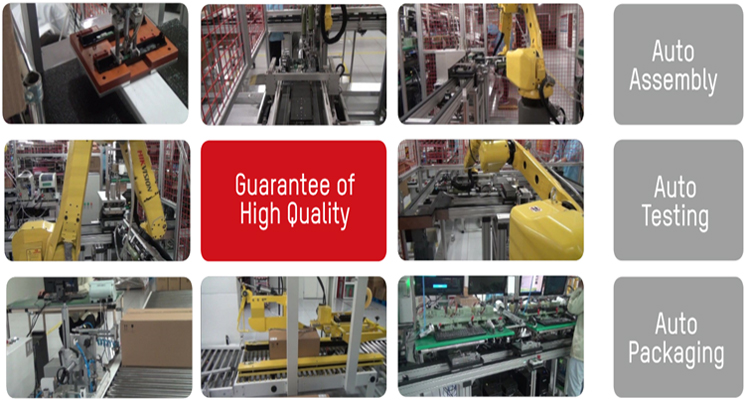

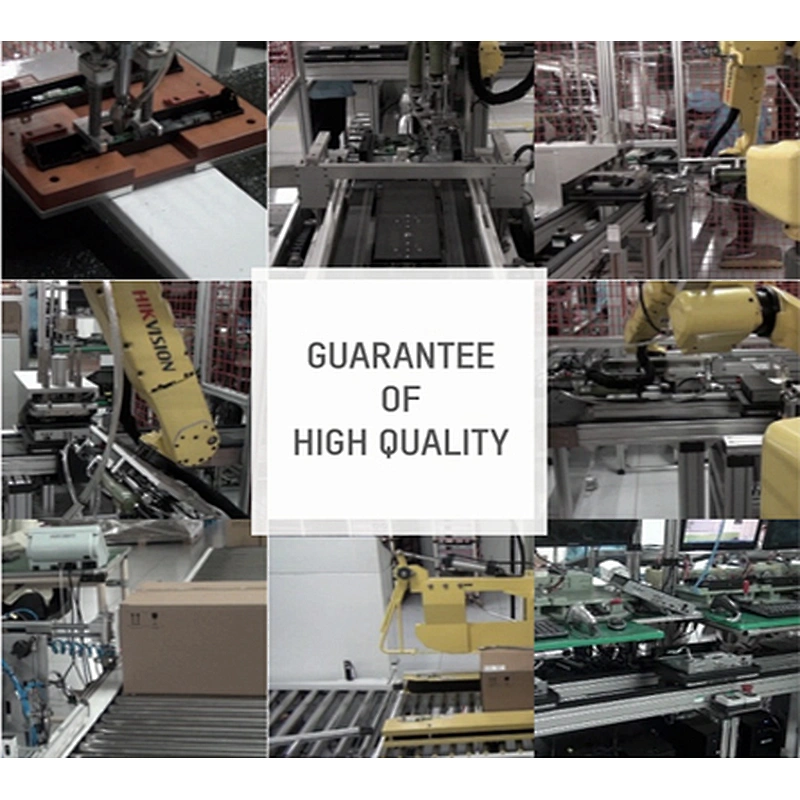

Advanced Manufacturing Lever
-The products are processed in a cleanroom for precise assembly of camera lenses.
-Hik uses automation software and rigorous testing to improve production efficiency and ensure consistency.

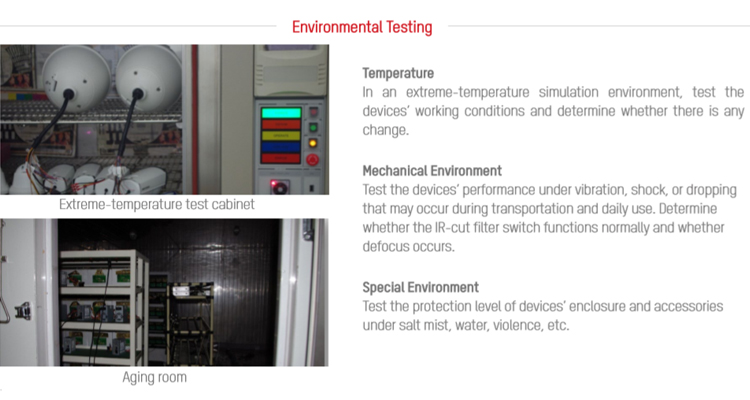

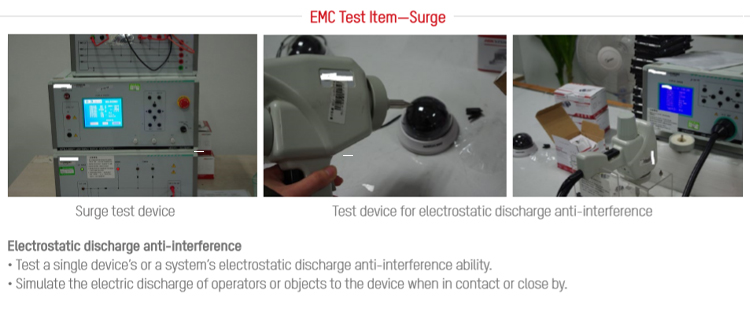

-The products also undergo environment, aging, and EMC testing—which means Hik Turbo HD products can thrive in extreme temperatures and other very specialized environments.
Guarantee of High Quality
Because of our advanced, industry-leading manufacturing technologies, the flexible Turbo HD 3.0 and 4.0 Solution offers seamless compatibility with various third-party HDTVI-compliant cameras and DVRs. Your customers don’t have to replace each and every component in their setup.Tthis easy and affordable solution will upgrade an existing analogue CCTV system to high definition.
High-Definition Lenses
Hik hosts its own professional lens division as part of its R&D department—perfecting lens engineering from design to assembly to action.

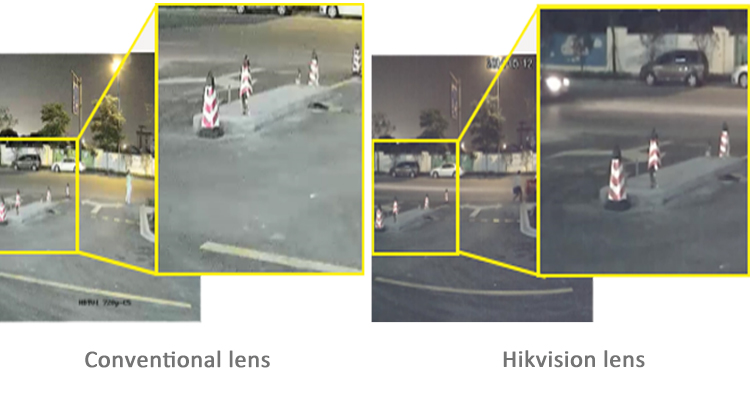

Large Aperture
With large apertures, Turbo HD cameras maintain better low-light performance.

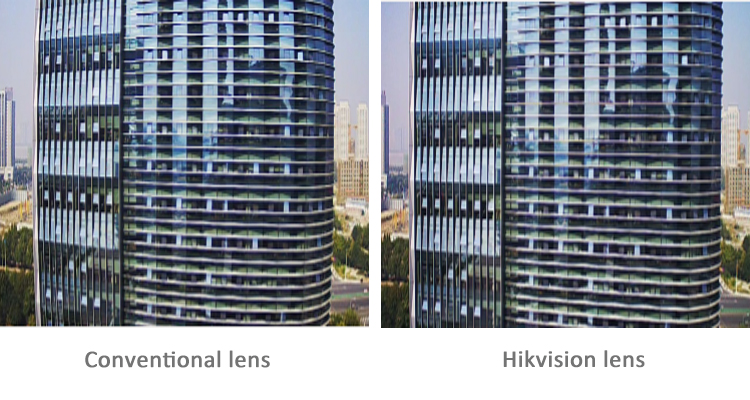

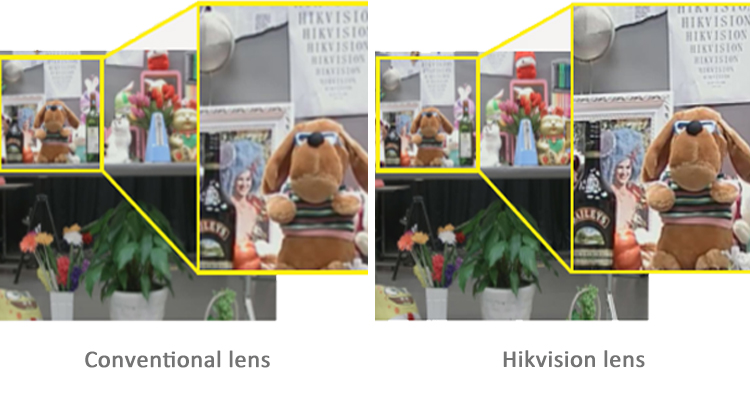

Low Distortion
Hik vision’s Turbo HD cameras utilize HD lenses with minimal distortion.

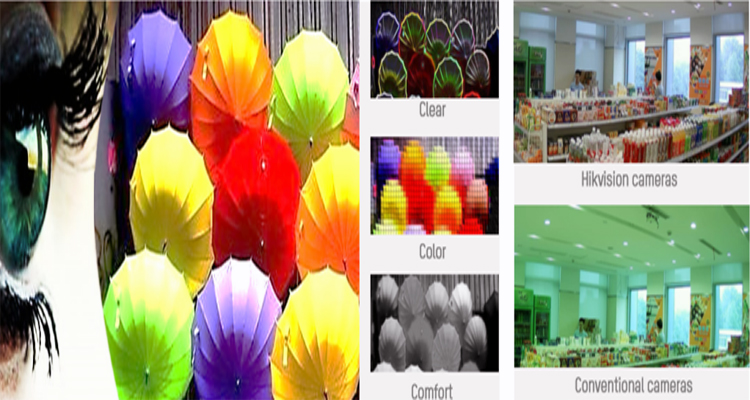

High-definition inter-system Protocol
Hik vision’s Inter-System Protocol (ISP) provides videos with more details and real color.

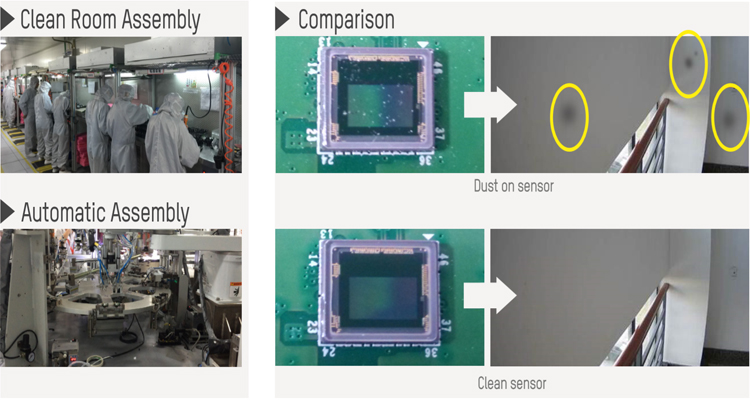

Manufacturing
Clearn room assembly ensures clearn sensor and products reliability; Automatic assembly ensures high efficiency and avoids problems such as defocus.
Company Profile
About Hailan
Hailan, with two own brandsHITOSINO and VALUCAM,established in 2015, is a young, creative and energetic company located in Shenzhen, China.
With a strong focus on service and providing innovative, high quality and competitively priced products including Hik /Dahua/UniviewCCTV Cameras, IP Video Solutions and so on, Hailan is the ideal partner for your continuously developing business.
Our advantages include:
Dedicated, friendly sales teams with extensive industry experience –Most of our sales team has won Hik HCSA certificate, aiming to best understand your requirements and commit to excellent service.
Reward System-Flexible Reward to retailers& Installers who meet certain sales target each year from the date of signing “Reseller Agreement”.
FAQ
1.How can we confirm the products are genuine Hik and Dahua English version?
Hik and Dahua softwares can be downloaded from their official website, and only original products are fully compatible with the softwares.
2.Can you provide OEM service? Is there MOQ?
OEM is preferred, and in most cases, no MOQ is required.3.How is your after-sales service?
Most of our sales engineers and technicians have won Hik HCSA certificate. And thanks to manufacturers' support, all issues can be solved timely and properly. 2 years warranty will be provided.
4.Can you provide any value-added service for long-term business?
It is our honor to be your long-term partner in China, so project designs, online training, marketing information share, working as your Shenzhen purchasing office or any other service can be provided.
If you are interested in learning more information or discount, please don't hesitate to contact us!
