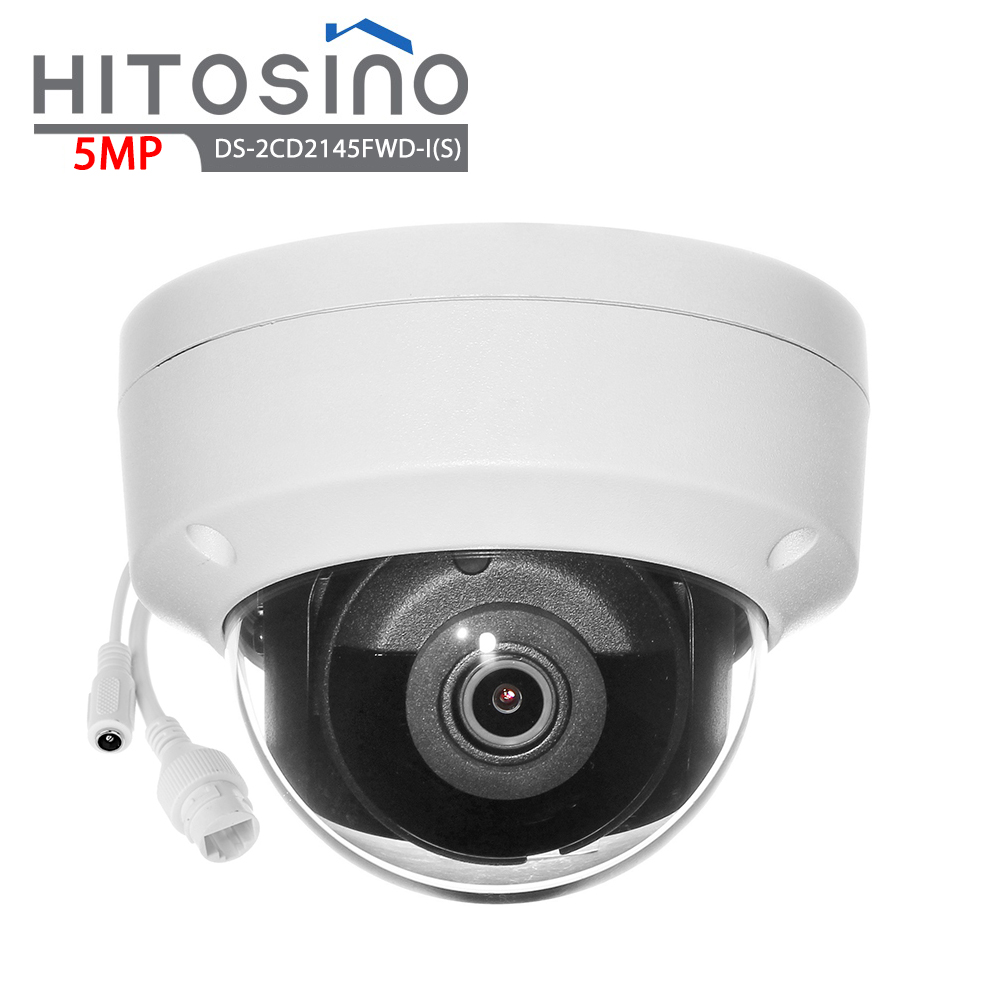

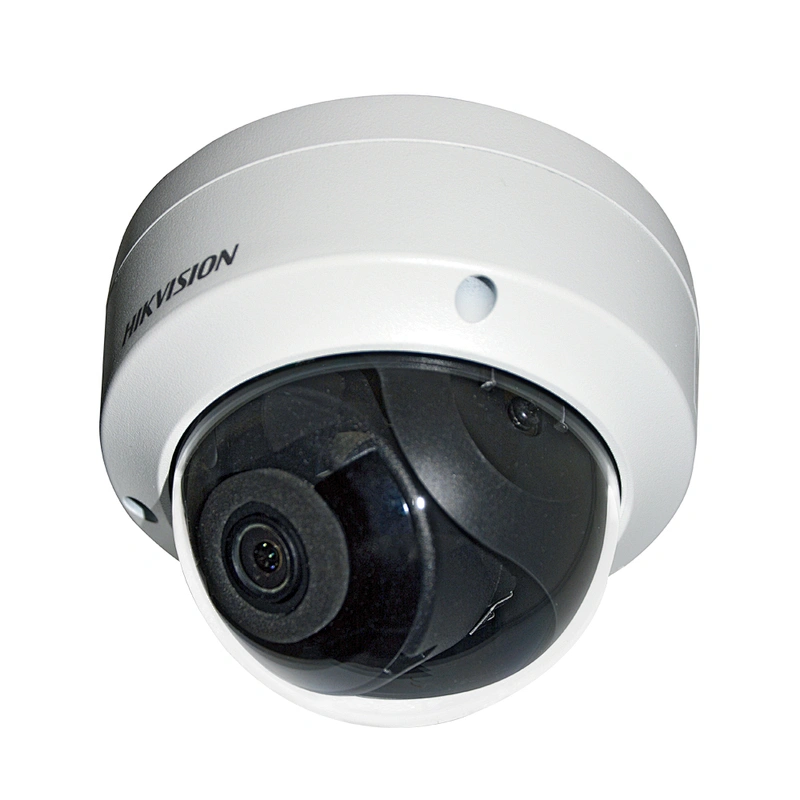

2CD2145FWD-I 4MP Dome HV surveilance camera IR 30m IK10 POE indoor wdr full hd 1080 CCTV Network IP Camera 2.8mm

2CD2145FWD-I 4MP Dome HV surveilance camera IR 30m IK10 POE indoor wdr full hd 1080 CCTV Network IP Camera 2.8mm

Model NO.: DS-2CD2145FWD-I
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:Zhejiang, China
Brand Name:HV
Model Number:DS-2CD2145FWD-I
Warranty:2 years
Special Features:Motion Detection
Sensor:CMOS
Network:Ip
Function:Waterproof / Weatherproof, NIGHT VISION, Built-in Mic
Video Compression Format:H.265
Data Storage Options:NVR, Full HD, SD Card, Micro SD card
Application:Indoor, Outdoor
Customized support:Online technical support, Customized logo, OEM, ODM
Image Sensor:1/2.5"Progressive Scan CMOS
Resolution:2688 * 1520 @30fps
WDR:BLC/3D DNR/ROI/HLC
Min. Illumination:Color: 0.008 lux @(F1.2, AGC ON),Color: 0.014 lux @(F1.6, AGC ON)
Day& Night:IR Cut Filter camera cctv
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Protection Level:IP67,IK10 Weatherproof camera
IR Range:Up to 30m night vision camera
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Channels:4
Certification:ce, FCC

All Hikvsion, Dahua and Uniview products can be supported ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!

Details Images

4MP HD resolution IP Network Camera

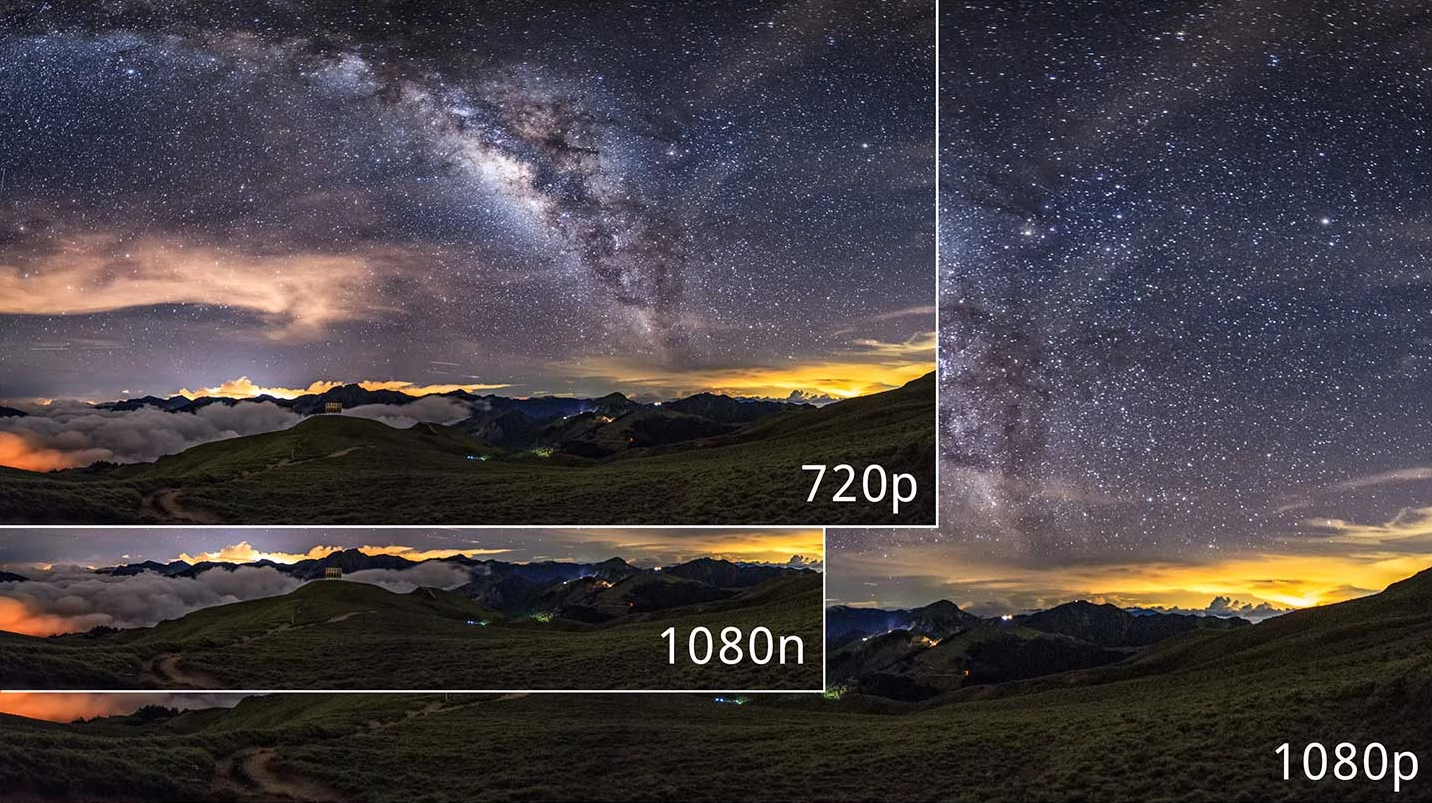

This 4MP resolution security camera contains 2× the amount of pixels as a 1080p security camera. This 4MP camera can record at a pixel ratio of 2688 x 1520.

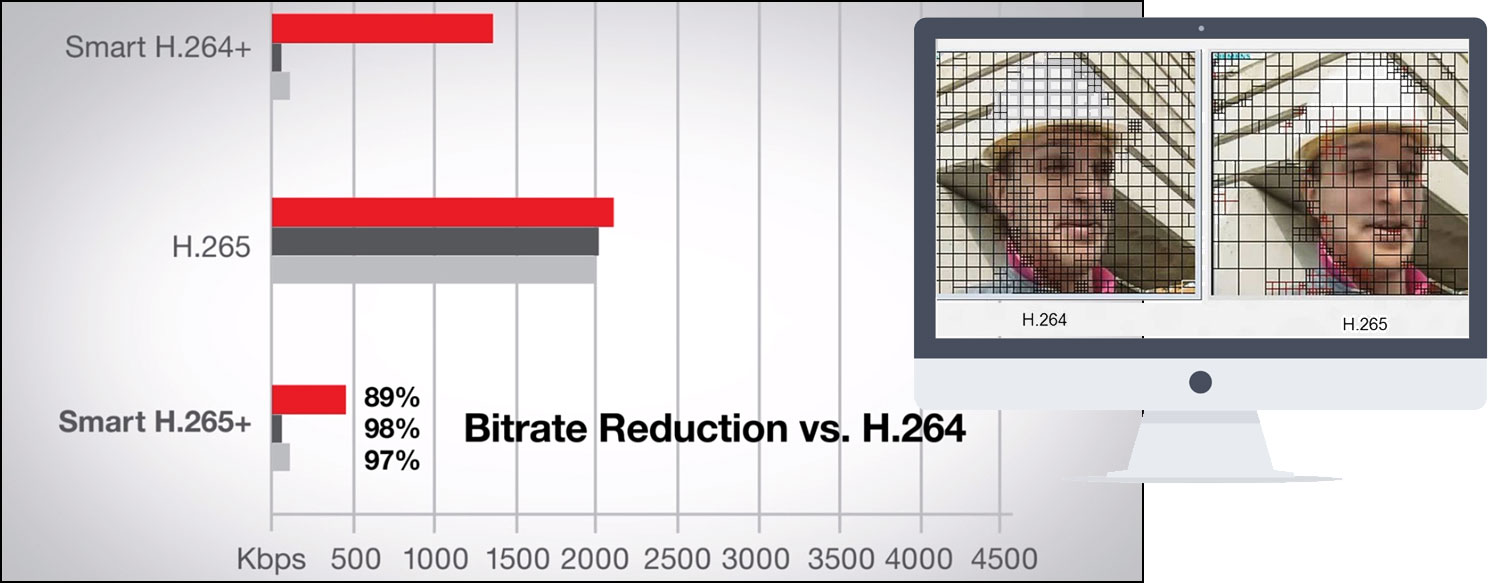

Innovative codec HV H.265 +

H.265 + is a video encoding system that is an extension of the technology used in H.265 / HEVC.

H.265+ allows you to:

-Optimize the Basic Functions of the Camera;

-Allows Better Use of Network Bandwidth;

-Significantly Reduces Interference

Guarantees Long-term Archiving of Recordings Without Compromising Image Quality.

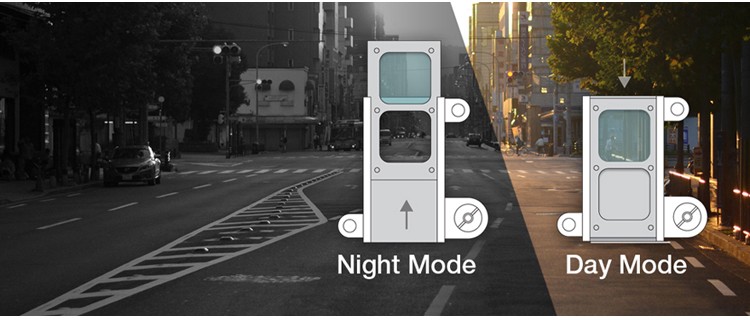

ICR -IR Cut Filter Removable

At night or under low illumination scenes, the cameraswitch from color mode to B/W mode automatically, which can improve low-light performance effectively.

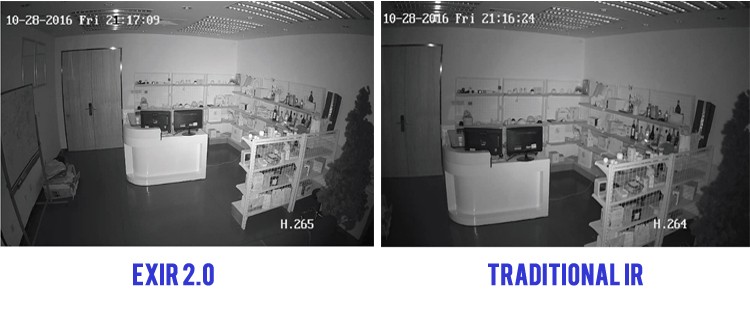

EXIR 2.0

Infrared lamps EXIR 2.0 are an innovative technology that uses the latest type of highly efficient IR LED series EXIR.Compared with the traditional generation, EXIR 2.0 has better heat dissipation and increased lifespan of up to 20,000 hours.

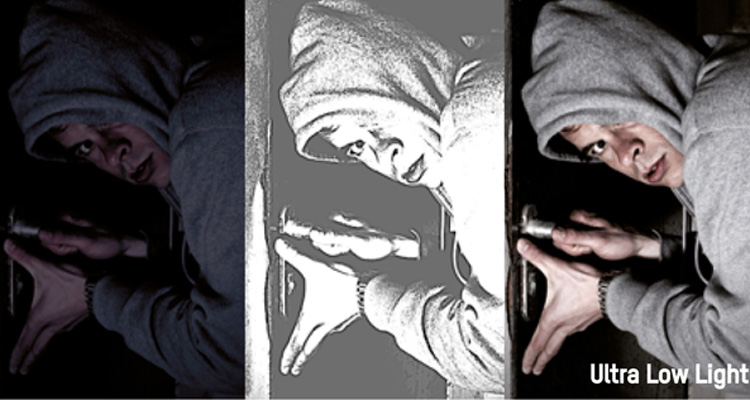

Ultra-low Light Technology

DarkFighter technology, combining Full HD 2688 × 1520 @30fps and WDR 120dB enable that the Camera can be records images of exceptionally good quality even in the most demanding conditions.

Original Image

BLC and WDR are off.

BLC-Back Light Compensation

If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make it clear.

WDR-Wide Dynamic Range.

WDR cameras often incorporate an image sensor that takes different exposures of a scene and combine them into one image, enabling objects in both bright and dark areas of a scene to be visible.

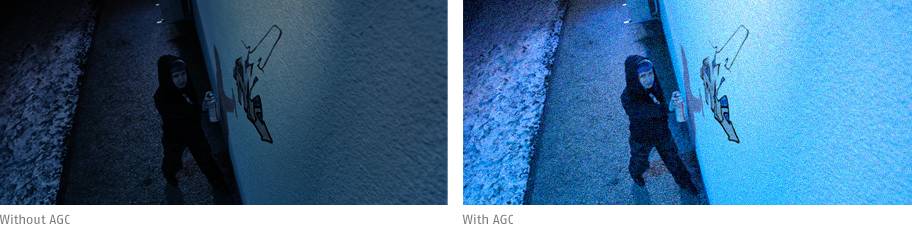

AGC - Automatic Gain Control

It amplifies the signal to make the image brighter during night time. This amplification is called gain. The camera can auto adjust the gain control according to the signal level.

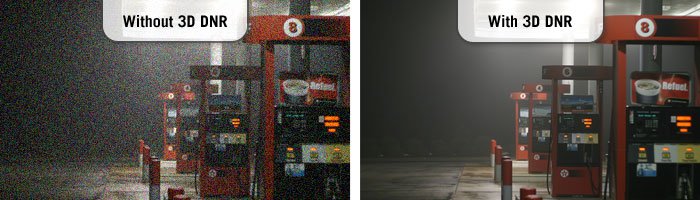

DNR-Digital Noise Reduce

HV cameras adopt 3D digital noise reduction to provide images with less noise in low-light surveillance scenes compared to conventional cameras. 3D DNR can be used to enhance image quality and save bandwidth.

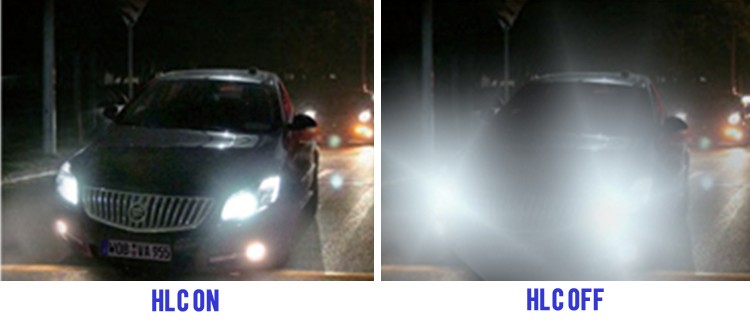

High Light Compensation

Compensate the strong light in the picture, so that the surrounding area wouldn't be over-exposed and still could be seen.

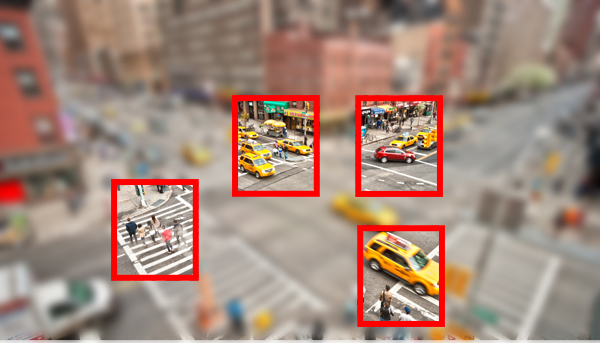

ROI-Region of Interest

ROI technology assigns a more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

Privacy masking

Thanks to the system of privacy masks, it is possible to freely determine fragments of the image that will be excluded from the video surveillance.

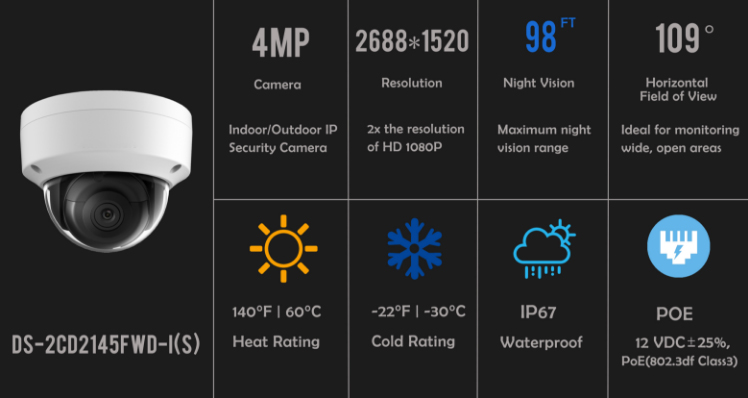

Specifications

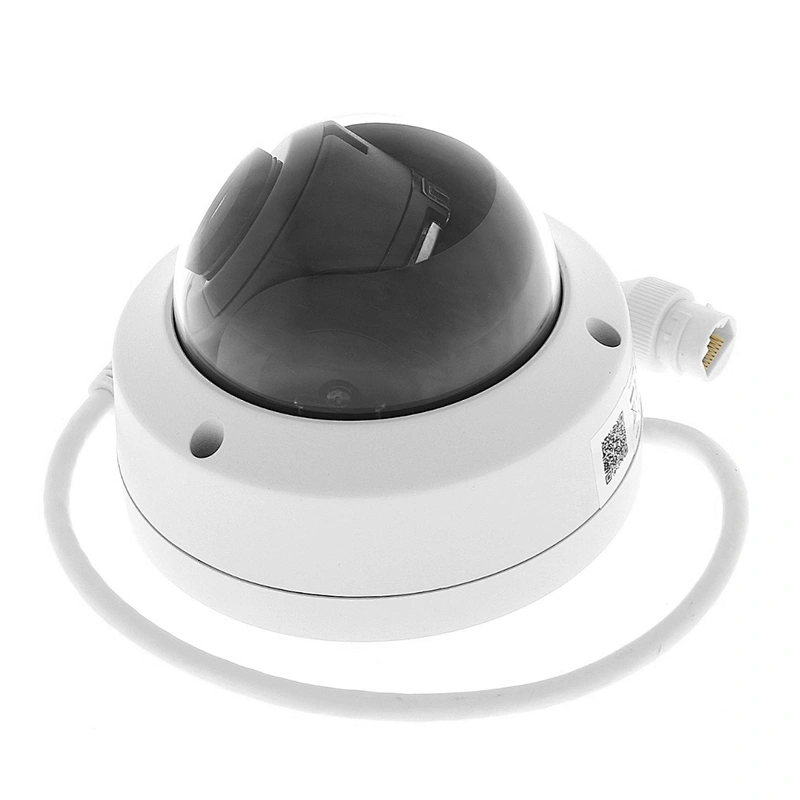

HV IP Camera Dome 4MP DS-2CD2145FWD-I white
Image Sensor	1/2.5"Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IR Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time	1/3 s to 1/100,000 s
Lens	2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23°
Lens Mount	M12
Adjustment Range	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Fixed
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate	32Kbps~16Mbps
Triple Streams	Yes
Audio Compression:	-S: G.711/G.722.1/G.726/MP2L2/PCM(DS-2CD2145FWD-I without the function)
Max. Image Resolution	2688 × 1520
Frame Rate	50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5 W
Impact Protection	IK10
Weather Proof	IP67
IR Range	up to 30 m
Dimensions	Camera: Φ 111 × 82.4 mm (Φ 4.4"× 3.2") Package: 134 × 134 × 108 mm (5.3"× 5.3"× 4.3")
Weight	Camera: 500 g (1.1 lb.)

Hot Products

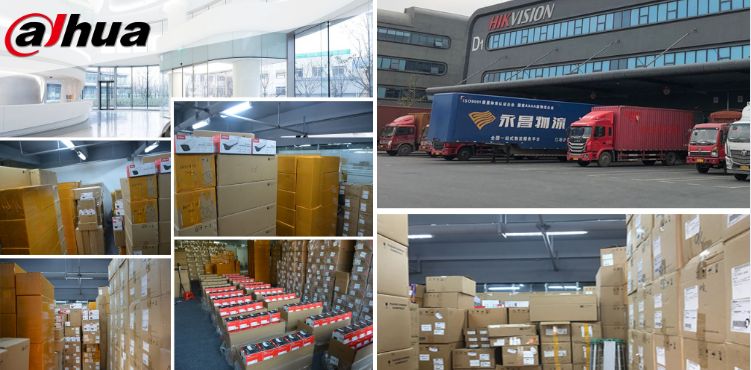

Company Profile

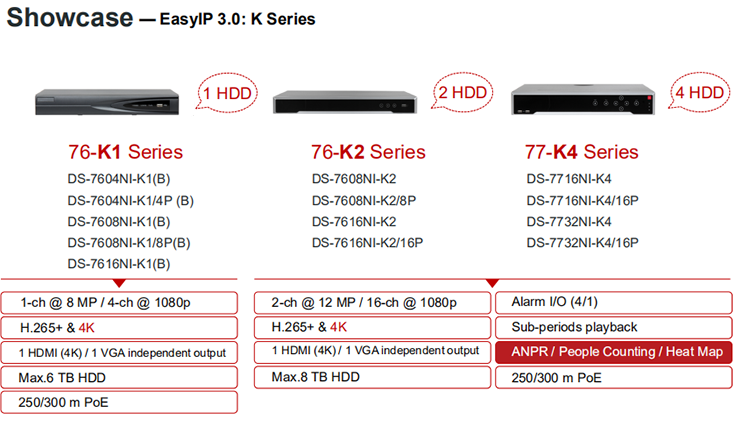

Product Showcase
