Shenzhen HaiLan ShiKe Electronics Co.,Ltd, established in 2015, is a young, creative and energetic company . We have two own brands Hitosino and Valucam,with a strong focus on service, as well as a commitment to providing innovative, high quality and
competitively priced products .Product including Oem Hk / Da hua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We are pleasure that can provide high quality product for you,Looking forward to work with you.
- Place of Origin:Guangdong, China
- Brand Name:HITOSINO
- Model Number:HS-2CD2347G1-L(U)
- Warranty:2 years
- Special Features:Human Motion Tracking, Face detection, Vandal-proof, Motion Detection, Face Recognition
- Sensor:CMOS
- Style:Turret Camera
- Function:Built-in Mic, NIGHT VISION, Waterproof / Weatherproof
- Video Compression Format:H.265
- Data Storage Options:MORE
- Application:Outdoor, Indoor
- Customized support:Online technical support, Customized logo, OEM, ODM

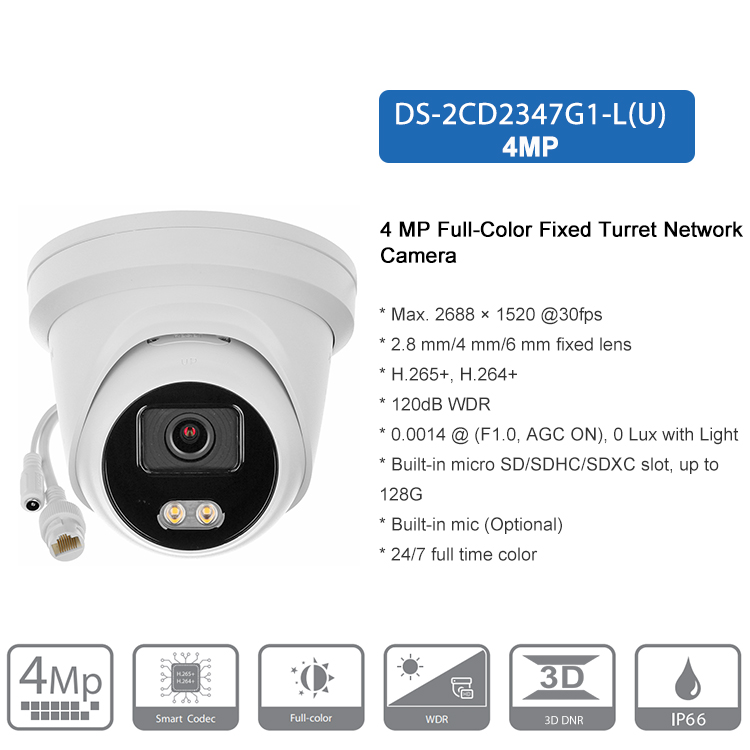

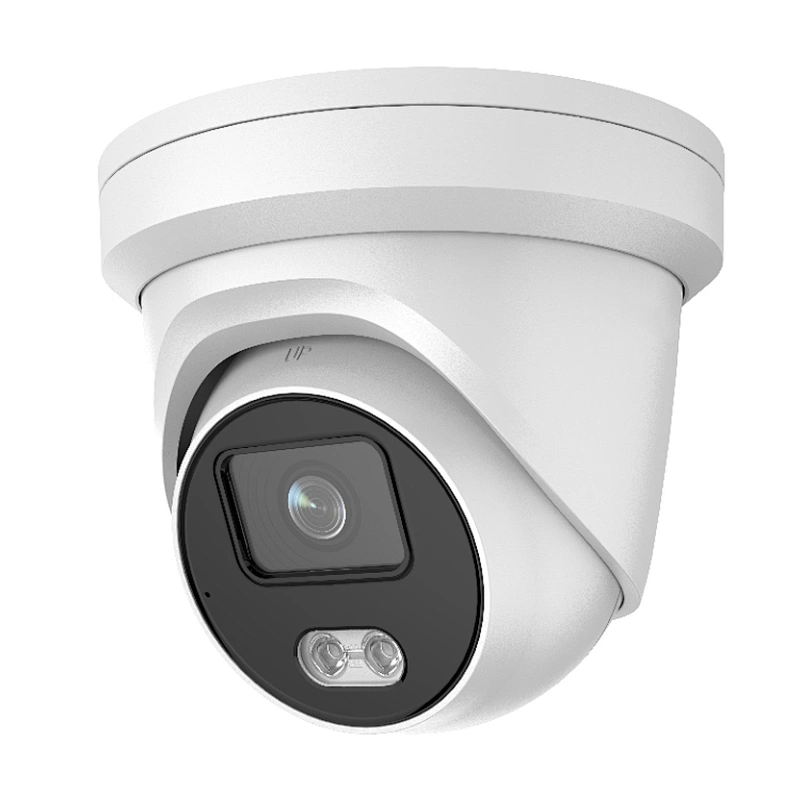

- Product name:4 MP Full Color Fixed Turret Network Camera
- Image Sensor:1/1.8"Progressive Scan CMOS
- Focal length:2.8/4/6 mm
- Waterproof:IP66/IP67

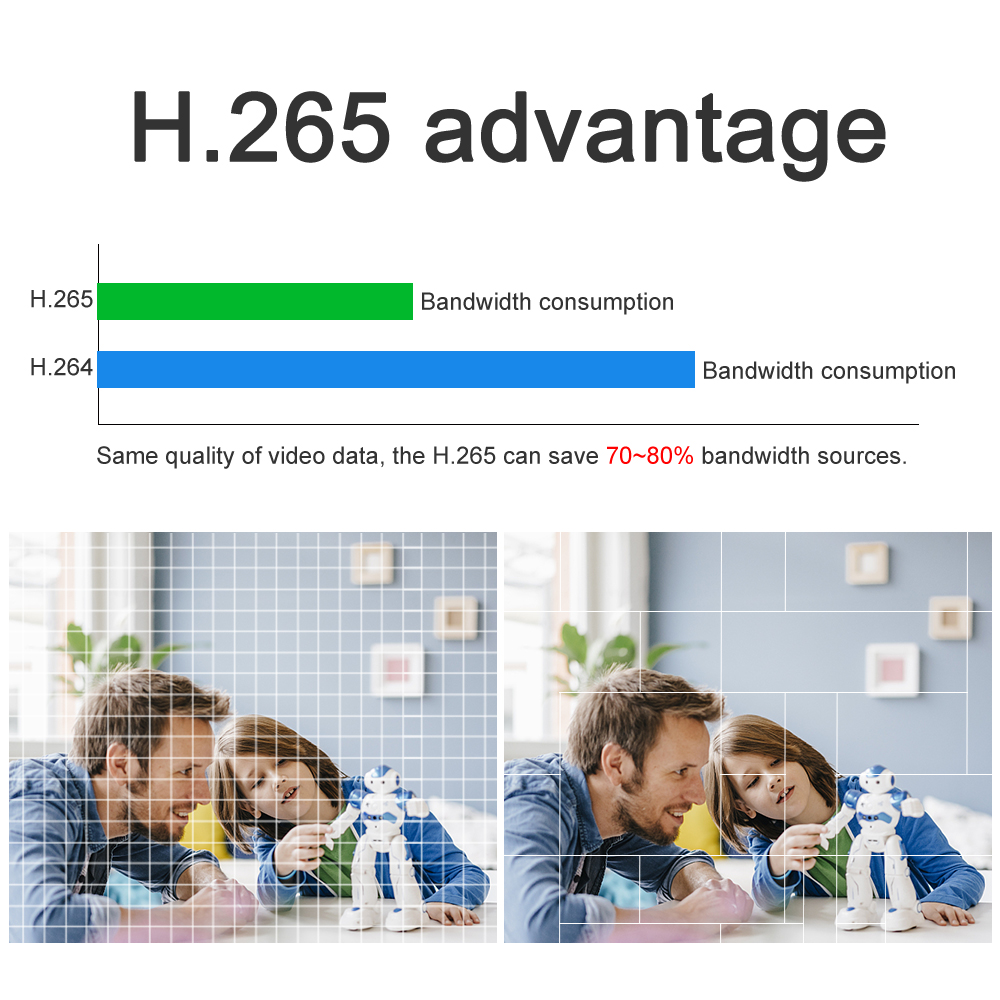

- Video Compression:H.265+, H.264+
- Image Enhancement:BLC/3D DNR/HLC
- Min. Illumination:0.0014 @ (F1.0, AGC ON), 0 Lux with Light
- Focus:Fixed
- Power Supply:12 VDC/PoE
- Support:24/7 full time color
- Certification:ce, FCC
VR
OEM All Hikvsion, Dahua and Uniview products ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!
Main Functions
Specifications
Camera | ||
Image Sensor | 1/1.8"Progressive Scan CMOS | |
Min. Illumination | 0.0014 @ (F1.0, AGC ON), 0 Lux with Light | |
Shutter Speed | 1/3 s to 1/100,000 s | |
Slow Shutter | Yes | |
DNR | 3D DNR | |
Wide Dynamic Range | 120 dB | |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
Lens | ||
Focal length | 2.8/4/6 mm | |
Aperture | F1.0 | |
Focus | Fixed | |
2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138° 4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115° 6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV: 67° | ||
Lens Mount | M16 | |
Illuminator | ||
White Light Range | Warm white LEDs (3000K), up to 30m | |
Compression Standard | ||
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 | ||
H.264 Type | Main Profile/High Profile | |
H.265 Type | Main Profile | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Smart Feature-set | ||
Behavior Analysis | Line crossing detection, intrusion detection, object removal detection, unattended baggage detection | |
Exception Detection | Scene change detection | |
Face Detection | Yes | |
Image | ||
Max. Resolution | 2688 × 1520 | |
Main Stream | 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) | |
Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) | |
Third stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement | BLC/3D DNR/HLC | |
Image Settings | Rotate mode, saturation, brightness,contrast,sharpness,sharpness,AGC, white balance adjustable by client software or web browser | |
Day/Night Switch | Day/Night | |
ROI (Region of Interest) | Support 1 fixed region for main stream and sub-stream separately | |
Audio (-U) | ||
Environment Noise Filtering | Yes | |
Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM | |
Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | |
Network | ||
Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR | |
Alarm Trigger | Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,watermark, IP address filter | |
Firmware Version | V5.5.82 | |
API | O N V I F (PROFILE S, PROFILE G), ISAPI | |
Simultaneous Live View | Up to 6 channels | |
User/Host | Up to 32 users 3 levels: Administrator, Operator and User | |
Client | iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 | |
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ | ||
Interface | ||
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button | Yes | |

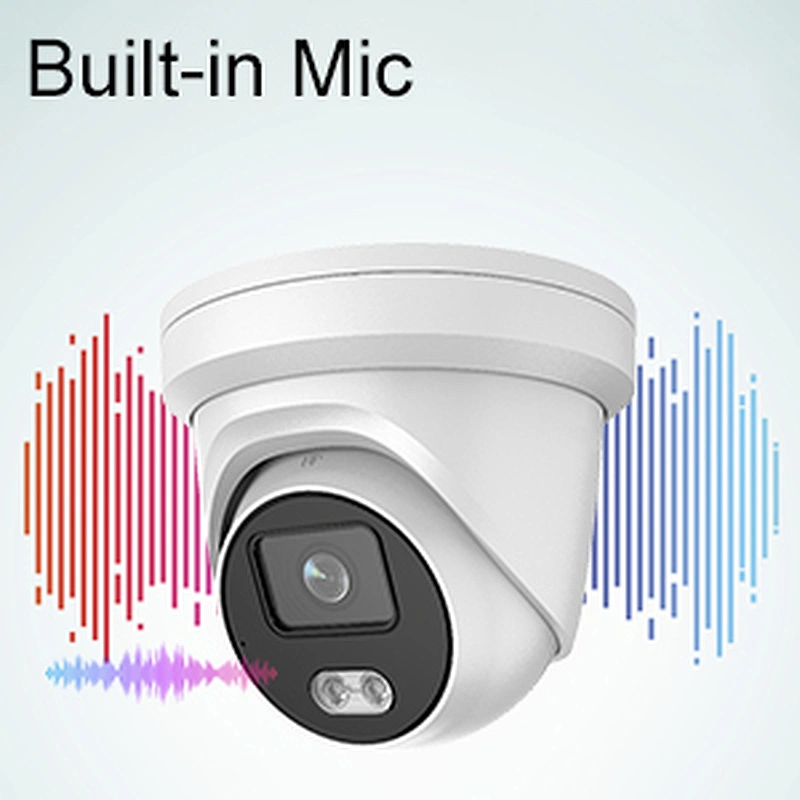

Audio (-U) | 1 audio input (built-in mic ), mono sound | |
General | ||
Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) | |
Power Consumption | 12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W | |

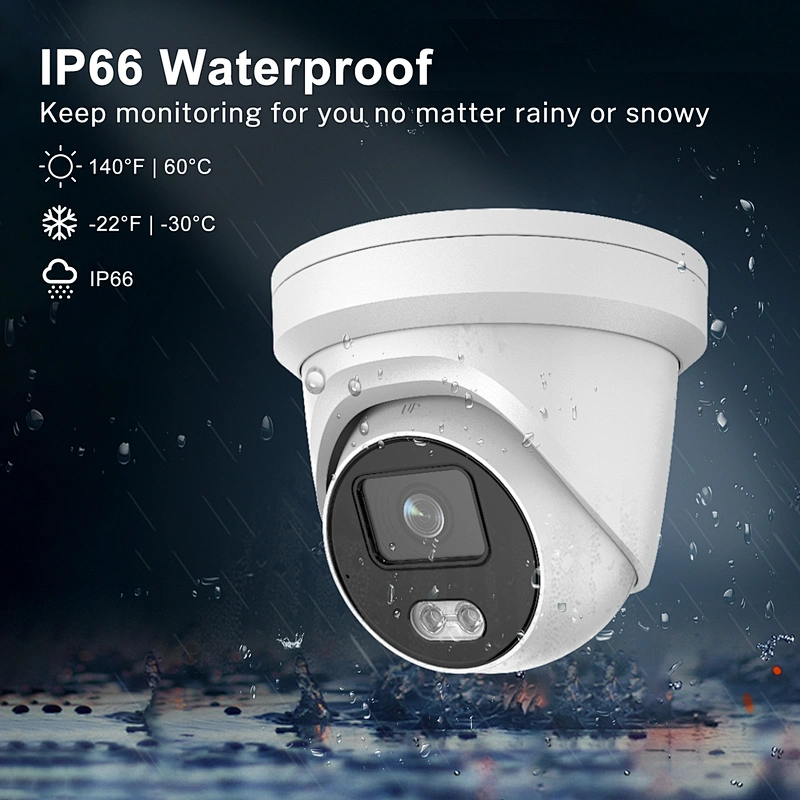

Protection Level | -L model: IP67 -LU model: IP66 | |
Material | Camera: Metal, trim ring: Plastic | |
Dimension | Camera: Φ 138.3 × 125.2 mm (Φ 5.4"× 4.9") With package: 170 × 170 × 150 mm (7"× 7"× 5.9") | |
Weight | Camera: 575 g (1.3 lb.) With package: 833 g (1.8 lb.) | |

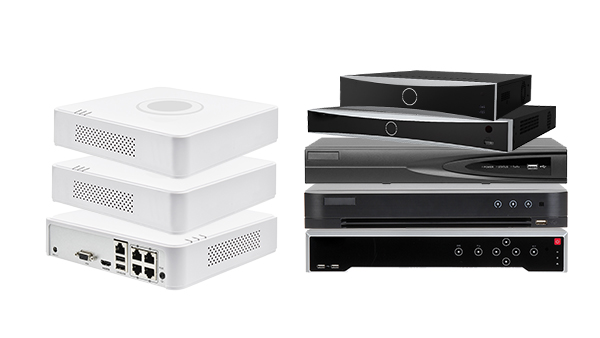

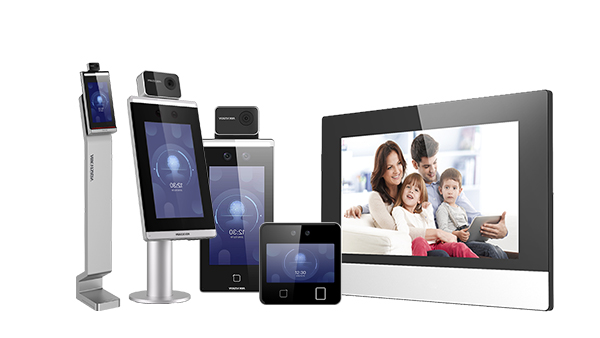

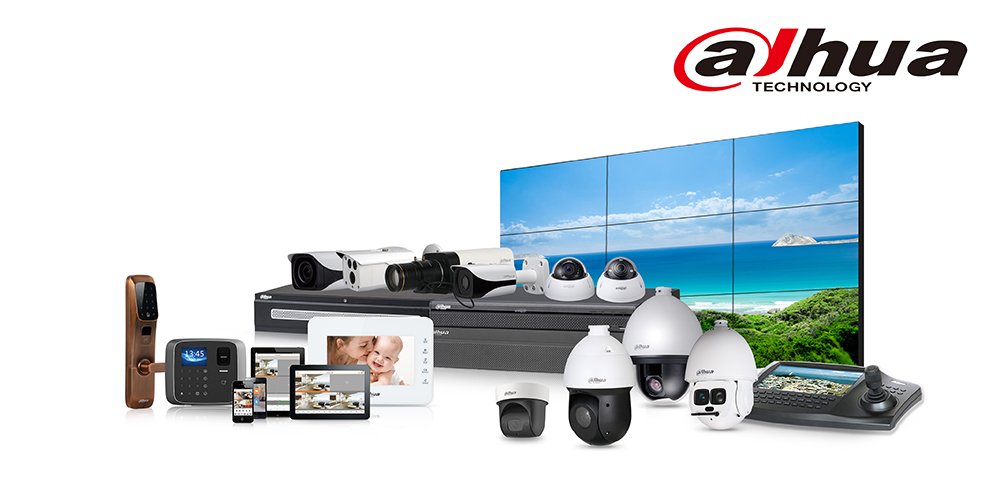

Hot Products

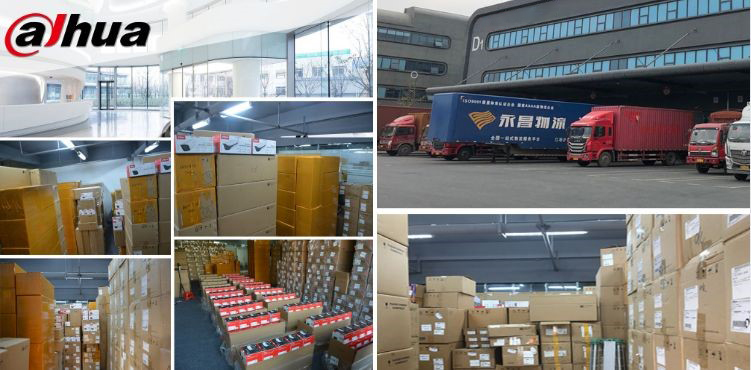

Company Profile

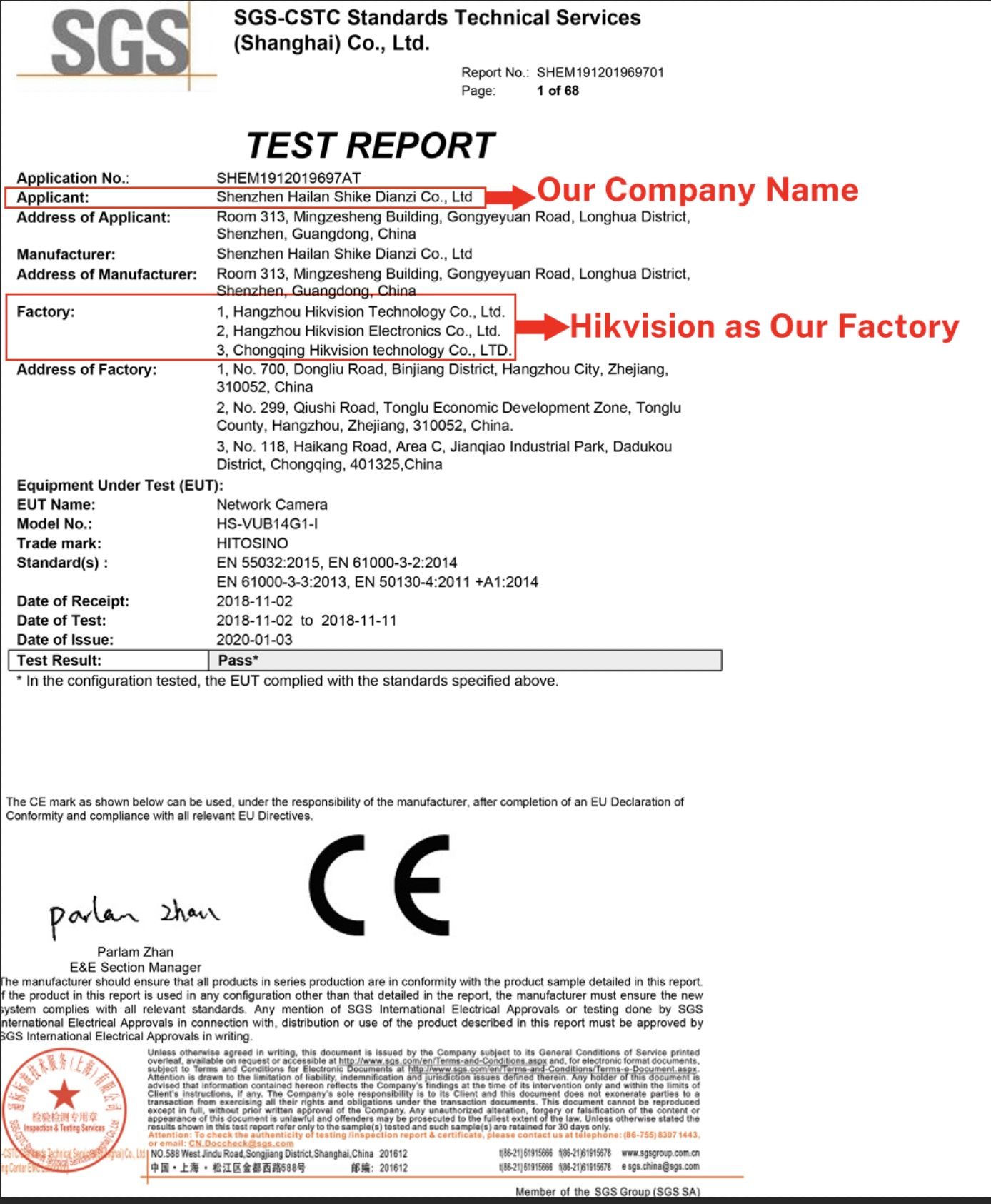

Certifications

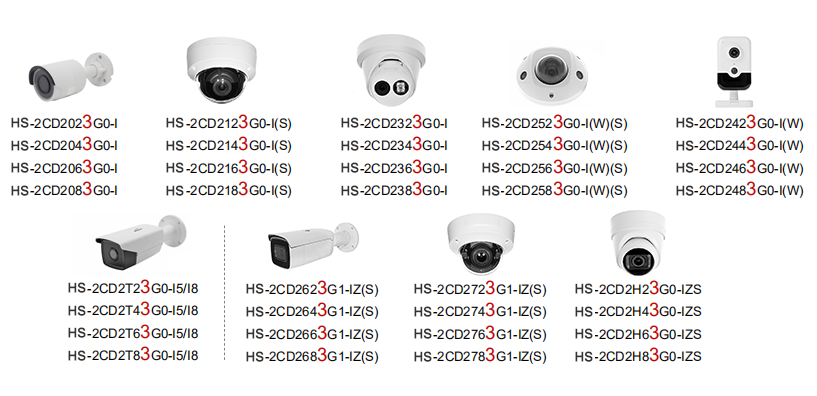

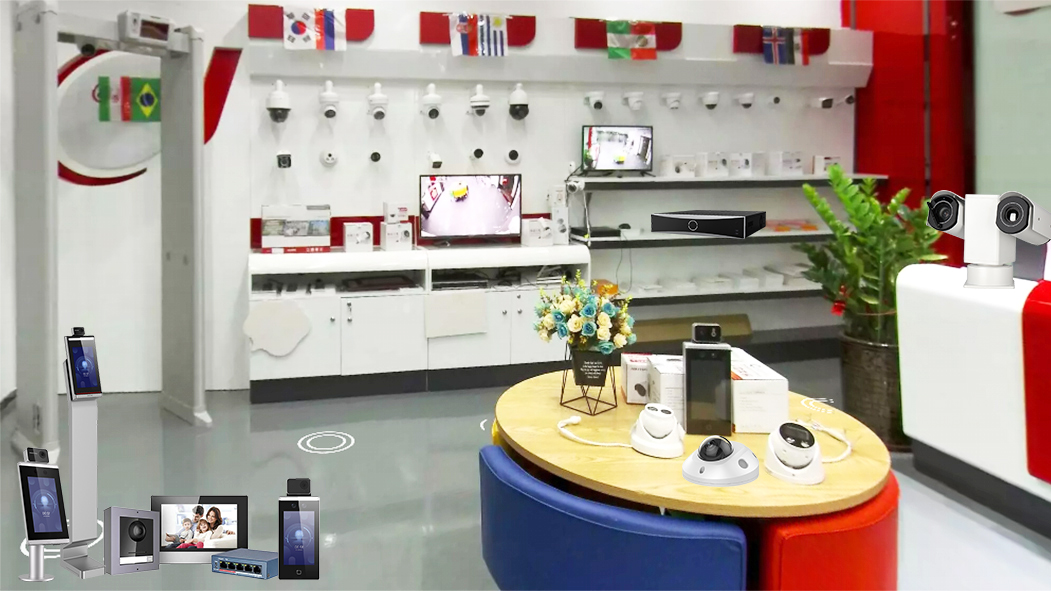

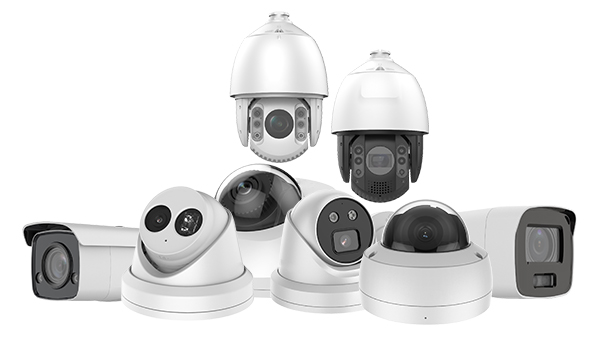

Product Showcase
FAQ
1.How can we confirm the products are genuine HV and DH English version?
HV and DH softwares can be downloaded from their official website, and only original products are fully compatible with the softwares.
2.Can you provide OEM service? Is there MOQ?
OEM is preferred, and in most cases, no MOQ is required.3、What payment method can your company provide ?
We accept Alibaba Trade Assurance Orders payment, via TT (Bank transfer), Western Union,Paypal and so on.
4.How is your after-sales service?
Most of our sales engineers and technicians have won HV HCSA certificate. And thanks to manufacturers' support, all issues can be solved timely and properly.5.Can I install the IP camera by myself?
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
6.Do you provide drop shipping service?
We will provide as many shipping options as possible, including DHL, UPS, TNT, FedEx and EMS, Airfreight and by Sea, and we also have third-party warehouse in US and AU, timely shipment can be arranged.
Any more information, please contact us via monitech.en.alibaba.comwe will provide more product information to you, Hope we will server to you. Thanks your support.
