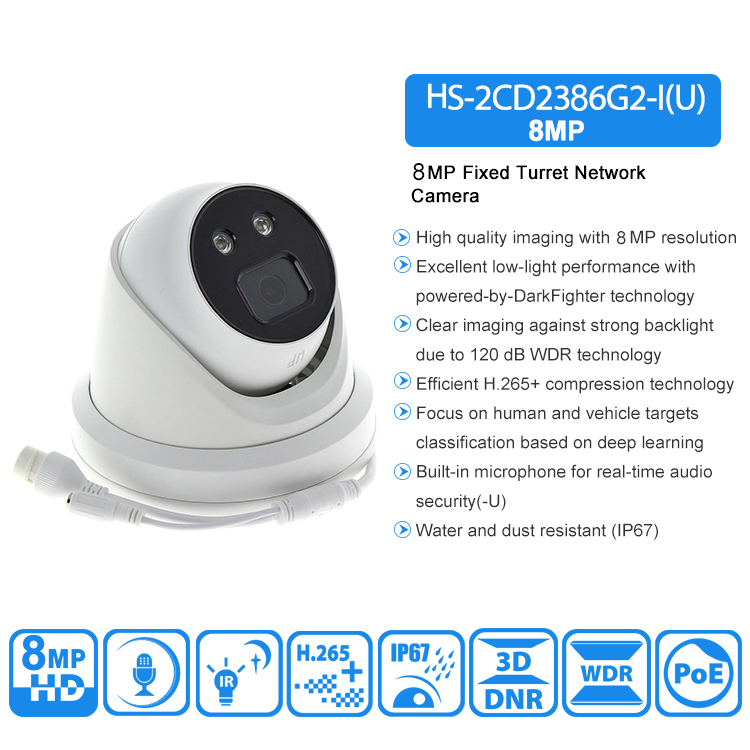

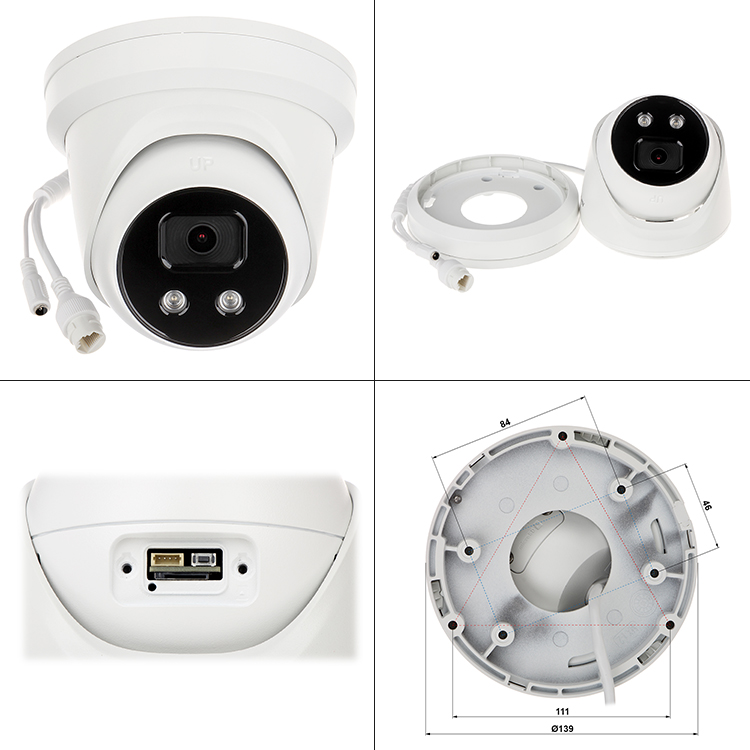

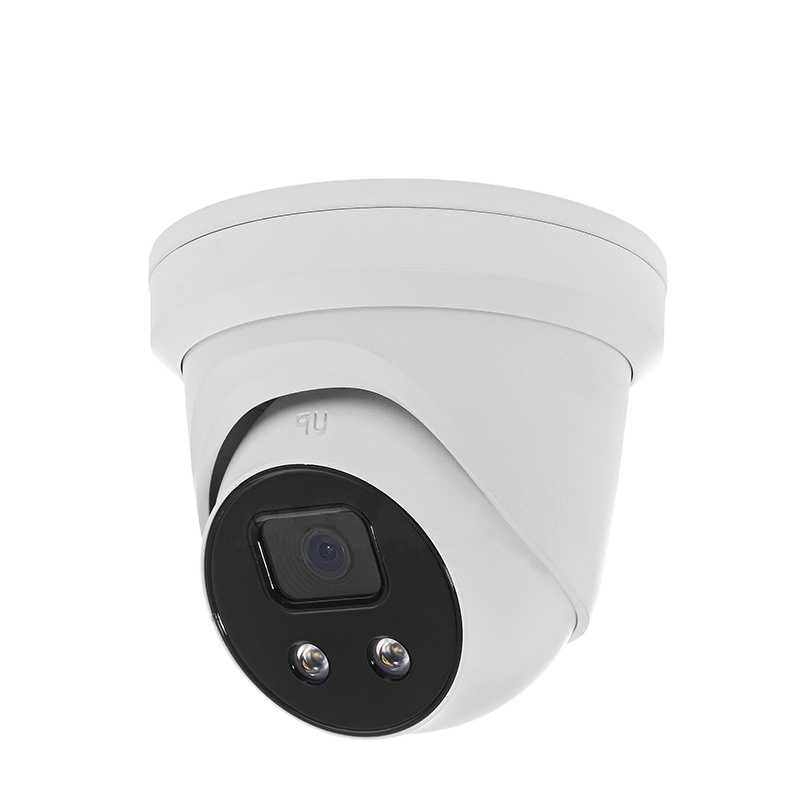

Hitosion 8MP Strobe Light Audio Alarm 4K camera de surveille IR Fixed Turret Network ip Camera

Hitosion 8MP Strobe Light Audio Alarm 4K camera de surveille IR Fixed Turret Network ip Camera

Model NO.: HS-2CD2386G2-I(U)
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:China
Brand Name:Hitosion
Model Number:HS-2CD2386G2-I(U)
Warranty:2 years, 2-years
Special Features:Motion Detection, Face detection, Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Sensor:CMOS
Style:Turret camera
Function:Waterproof / Weatherproof, NIGHT VISION, Built-in microphone for real-time audio security(-U)
Video Compression Format:H.265
Data Storage Options:Micro SD card, more
Application:Indoor, Outdoor
Customized support:Online technical support, Customized logo, OEM, ODM
Name:4K AcuSense Fixed Turret Network Camera
Feature:DarkFighter technology

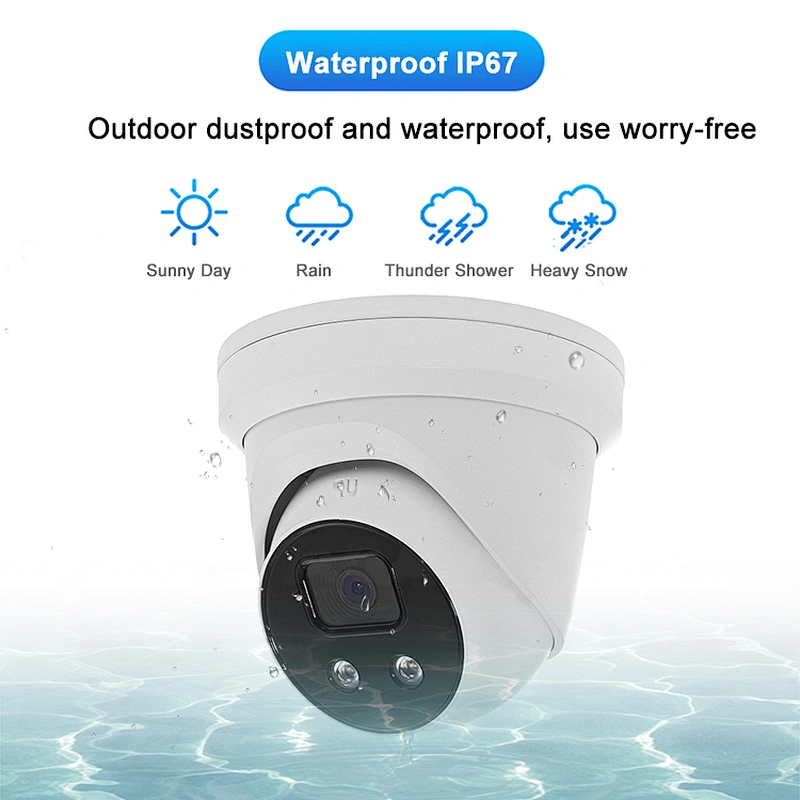

Waterproof:Water and dust resistant (IP67)

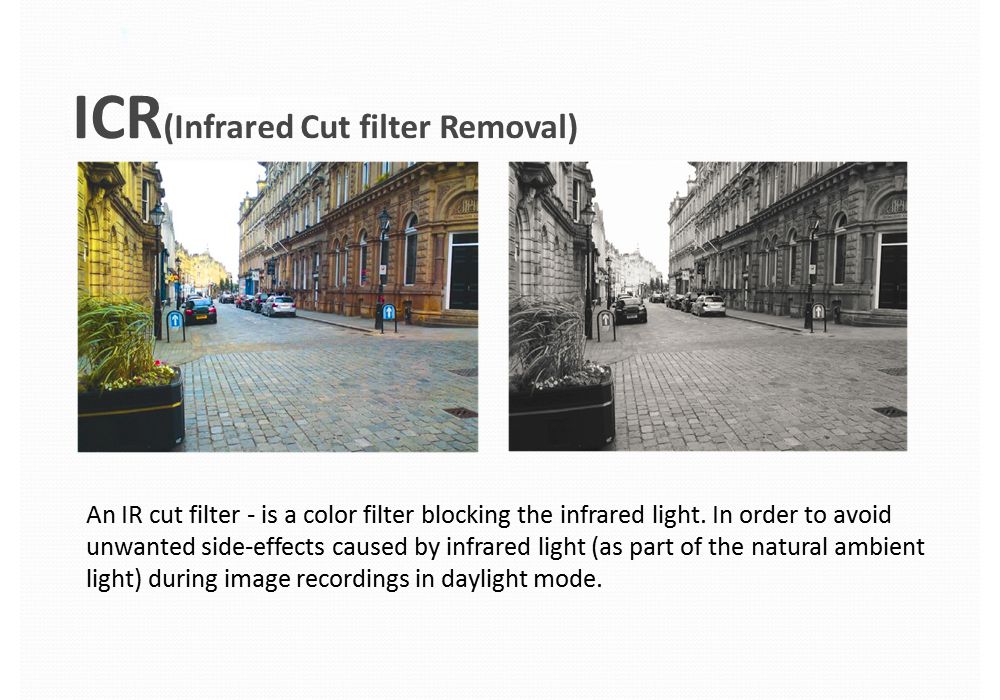

Day & Night:IR cut filter
ROI:1 fixed region for main stream and sub-stream
Face Capture:Yes
Perimeter Protection:Supports human and vehicle targets classification
IR Range:Up to 30 m
Certification:ce, FCC

Products Description

AcuSense

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

Hot Products

Specifications

Camera
Image Sensor	1/1.8"Progressive Scan CMOS
Min. Illumination	Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter

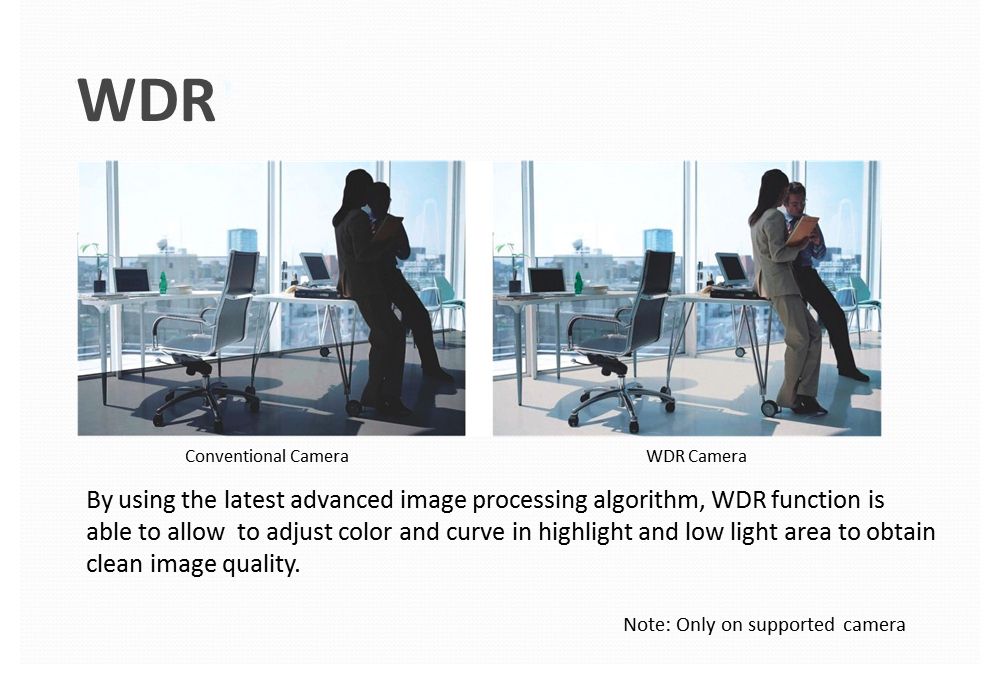

WDR	120 dB
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type	Fixed lens, 2.8/4/6 mm
Aperture	F1.6
FOV	2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120° 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8° 6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
Lens Mount	M16
Illuminator
IR Range	Up to 30 m
Wavelength	850 nm
Video
Max. Resolution	3840 × 2160
Main Stream	50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720)
	60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
Sub-Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
	60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

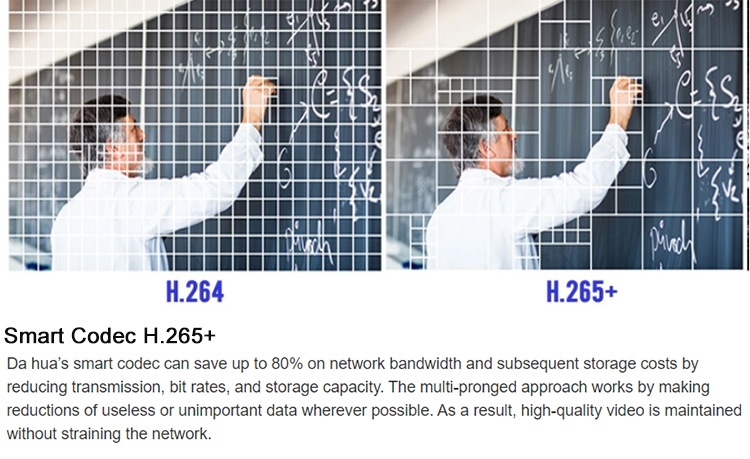

	Main stream: H.265+/H.264+/H.265/H.264
Video Compression	Sub-stream: H.265/H.264/MJPEG
	Third stream: H.265/H.264
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Scalable Video Coding (SVC)	H.264 and H.265 encoding support
	* When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
Audio(-U)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps- 320Kbps(MP3)
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Smart Event	Perimeter Protection: line crossing detection, intrusion detection, region entrance
	detection, region exiting detection (Human&Vehicle classification)
Face Capture	Yes
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP
	address conflict, illegal login, HDD full, HDD error), scene change detection
Linkage Method	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger capture

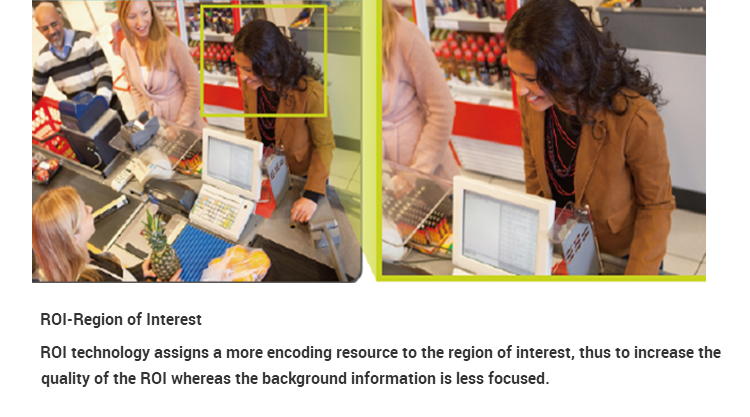

Region of Interest	1 fixed region for main stream, sub-stream and third stream

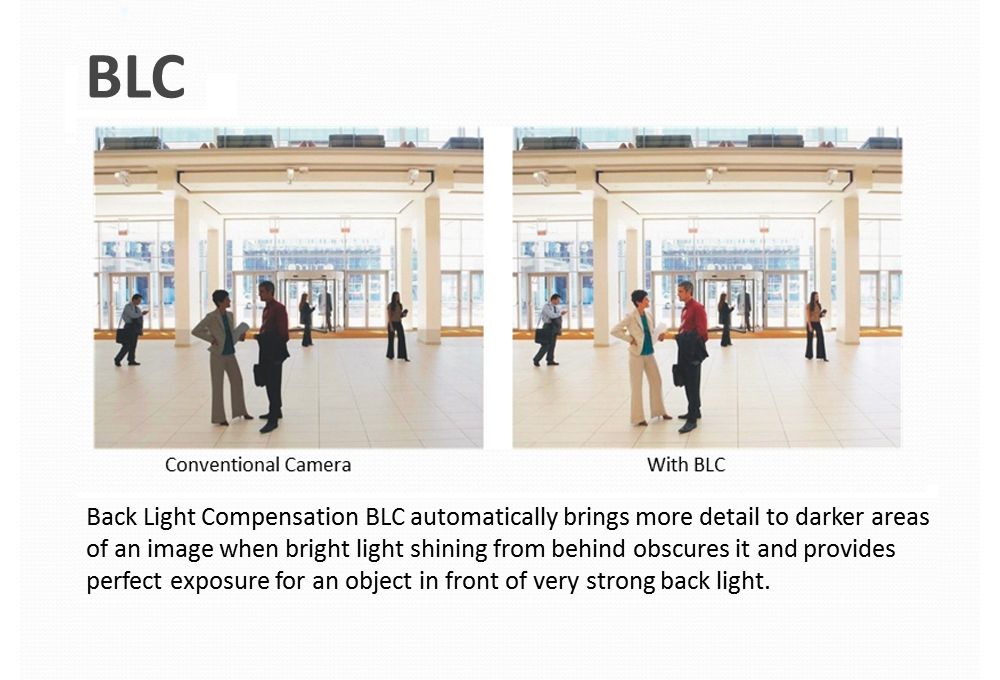

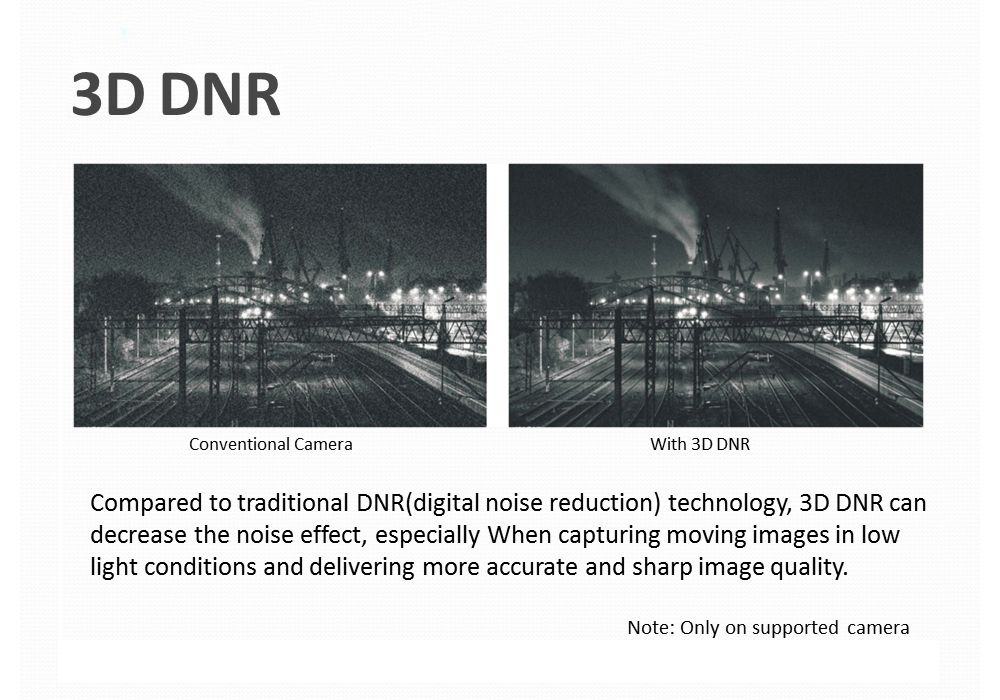

Image Enhancement	BLC, HLC, 3D DNR
Image Setting	Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP,
	SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,SSL/TLS
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication
Security	(EAP-MD5), watermark, IP address filter, basic and digest authentication for
	HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users, 3 levels: administrator, operator and user

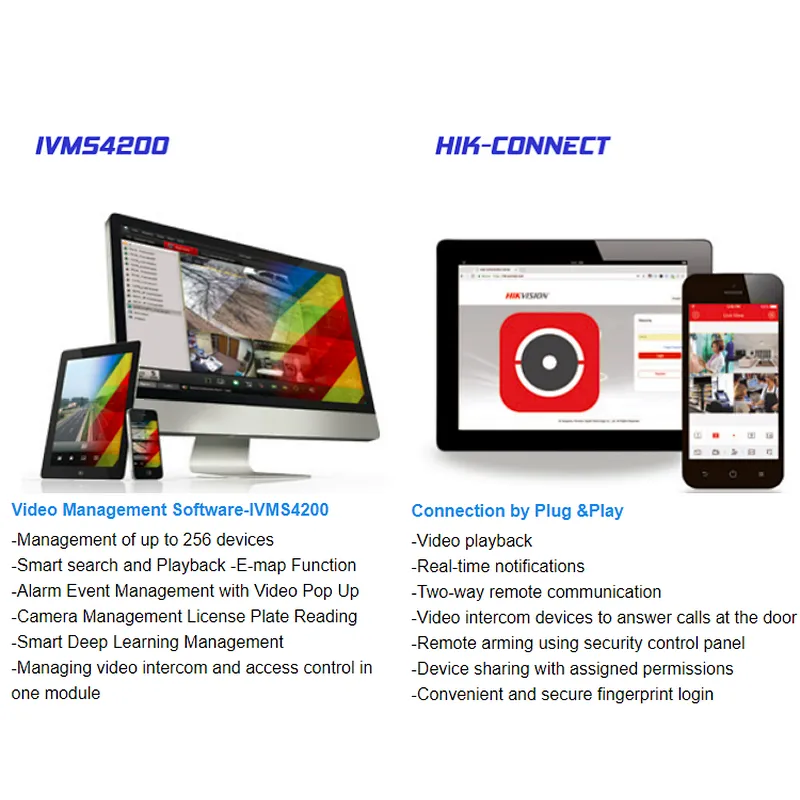

Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
	Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-U)	Built-in microphone
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
General
32 languages	English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
Web Client Language	French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
	Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
	Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function	Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Reset	Reset via reset button on camera body, web browser and client software
Startup and Operating	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Conditions
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Material	Camera body: metal, trim ring: plastic
Dimensions	Camera: Φ 138.3 × 126.3 mm (Φ 5.4"× 5")
	With package: 170 × 170 × 150 mm (7"× 7"× 5.9")
Weight	Camera: approx. 740 g (1.6 lb.)
	With package: approx. 1060 g (2.3 lb.)
Approval
	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
EMC	61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
	(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
Safety	1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA
	(IEC/EN 60950-1)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	Ingress protection: IP67 (IEC 60529-2013)

Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.

Available ModelHS-2CD2386G2-I (2.8 mm) HS-2CD2386G2-I (4 mm) HS-2CD2386G2-I (6 mm) HS-2CD2386G2-IU (2.8 mm) HS-2CD2386G2-IU (4 mm) HS-2CD2386G2-IU (6 mm)

Company Profile

Shenzhen HaiLan ShiKe Electronics Co.,Ltd, established in 2015, is a young, creative and energetic company . We have two own brands Hitosino and Valucam,with a strong focus on service, as well as a commitment to providing innovative, high quality and
competitively priced products .Product including Oem Hk / Da hua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We are pleasure that can provide high quality product for you,Looking forward to work with you.

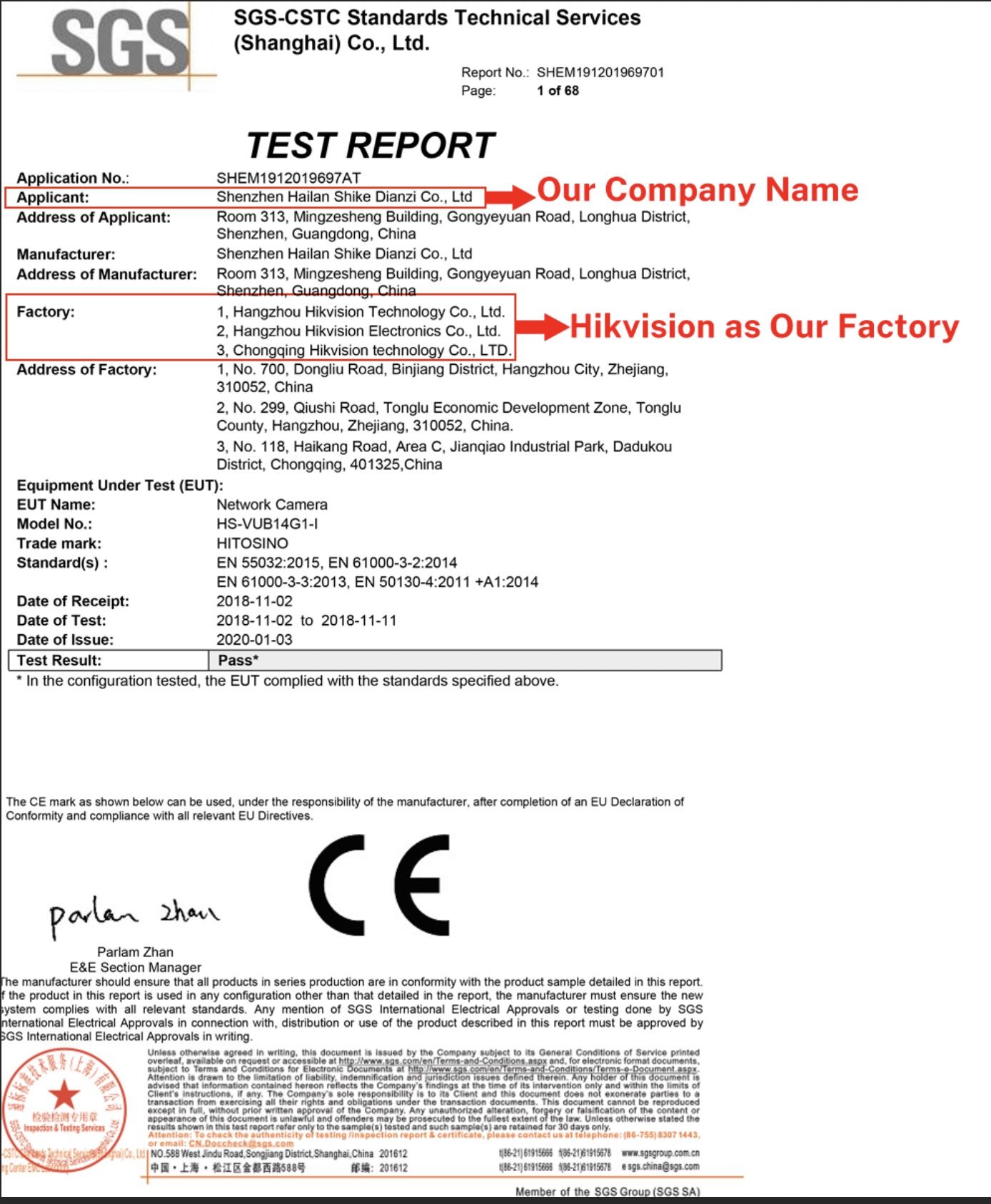

Certifications

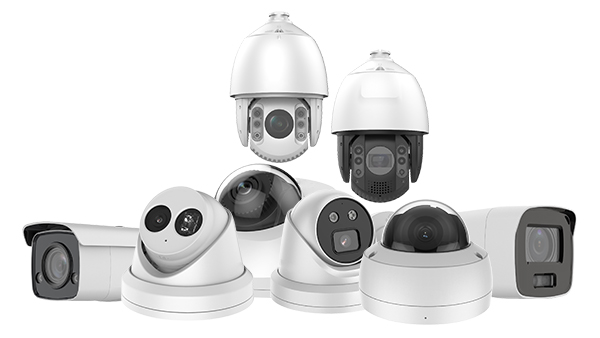

Product Showcase

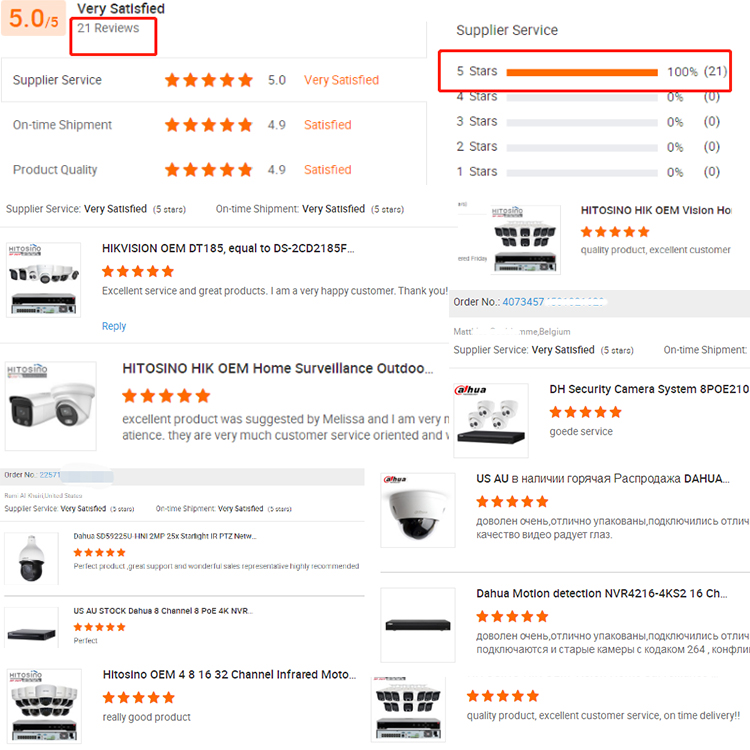

Customer Reviews
