- Place of Origin:Zhejiang, China
- Brand Name:HV

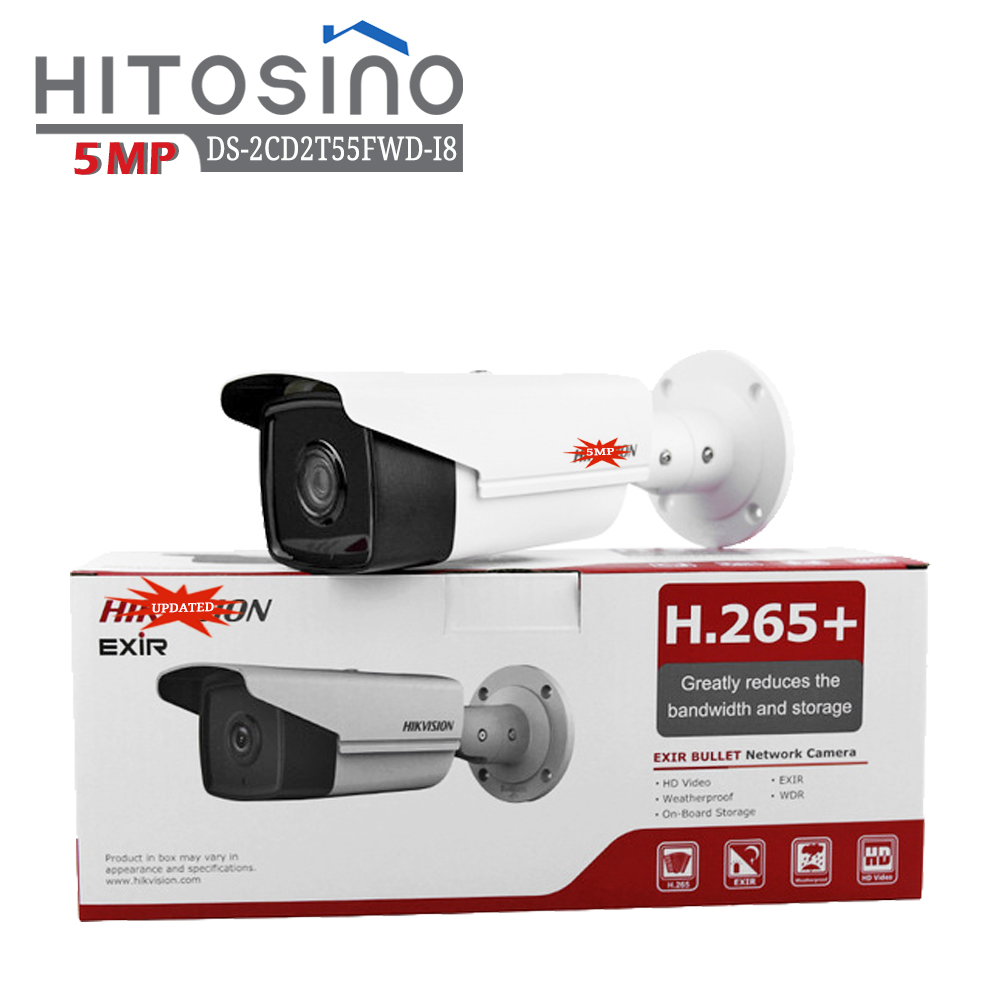

- Model Number:DS-2CD2T55FWD-I8
- Special Features:Waterproof / Weatherproof
- Sensor:CMOS
- Video Compression Format:H.265, H.264
- Data Storage Options:More
- Image Sensor:1/2.9"Progressive Scan CMOS
- Resolution:2944 X 1656
- WDR:BLC/3D DNR/ROI/HLC
- Lens:2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
- Day& Night:IR Cut Filter
- Video Compression:H.265, H.265+, H.264+, H.264
- Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
- Protection Level:IP67
- IR Range:up to 80 m

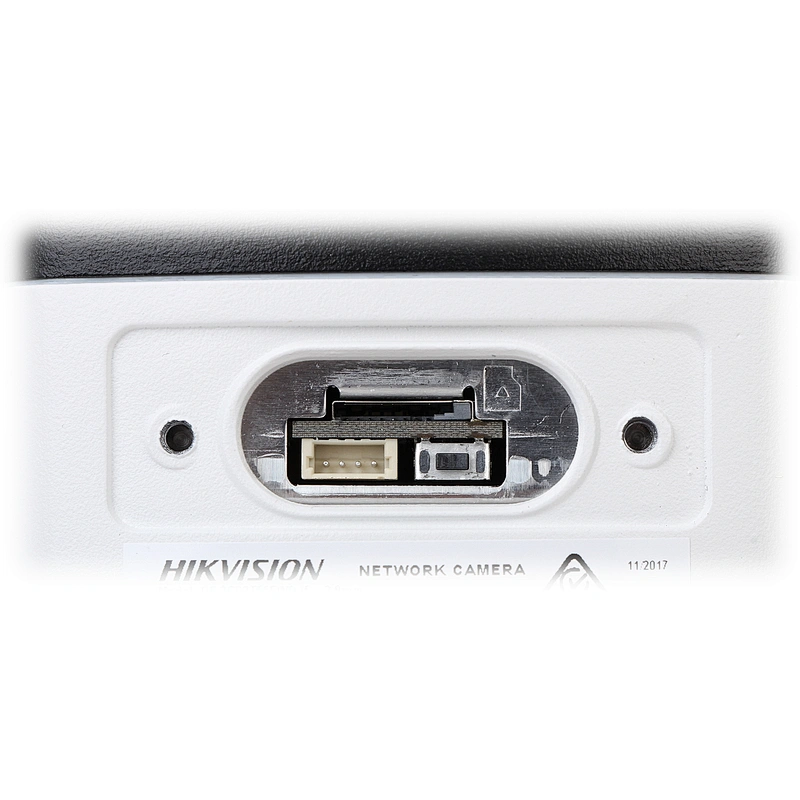

- On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Products Description
Camera：2CD2T55FWD-I8 | ||
Image Sensor | 1/2.9"Progressive Scan CMOS | |
Signal System | PAL/NTSC | |
Min. Illumination | Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON), 0 lux with IR | |
Shutter time | 1/3 s to 1/100,000 s | |
Lens | 2.8 mm, horizontal field of view: 97° 4 mm, horizontal field of view: 78° 6 mm, horizontal field of view: 60° 8 mm, horizontal field of view: 39.5° 12 mm, horizontal field of view: 19° | |
Lens Mount | M12 | |
Adjustment Range | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° | |
Focus | Fixed | |
Compression Standard | ||
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate | 32Kbps~16Mbps | |
Triple Streams | Yes | |
Image | ||
Max. Image Resolution | 2944 × 1656 | |
Frame Rate | 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser | |
ROI | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch | Day/Night | |
Network | ||
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI | |
Mobile Access | HIKVISION HIK-CONNECT | |
VCA Smart Feature
Motion Detection
If there is any motion in the configured detection area, the camera will automatically detect the event and can trigger preconfigured alarms or recording. Users can set sensitivity level, detection area, and arming schedule accordingly.

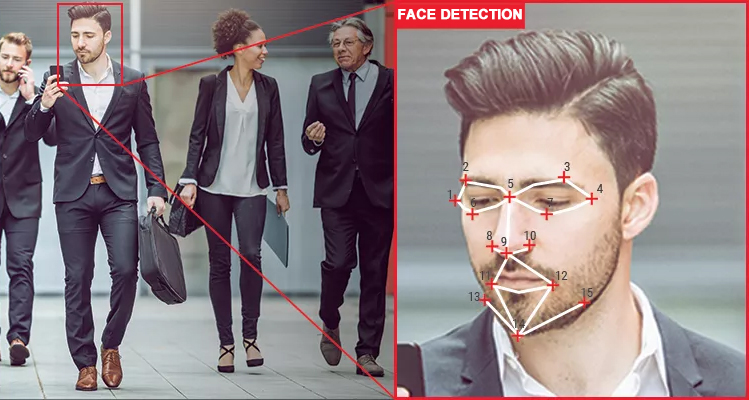

Face Detection
Human face that appears in the image can be detected and trigger linkage method
Intrusion Detection
Used to identify when a moving object enters and remains in a specified area for a period of time deemed unacceptable, such as an individual stepping over a partition in a museum.
Line crossing detection
Used to detect when a moving object passes through the camera's field of view in a specified direction, such as an individual entering into a restricted area from the exit doorway.
Scene change detection
Used to detect the change of surveillance environment affected by the external factors; such as the intentional rotation of the camera, and certain actions can be taken when the alarm is triggered.
Unattended baggage detection
Used to identify motionless objects that have been left behind by a moving object such as a suspicious package placed on a city street.

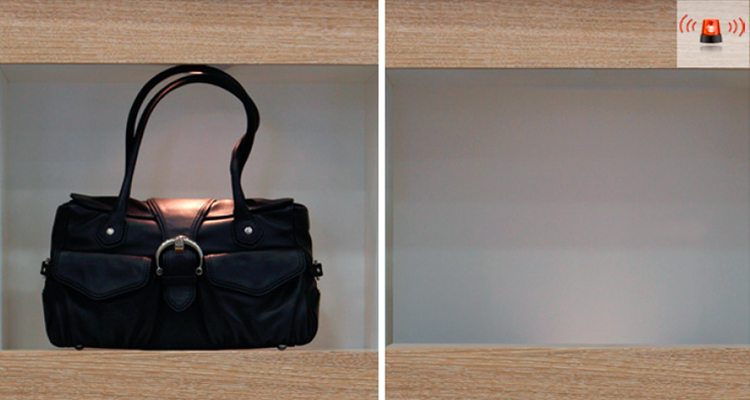

Object removal detection
Used to identify the removal of a static object from a designated area, such as a priceless painting in a museum/gallery.

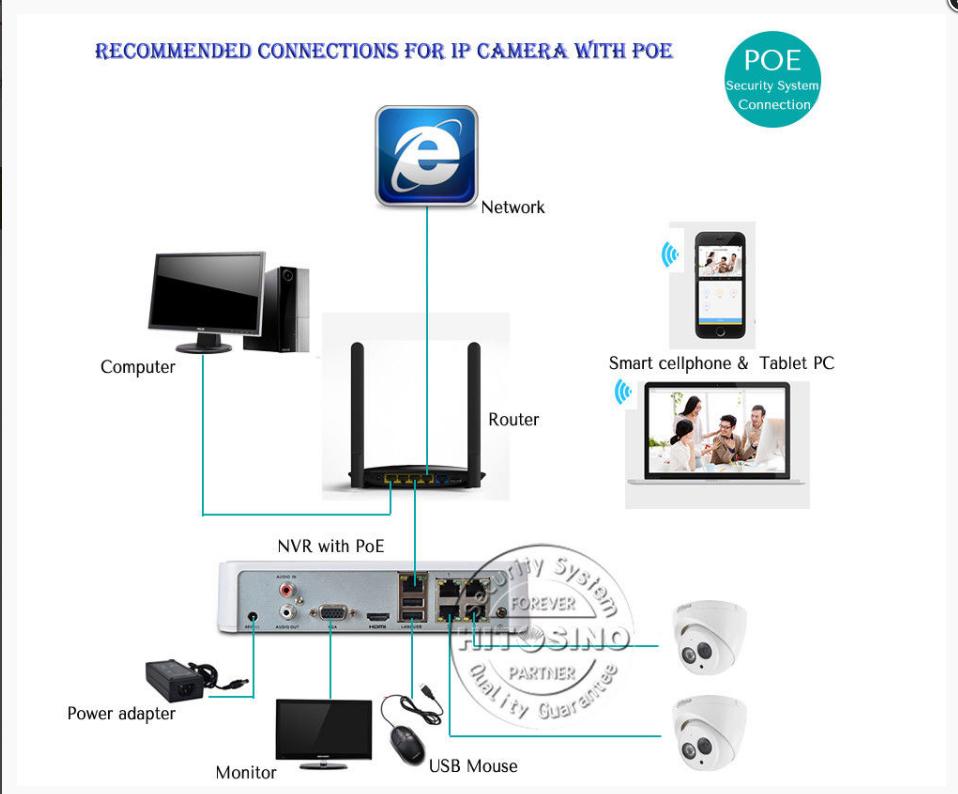

Connection Diagram
Company Profile
Shenzhen HaiLan ShiKe Electronics Co.,Ltd, established in 2015, is a young, creative and energetic company . We have two own brands Hitosino and Valucam,with a strong focus on service, as well as a commitment to providing innovative, high quality and competitively priced products .Product including Hik vision / Dahua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We will is the ideal partner for your continuously developing business.

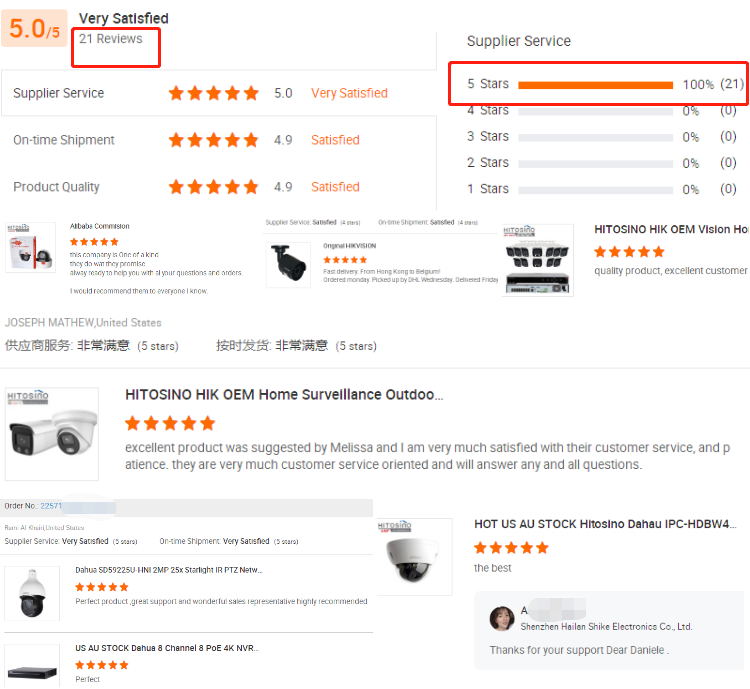

Customer Reviews
