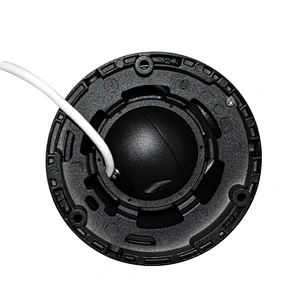

cctv camera with recording 2CD2385FWD-I 8MP 4K IP videocamaras de seguridad IR 30m camera de surveillance full hd

cctv camera with recording 2CD2385FWD-I 8MP 4K IP videocamaras de seguridad IR 30m camera de surveillance full hd

Model NO.: DS-2CD2385FWD-I
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:Zhejiang, China
Brand Name:Hik
Model Number:DS-2CD2385FWD-I
Special Features:Waterproof / Weatherproof
Sensor:CMOS
Video Compression Format:H.265, H.264
Data Storage Options:More
Image Sensor:1/2.5"Progressive Scan CMOS
Resolution:3840*2160 4K camera
WDR:BLC/3D DNR/ROI/HLC Face Detection
Lens:2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
Feature:3-Axis Adjustment ip camera
Video Compression:H.265, H.265+, H.264+, H.264
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Protection Level:IP67 Weatherproof
IR Range:Up to 30m, Night vision Kamera
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Top Concerns You Might Have

Deep Cooperation with

Hik /Dahua/Uniview:

Our products are backed up with:

At Least2-yearWarranty;

OEM/ODMService;

Outstanding Technical Support;

Value-addedServices;

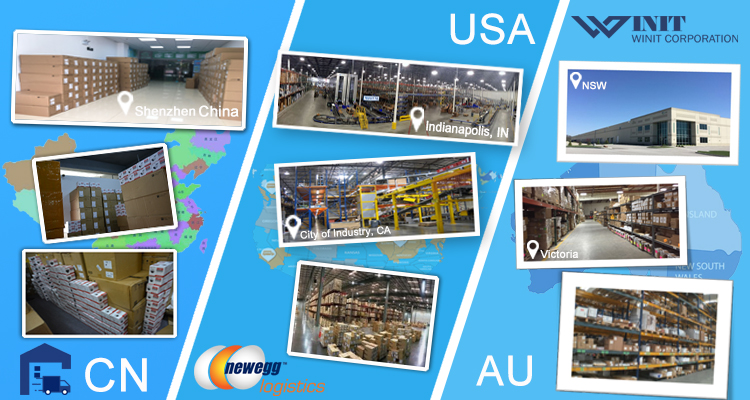

Sufficient Stock:

Sufficient stock in Shenzhen and third-party warehouses in US& AU ensuretimely and safe deliveryto customers. For products in stock, shipment will be able to arranged on the same/ second working day.

Advanced CRM System

Based on our advanced CRM system, flexible relateswill be provided to our long-term valued customers who meet certain sales target each year from the date of signing “Reseller Agreement”.

If you want to know more ,please click to contact us.

VCA Smart Feature

Motion Detection

Program this camera with up to four different motion zones using your NVR or separately. These zones can be customized to adjust the sensitivity. So more important areas, like a doorway, can be adjusted so that any movement at all will trigger recording (or create a motion event), while other sections of the frame, like a tree, would need a much higher level of motion.

Face Detection

Human face that appears in the image can be detected and trigger linkage method

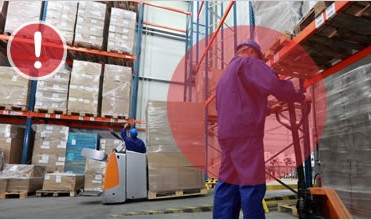

Intrusion Detection

Used to identify when a moving object enters and remains in a specified area for a period of time deemed unacceptable, such as an individual stepping over a partition in a museum.

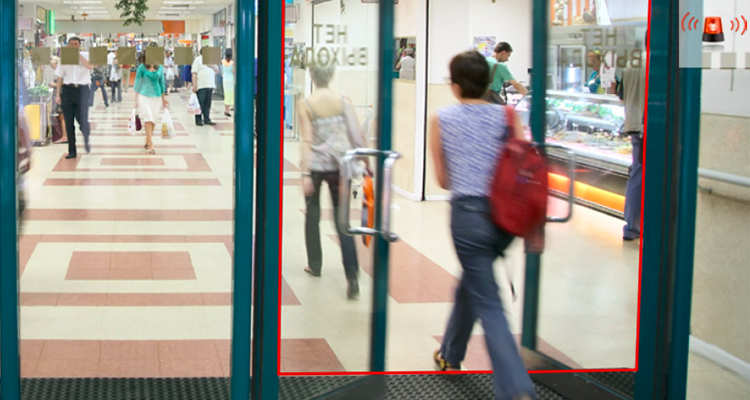

Line crossing detection

Used to detect when a moving object passes through the camera's field of view in a specified direction, such as an individual entering into a restricted area from the exit doorway.

Scene change detection

Used to detect the change of surveillance environment affected by the external factors; such as the intentional rotation of the camera, and certain actions can be taken when the alarm is triggered.

Unattended baggage detection

Used to identify motionless objects that have been left behind by a moving object such as a suspicious package placed on a city street.

Object removal detection

Used to identify the removal of a static object from a designated area, such as a priceless painting in a museum/gallery.

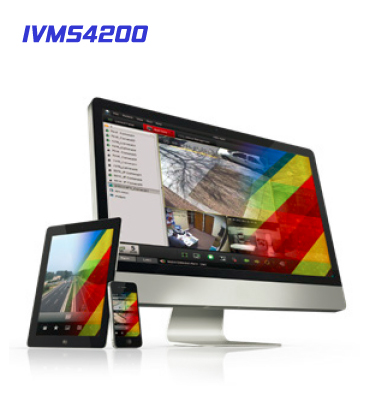

Video Management Software-IVMS4200

-Management of up to 256 devices

-Smart search and Playback -E-map Function

-Alarm Event Management with Video Pop Up

-Camera Management License Plate Reading

-Smart Deep Learning Management

-Managing video intercom and access control in one module

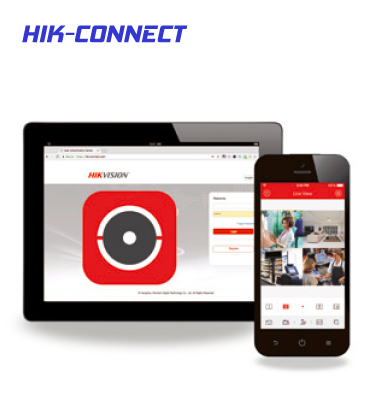

Connection by Plug &Play

-Video playback

-Real-time notifications

-Two-way remote communication

-Video intercom devices to answer calls at the door

-Remote arming using security control panel

-Device sharing with assigned permissions

-Convenient and secure fingerprint login

Details Images

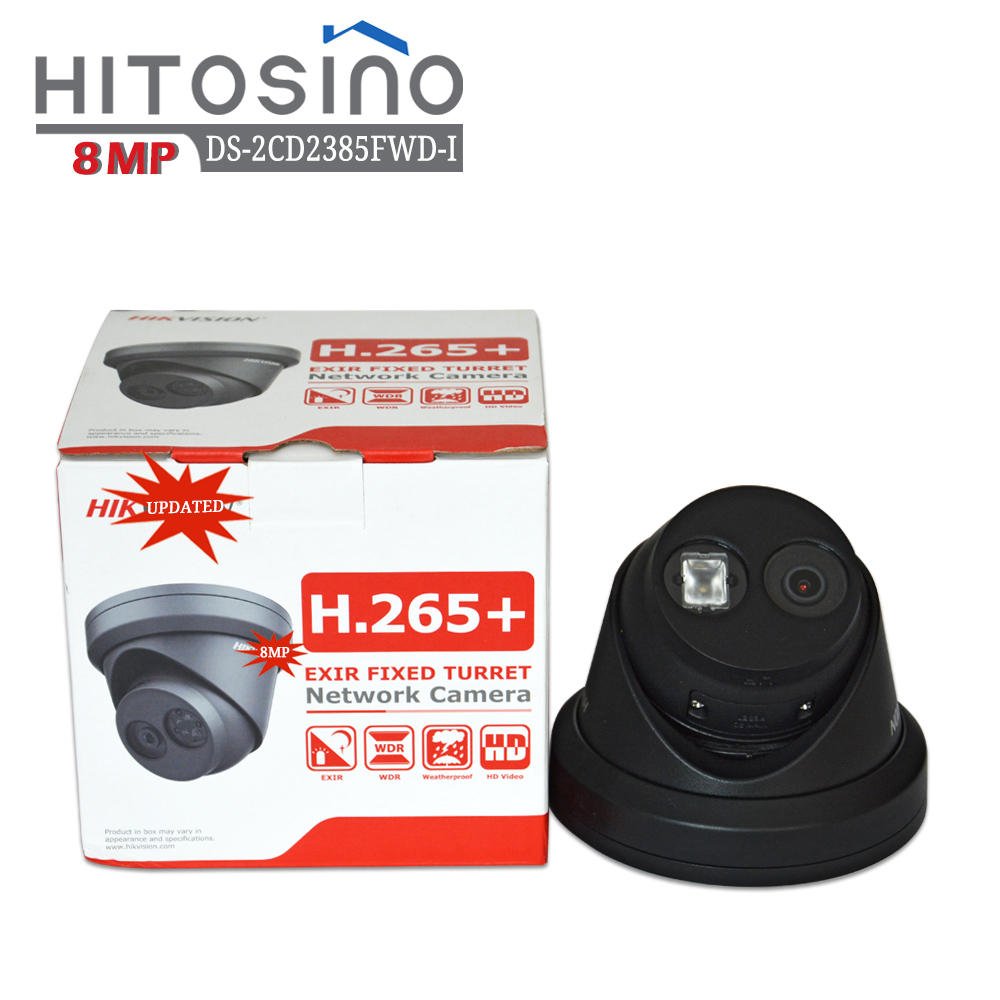

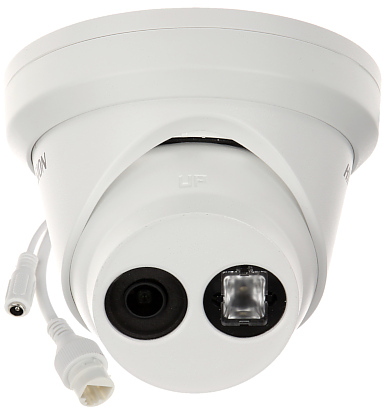

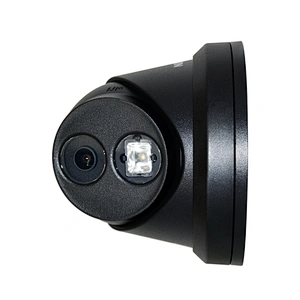

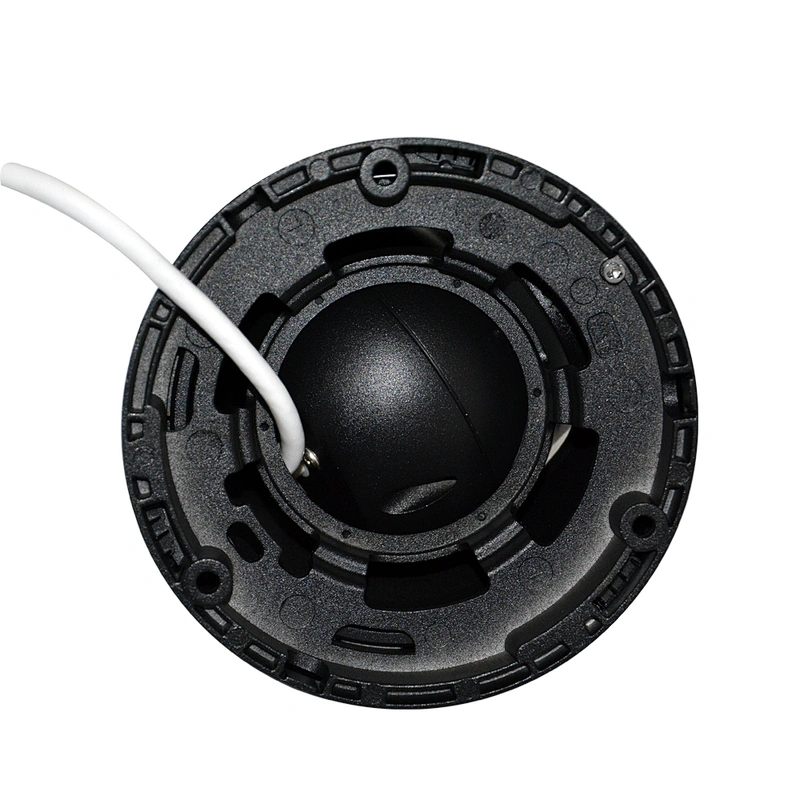

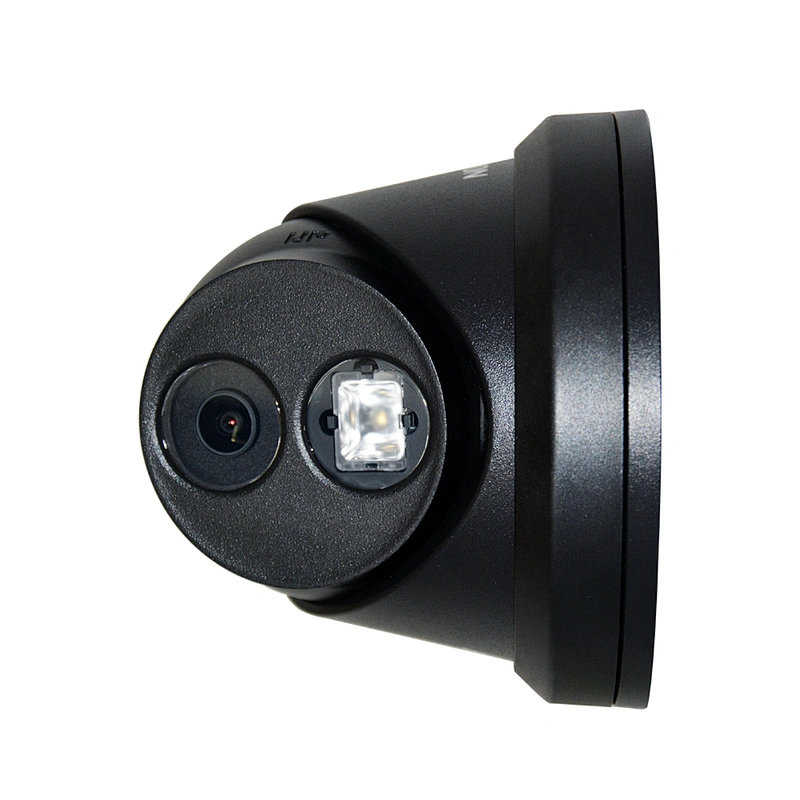

Camera DS-2CD2385FWD-I Turret POE IR 8MP Fixed IP Camera Black
Image Sensor	1/2.5"Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON), 0 lux with IR
Shutter time	1/3 s to 1/100,000 s
Lens	2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23°
Lens Mount	M12
Adjustment Range	Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Adjustment Range	Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Fixed
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate	32Kbps~16Mbps
Triple Streams	Yes
Max. Image Resolution	3840 × 2160
Frame Rate	50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface

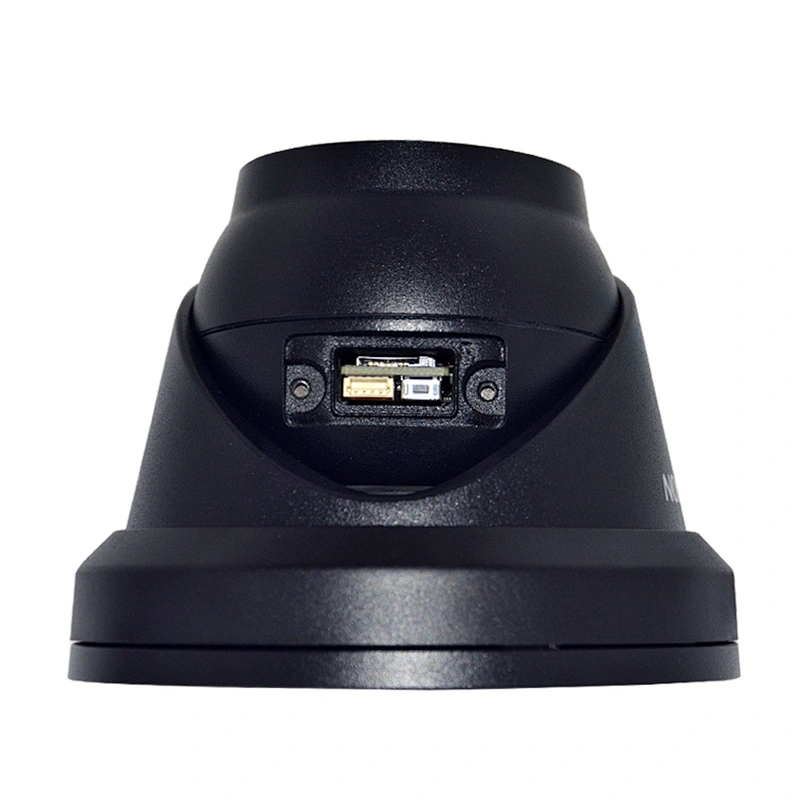

On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	12 VDC ± 25%, 6.5 W PoE(802.3af, 36 – 57V, class 3), 8.5 W
Weather Proof	IP67
IR Range	Up to 30m

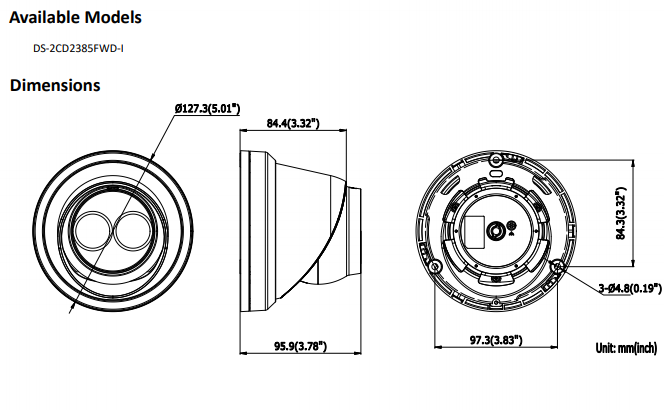

Dimensions	Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″) Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight	620 g (1.37 lb.)

Ultra 4K HD resolution IP Network Camera

This 4K resolution security camera contains 4× the amount of pixels as a 1080p security camera. This 4K camera can record at a pixel ratio of 3840 x 2160.

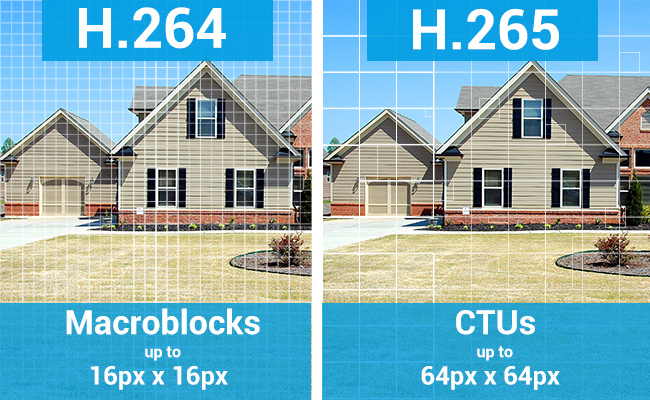

Innovative codec Hik H.265 +

H.265 + is a video encoding system that is an extension of the technology used in H.265 / HEVC.

H.265+ allows you to:

-Optimize the Basic Functions of the Camera;

-Allows Better Use of Network Bandwidth;

-Significantly Reduces Interference

Guarantees Long-term Archiving of Recordings Without Compromising Image Quality.

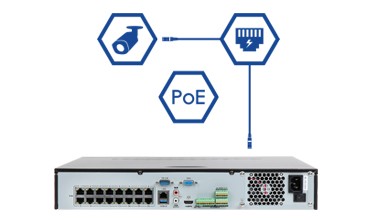

Plug&Play

All that this security camera requires to connect it to a compatible Hik or Hitosino NVR is a single Cat5e ethernet cable. This all-in-one cable provides video transmission, and power to the camera, and a stable network connection.

Up to 20 fps@3840 × 2160 and 30fps@ 3072 × 1728 under NTSC

Choose to record 4K resolution at 20 frames-per-second or record at a real-time 30 FPS rate at 5MP resolution. Recording at 30 FPS will provide you with exceptionally smooth on-screen movement and provide you with more frames to choose from when cycling through footage.

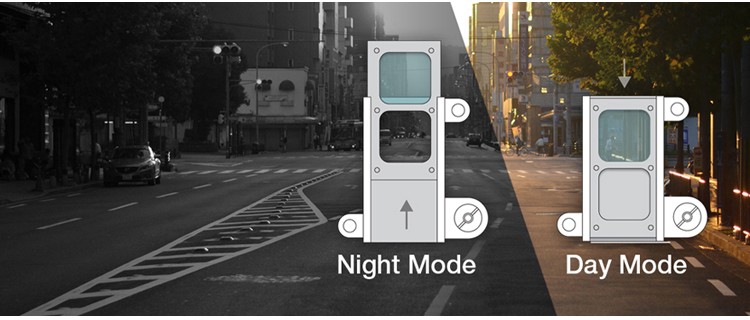

ICR -IR Cut Filter Removable

At night or under low illumination scenes, the cameraswitch from color mode to B/W mode automatically, which can improve low-light performance effectively.

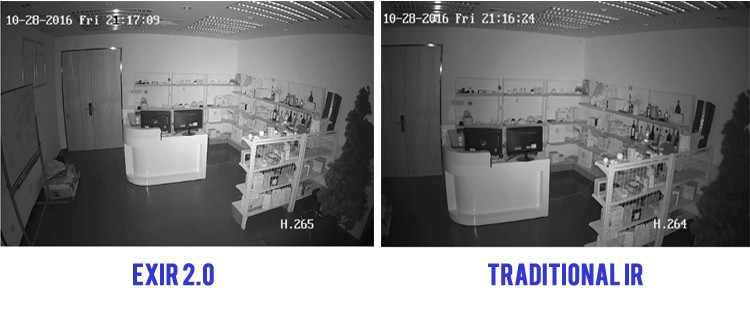

EXIR 2.0

Infrared lamps EXIR 2.0 are an innovative technology that uses the latest type of highly efficient IR LED series EXIR.Compared with the traditional generation, EXIR 2.0 has better heat dissipation and increased lifespan of up to 20,000 hours.

Original Image

BLC and WDR are off.

BLC-Back Light Compensation

If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make it clear.

WDR-Wide Dynamic Range.

WDR cameras often incorporate an image sensor that takes different exposures of a scene and combine them into one image, enabling objects in both bright and dark areas of a scene to be visible.

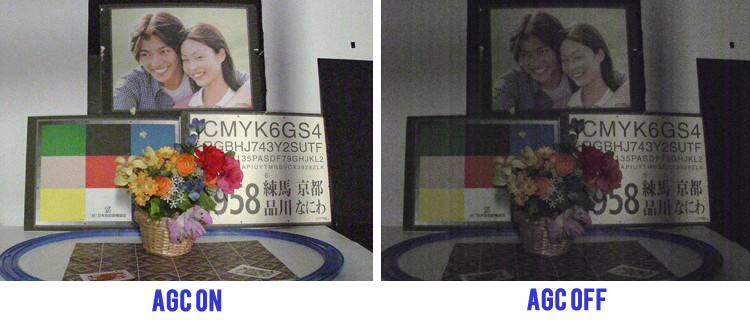

AGC - Automatic Gain Control

It amplifies the signal to make the image brighter during night time. This amplification is called gain. The camera can auto adjust the gain control according to the signal level.
