- Place of Origin:Zhejiang, China
- Brand Name:HV
- Model Number:2CD2343G0-I(U)
- Warranty:2 years
- Special Features:Waterproof / Weatherproof
- Sensor:CMOS
- Style:Turret Camera
- Function:NIGHT VISION
- Video Compression Format:H.265
- Data Storage Options:More
- Application:Outdoor, Indoor
- Customized support:Online technical support, Customized logo, OEM, ODM
- Image Sensor:1/3"Progressive Scan CMOS
- Resolution:2688 X1520@30fps
- Video Compression:H.265+, H.265, H.264+, H.264
- Day& Night:IR cut filter with auto switch
- Image Enhancement:BLC/3D DNR/ROI/HLC
- WDR:120dB,3DNR
- Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
- IR Range:Up to 30m IR Camera
- Weather Proof:IP67 weatherproof camera
- System Compatibility:ON VIF (Profile S, Profile G),ISAPI
- Certification:ce, FCC
Specifications

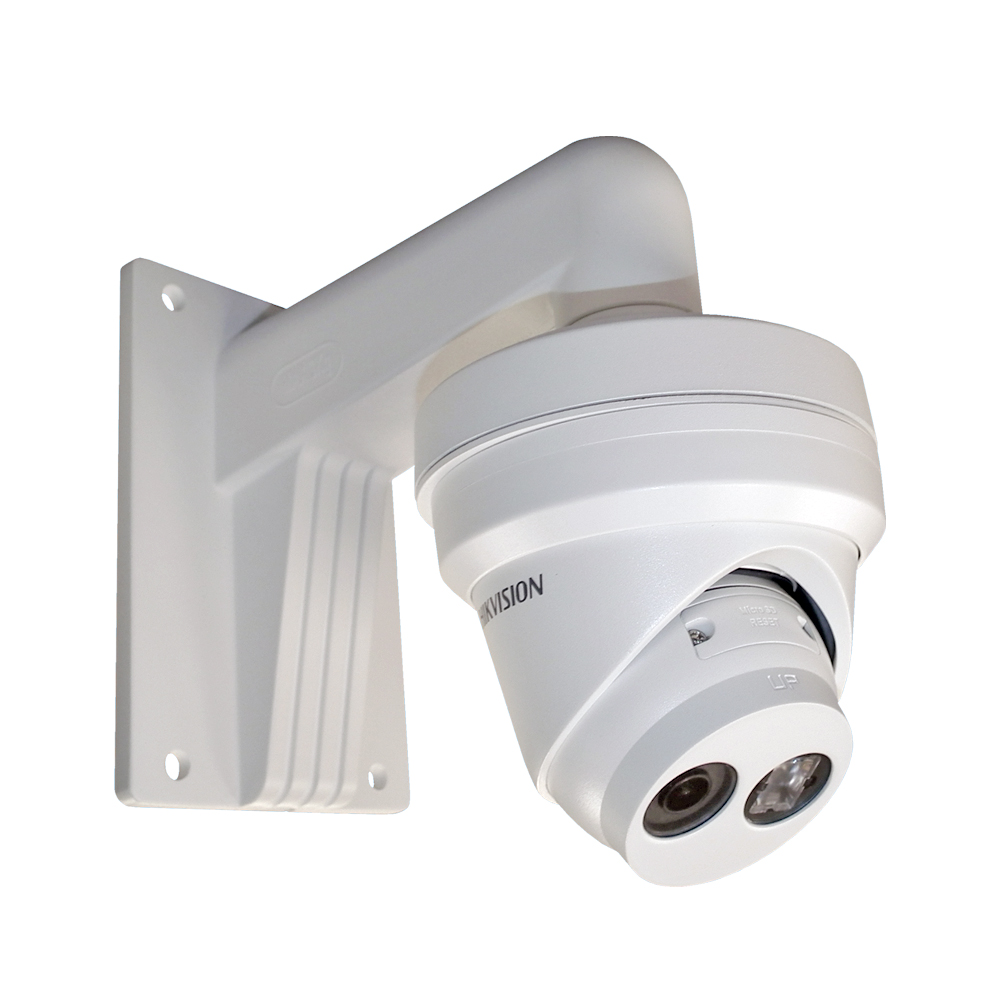

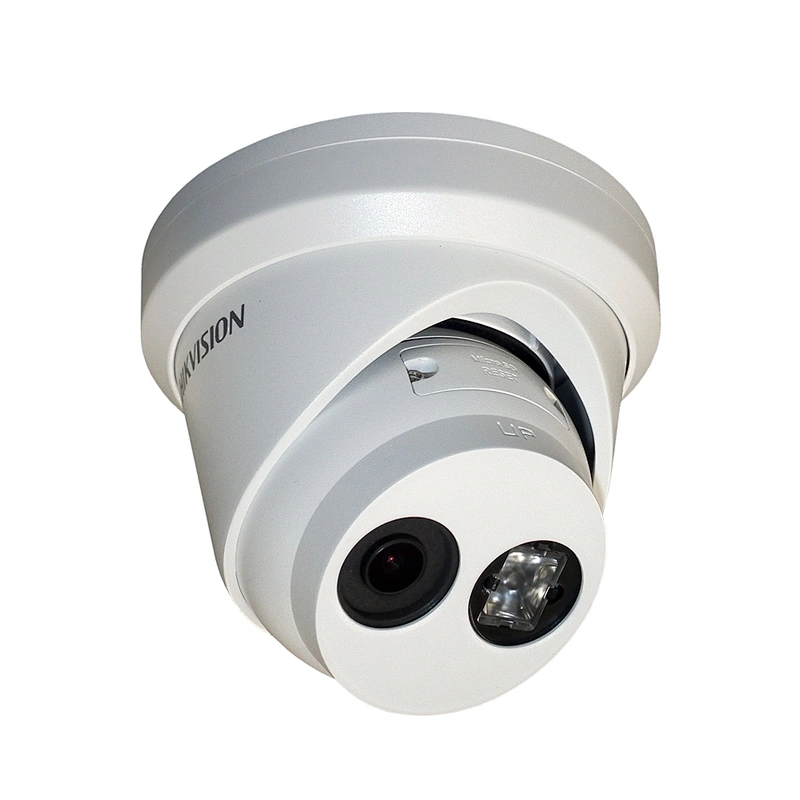

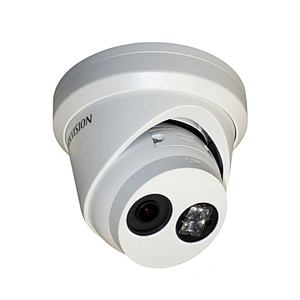

Camera DS 2CD2343G0-I(U) 4MP IR Fixed Turret Network Camera | ||
Image Sensor | 1/3"Progressive Scan CMOS | |
Signal System | PAL/NTSC | |
Min. Illumination | Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
Shutter time | 1/3 s to 1/100,000 s | |
Lens | 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° | |
Lens Mount | M12 | |
Adjustment Range | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
Day& Night | IR cut filter with auto switch | |
Wide Dynamic Range | 120 dB | |
Digital noise reduction | 3D DNR | |
Focus | Fixed | |
Compression Standard | ||
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate | 32Kbps~16Mbps | |
Triple Streams | Yes | |
Image | ||
Max. Image Resolution | 2688 × 1520 | |
Frame Rate | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) | |
Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |
ROI | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch | Day/Night/Auto/Schedule | |
Network | ||
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering | |
System Compatibility | ON VIF (Profile S, Profile G), ISAPI | |
Interface | ||
Audio | 1 audio input (built-in mic), mono sound(-U) | |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface | |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button | Yes | |
Smart Feature-set | ||
Behavior Analysis | Line crossing detection, Intrusion detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection | Enter and loiter in a pre-defined virtual region | |
General | ||
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption | 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W | |
Weather Proof | Without -U: IP67 With -U: IP66 | |
IR Range | Up to 30m | |
Dimensions | Camera: Φ 127.3 × 95.9 mm (5"× 3. 8") With package: 150 × 150 × 141 mm (5.9"× 5.9"× 5.6") | |
Weight | Camera: Approx. 635 g (1.4 lb.) With package: Approx. 890 g (1.96 lb.) | |
4MP HD resolution IP Network Camera
This 4MP resolution security camera contains 2× the amount of pixels as a 1080p security camera. This 4MP camera can record at a pixel ratio of 2688 x 1520.

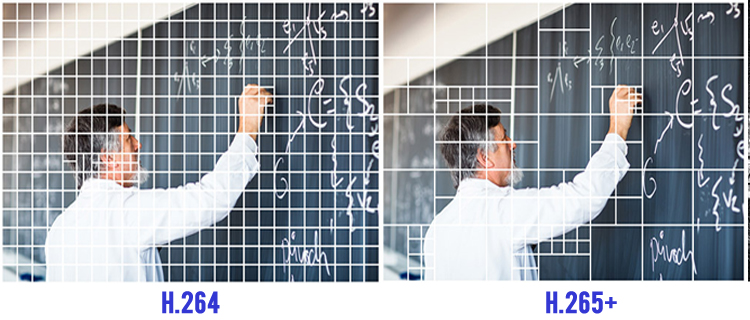

Innovative codec Hik H.265 +
H.265 + is a video encoding system that is an extension of the technology used in H.265 / HEVC.
H.265+ allows you to:
-Optimize the Basic Functions of the Camera;
-Allows Better Use of Network Bandwidth;
-Significantly Reduces Interference
Guarantees Long-term Archiving of Recordings Without Compromising Image Quality.

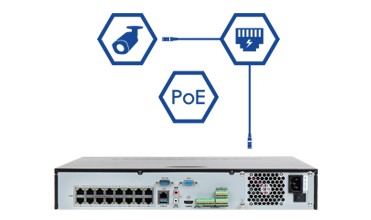

Plug&Play
All that this security camera requires to connect it to a compatible Hik or Hitosino NVR is a single Cat5e ethernet cable. This all-in-one cable provides video transmission, and power to the camera, and a stable network connection.

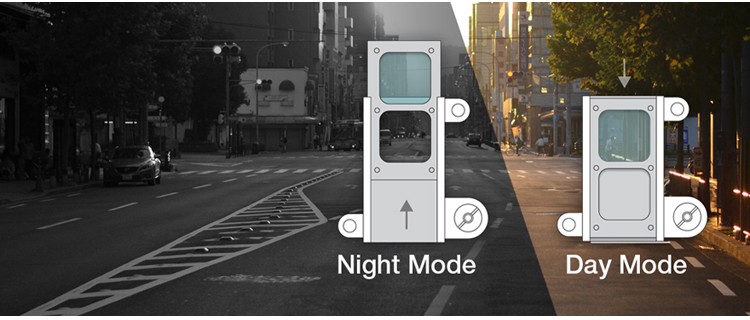

ICR -IR Cut Filter Removable
At night or under low illumination scenes, the cameraswitch from color mode to B/W mode automatically, which can improve low-light performance effectively.

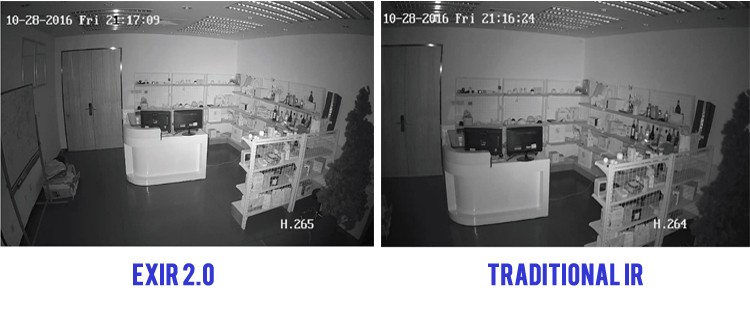

EXIR 2.0
Infrared lamps EXIR 2.0 are an innovative technology that uses the latest type of highly efficient IR LED series EXIR.Compared with the traditional generation, EXIR 2.0 has better heat dissipation and increased lifespan of up to 20,000 hours.
Original Image
BLC and WDR are off.
BLC-Back Light Compensation
If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make it clear.
WDR-Wide Dynamic Range.
WDR cameras often incorporate an image sensor that takes different exposures of a scene and combine them into one image, enabling objects in both bright and dark areas of a scene to be visible.

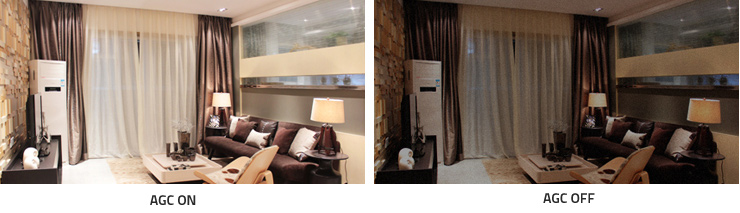

AGC - Automatic Gain Control
It amplifies the signal to make the image brighter during night time. This amplification is called gain. The camera can auto adjust the gain control according to the signal level.

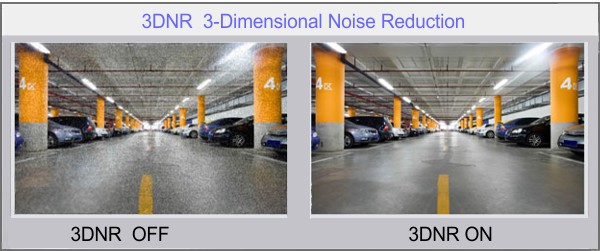

DNR-Digital Noise Reduce
Hik cameras adopt 3D digital noise reduction to provide images with less noise in low-light surveillance scenes compared to conventional cameras. 3D DNR can be used to enhance image quality and save bandwidth.

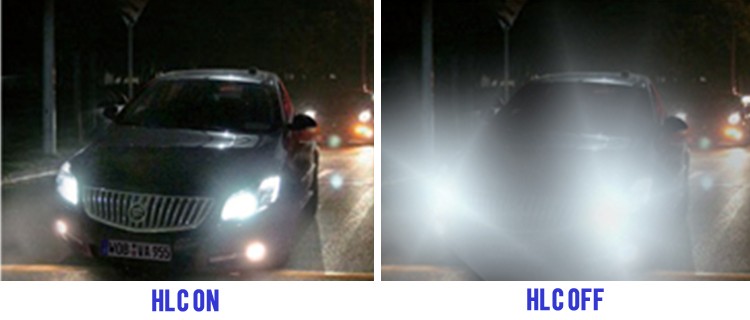

High Light Compensation
Compensate the strong light in the picture, so that the surrounding area wouldn't be over-exposed and still could be seen.
ROI-Region of Interest
ROI technology assigns a more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.
Privacy masking
Thanks to the system of privacy masks, it is possible to freely determine fragments of the image that will be excluded from the video surveillance.
VCA Smart Feature
Motion Detection
Program this camera with up to four different motion zones using your NVR or separately. These zones can be customized to adjust the sensitivity. So more important areas, like a doorway, can be adjusted so that any movement at all will trigger recording (or create a motion event), while other sections of the frame, like a tree, would need a much higher level of motion.

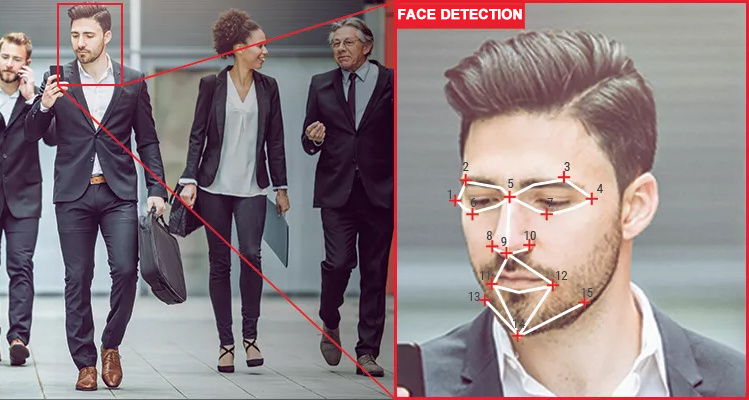

Face Detection
Human face that appears in the image can be detected and trigger linkage method

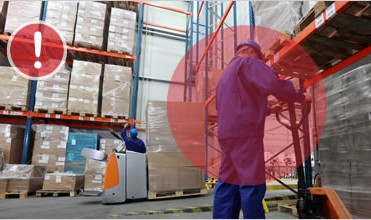

Intrusion Detection
Used to identify when a moving object enters and remains in a specified area for a period of time deemed unacceptable, such as an individual stepping over a partition in a museum.
Line crossing detection
Used to detect when a moving object passes through the camera's field of view in a specified direction, such as an individual entering into a restricted area from the exit doorway.

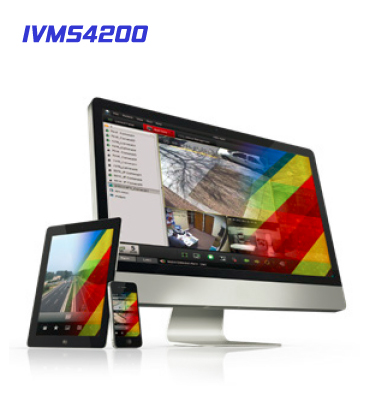

Video Management Software-IVMS4200
-Management of up to 256 devices
-Smart search and Playback -E-map Function
-Alarm Event Management with Video Pop Up
-Camera Management License Plate Reading
-Smart Deep Learning Management
-Managing video intercom and access control in one module
Connection by Plug &Play
-Video playback
-Real-time notifications
-Two-way remote communication
-Video intercom devices to answer calls at the door
-Remote arming using security control panel
-Device sharing with assigned permissions
-Convenient and secure fingerprint login
Company Profile
FAQ
1.How can we confirm the products are genuine HV and DH English version?
HV and DH softwares can be downloaded from their official website, and only original products are fully compatible with the softwares.
2.Can you provide OEM service? Is there MOQ?
OEM is preferred, and in most cases, no MOQ is required.3、What payment method can your company provide ?
We accept Alibaba Trade Assurance Orders payment, via TT (Bank transfer), Western Union,Paypal and so on.
4.How is your after-sales service?
Most of our sales engineers and technicians have won HV HCSA certificate. And thanks to manufacturers' support, all issues can be solved timely and properly.5.Do you provide drop shipping service?
We will provide as many shipping options as possible, including DHL, UPS, TNT, FedEx and EMS, Airfreight and by Sea, and we also have third-party warehouse in US and AU, timely shipment can be arranged.Any more information, please contact us via monitech.en.alibaba.com we will provide more product information to you, Hope we will server to you. Thanks your support.
