Camera |
Image Sensor | 1/2.5"progressive scan CMOS |
Effective Pixels | 2560(H)×1440(V) |
Signal System | PAL/NTSC |
Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
AGC | Auto/Manual |
BLC | ON/OFF |
HLC | Support |
Smart defog | Support |
WDR | 120dB |
Shutter Time | 1/1 to 1/30,000s |
Day& Night | ICR |
Digital Zoom | 16× |
Auto Focus | Auto / Semi-automatic / Manual |
Lens |
Focal Length | 4.8 mm to 120 mm, 25× optical |
Zoom Speed | Approx. 3.2 s (optical lens, wide-tele) |
Field of View | Horizontal field of view: 57.6° to 2.5° (wide-tele)
Vertical field of view: 34.4° to 1.4° (wide-tele)
Diagonal field of view: 64.5° to 2.9° (wide-tele) |
Minimum Working Distance | 10 to 1500mm (wide-tele) |
Aperture Range | F1.6 to F3.5 |
Pan & Tilt |

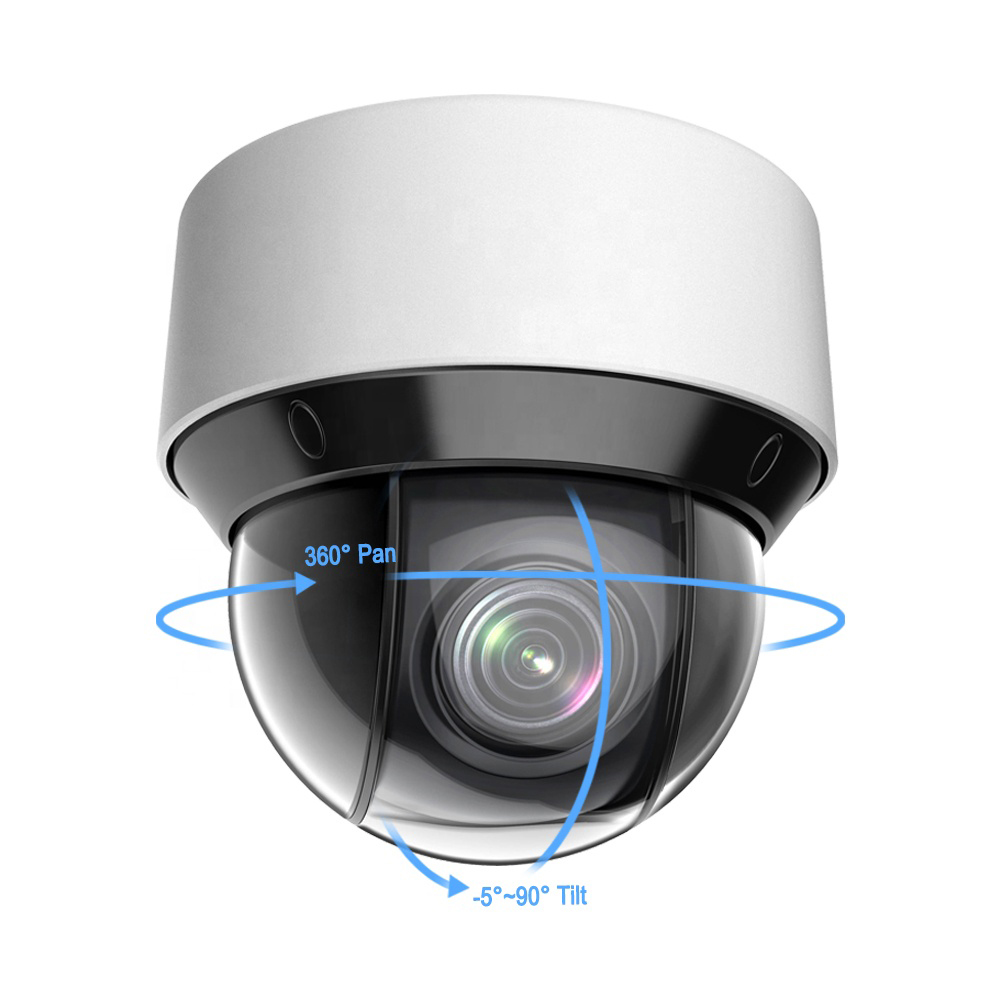

Pan Range | 360°endless |
Pan Speed | Configurable, from 0.1°/s to 300°/s
Preset Speed: 350°/s |
Tilt Range | -5°~90° (Auto Flip ) |
Tilt Speed | Configurable, from 0.1°/s to 160°/s
Preset Speed: 200°/s |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Number of Preset | 300 |
Patrol | 8 patrols, up to 32 presets for each patrol |
Pattern | 4 pattern scans, record time over 10 minutes for each scan |
Power-off Memory | Support |
Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
PTZ Position Display | ON/OFF |
Infrared |
IR Distance | 50m |
IR irradiation angle | Adjustable by zoom |
Alarm |
Alarm Input | 2 |
Alarm Output | 2 |
Alarm Linkage | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
Input & Output |
Audio Input | 1-ch audio input |
Audio Output | 1-ch audio output |
Network |
Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
Max.Image Resolution | 2560 × 1440 |
Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
Third Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG |
Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Simultaneous Live View | Up to 20 channels |
Three-Stream | Support |
Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
Client GUI |
Client | iVMS-4200, iVMS-4500, iVMS-5200, HV-Connect |
General |
Power Supply | 12VDC, PoE+ |
Power Consumption | Max.: 18W (IR light 5W Max.) |
Working Temperature/Humidity | Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90% |
Protection Level | IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection |
Dimensions | Φ 169 mm × 161 mm (Φ 6.65"× 6.34") |
Weight (approx.) | Approx. 2.45kg (5.40lb) |
