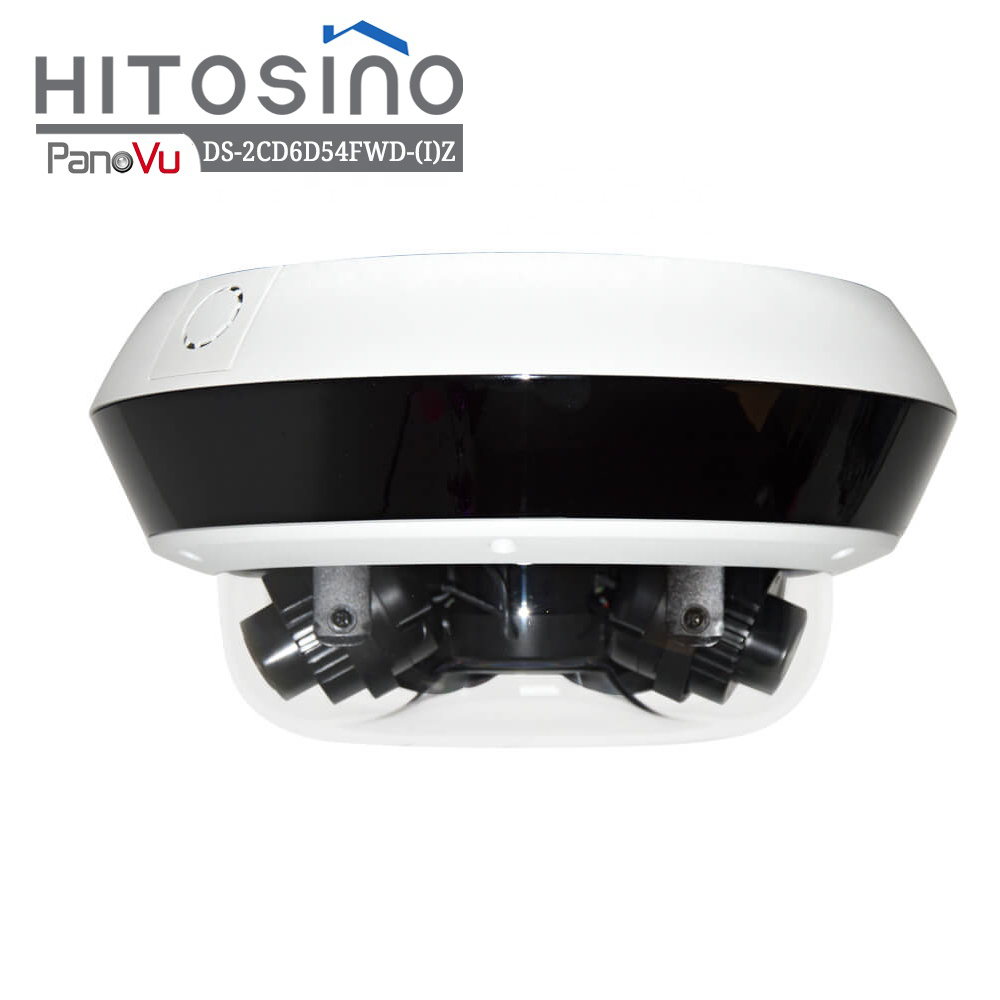

HITOSINO HV OEM 2CD6D54FWD-IZHS 20MP 4x5MP MultiLens Motorized Lens IK10 IP67 Waterproof Panovu EXIR IP Security Network Camera

HITOSINO HV OEM 2CD6D54FWD-IZHS 20MP 4x5MP MultiLens Motorized Lens IK10 IP67 Waterproof Panovu EXIR IP Security Network Camera

Model NO.: 2CD6D54FWD-(I)Z(H)(S)
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:Zhejiang, China
Brand Name:HITOSINO
Model Number:2CD6D54FWD-(I)Z(H)(S)
Special Features:NIGHT VISION, Human Motion Tracking, Motion Detection, Waterproof / Weatherproof
Sensor:CMOS
Video Compression Format:H.265, H.264
Data Storage Options:Memory Card, NVR
Model Name:2CD6D54FWD-(I)Z(H)(S) Panovu Security Camera
Min. illumination:0.006 Lux @ (F1.2, AGC ON)
Lens:2.8mm to 12mm Motorized Lens
Adjustment Range:slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Day& Night:IR cut filter with auto switch, ICR
Image Enhancement:BLC, 3D DNR, EIS
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Phone Access:Hik-connect, IVMS4500
IR Distance:Approx. 10 to 30 meters

Top Concerns You Might Have

Deep Cooperation with

Hik/DH/Uniview

Our products are backed up with:

At Least 3-yearWarranty;

OEM/ODMService;

Outstanding Technical Support;

Value-added Services;

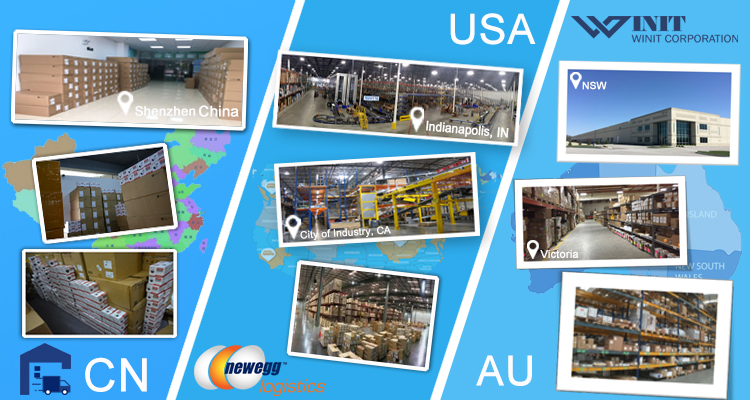

Sufficient Stock

Sufficient stock in Shenzhen and third-party warehouses in US& AU ensuretimely and safe deliveryto customers.

For available items, shipment will be arranged on the same/ second working day.

For OEM/ Unavailable items, lead time is around 15-25 working days.

Advanced CRM System

Based on our advanced CRM system,flexible relateswill be provided to our long-term valued customers who meet certain sales target each year from the date of signing “Reseller Agreement”.

Resellers, installers and wholesalers are welcomed to contact us for special offer.

Product Main Features

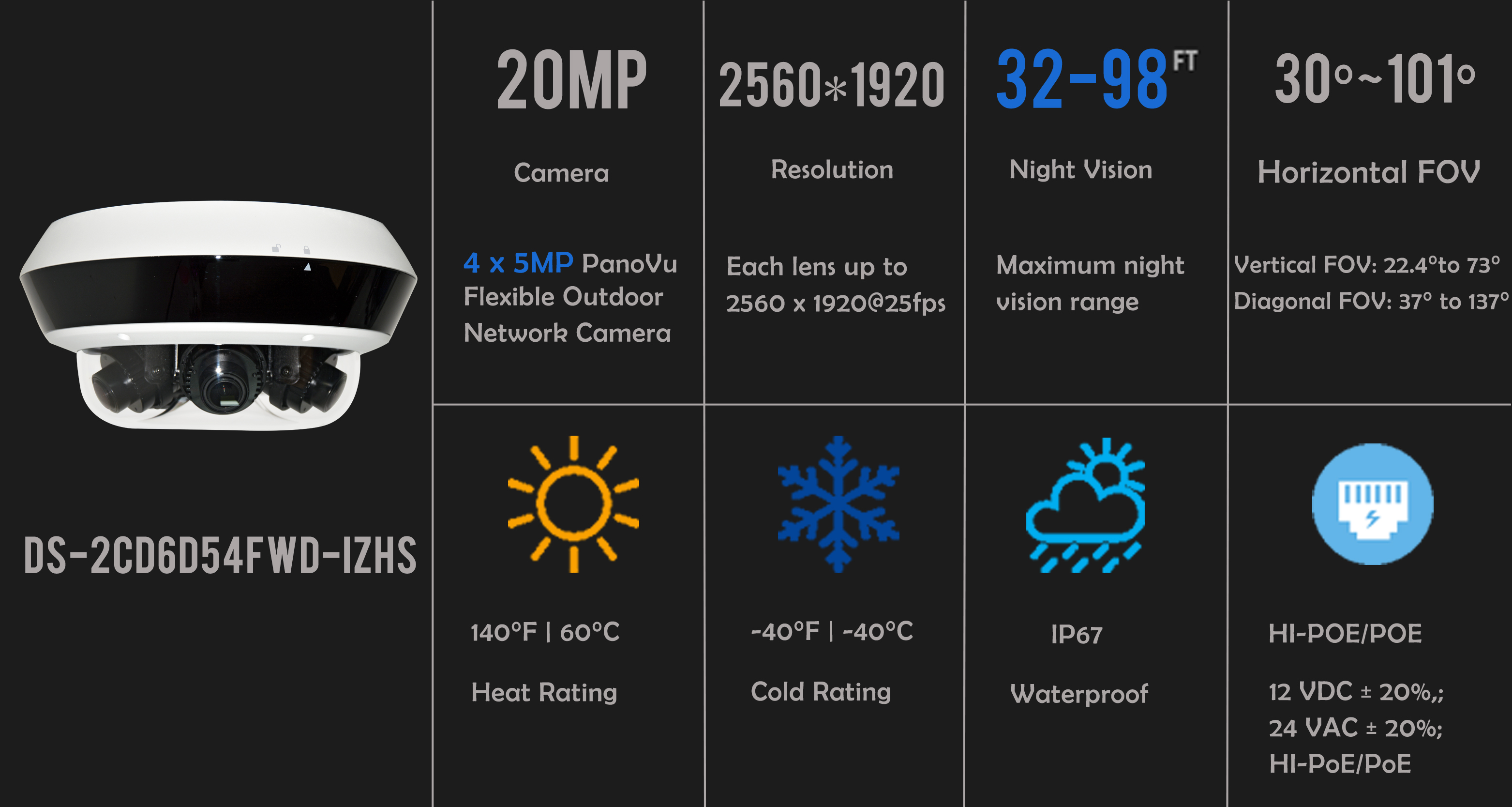

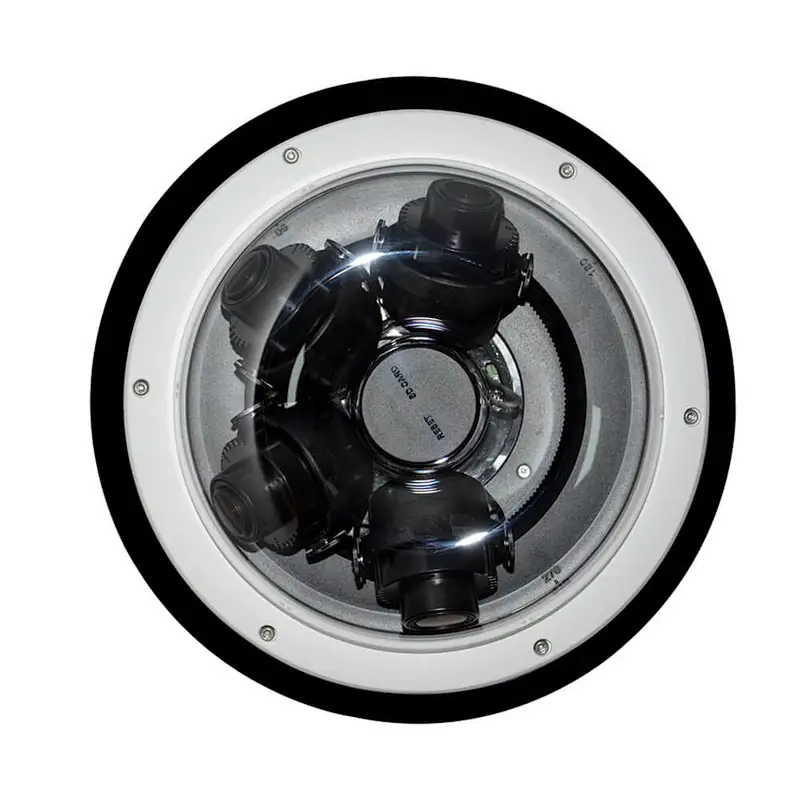

Panovu Series 2CD6D54FWD-IZHS 20MP Outdoor 4-Sensor Network Camera with Heater

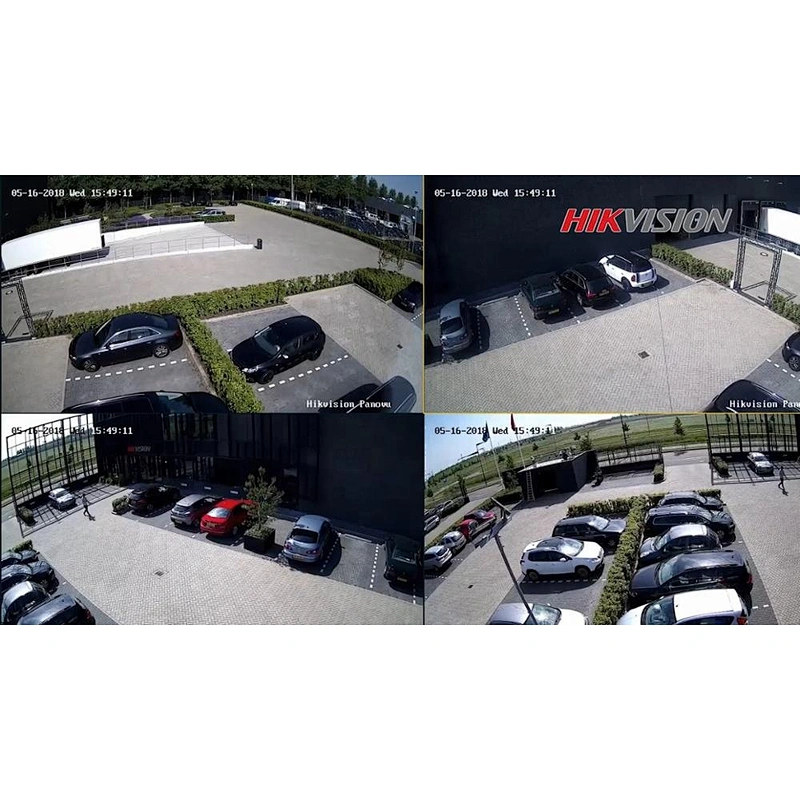

The 2CD6D54FWD-IZHS from Hik is a multi-sensor camera that uses four 1/2.7"progressive scan CMOS sensors to capture video at a total resolution of10240 x 1920.Each sensorcaptures2560 x 1920 resolution video at 24 fps/25 fps. The camera is equipped with four 2.8-12mm varifocal lenses. Two-way audio communication is possible thanks to an audio input and output.

Special Features of 2CD6D54FWD-IZHS

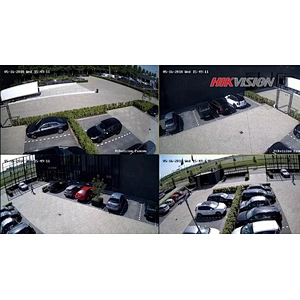

-Up to 20MPresolution totally inonecamera

-4Independent Sensors with one IP address

-2.8-12mmMotorizedLens;

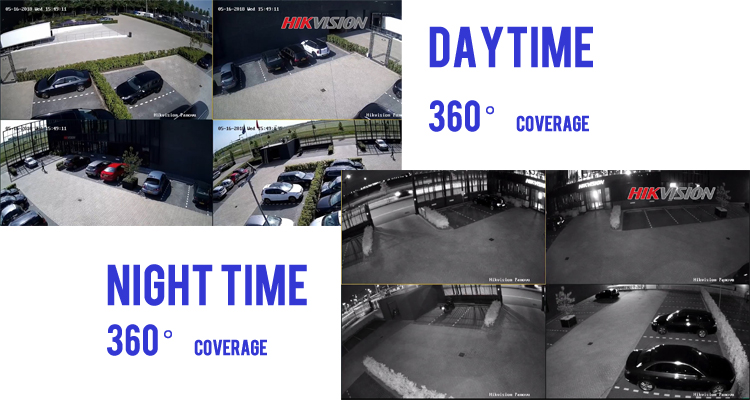

-10-30 Meters IR with 360° coverage;

-4x 3-axis gimbals for flexible adjustment;

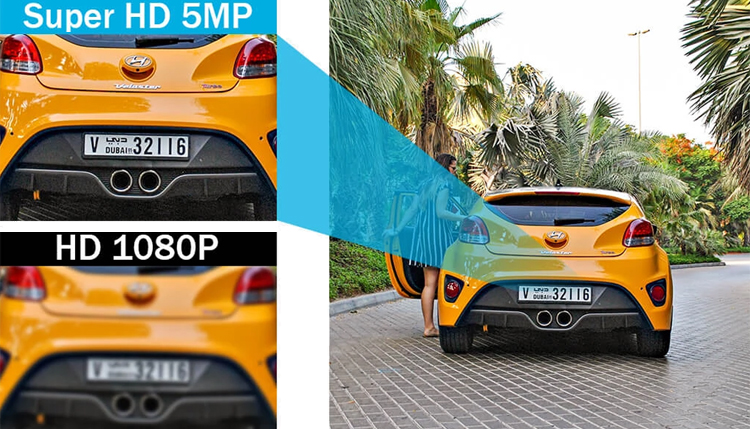

Up to 5mp per Camera

There is a cutting edge 5MP image sensor within each of your Nocturnal security cameras. This sensor is capable of recording in 2560x1920 resolution, which will provide you with the best chance to capture the distinct details you require for evidence.

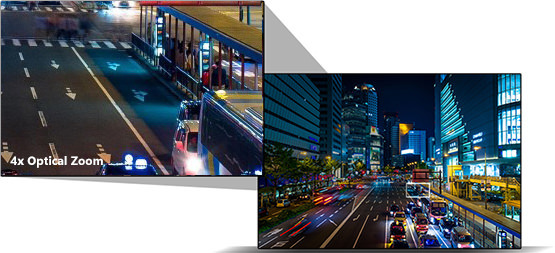

4x Motorized Lens from 2.8mm-12mm

The optical zoom from 2.8 mm to 12 mm enables remote customization of your viewing area and focus. Thanks to the 4× optical zoom, the camera can focus on a small area in astonishing detail or survey a larger scene for maximum coverage. These adjustments can be easily made with your HIK/ HITOSINO NVR or through Hik-connect App.

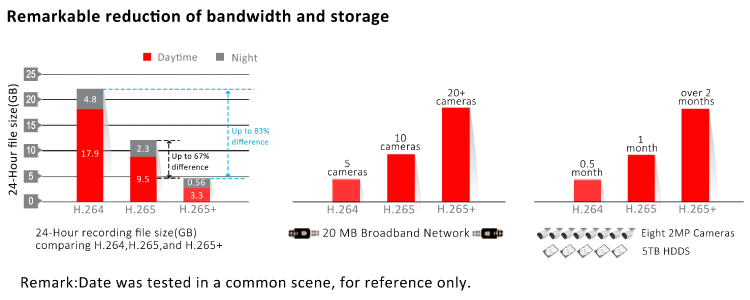

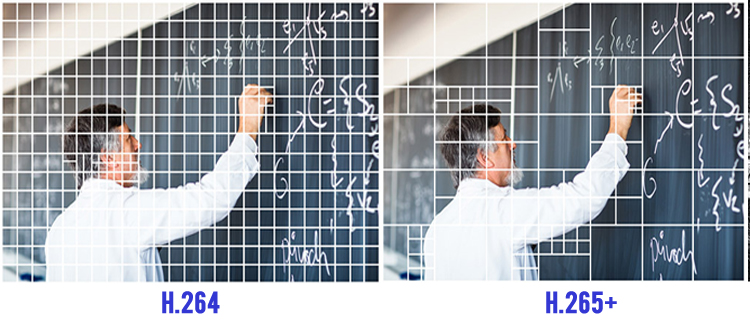

Innovative codec Hik H.265 +

H.265 + is a video encoding system that is an extension of the technology used in H.265 / HEVC. H.265+ allows you to:
-Optimize the Basic Functions of the Camera;
-Allows Better Use of Network Bandwidth;
-Significantly Save Money for Storage
-Guarantees Long-term Archiving of Recordings Without Compromising Image Quality.

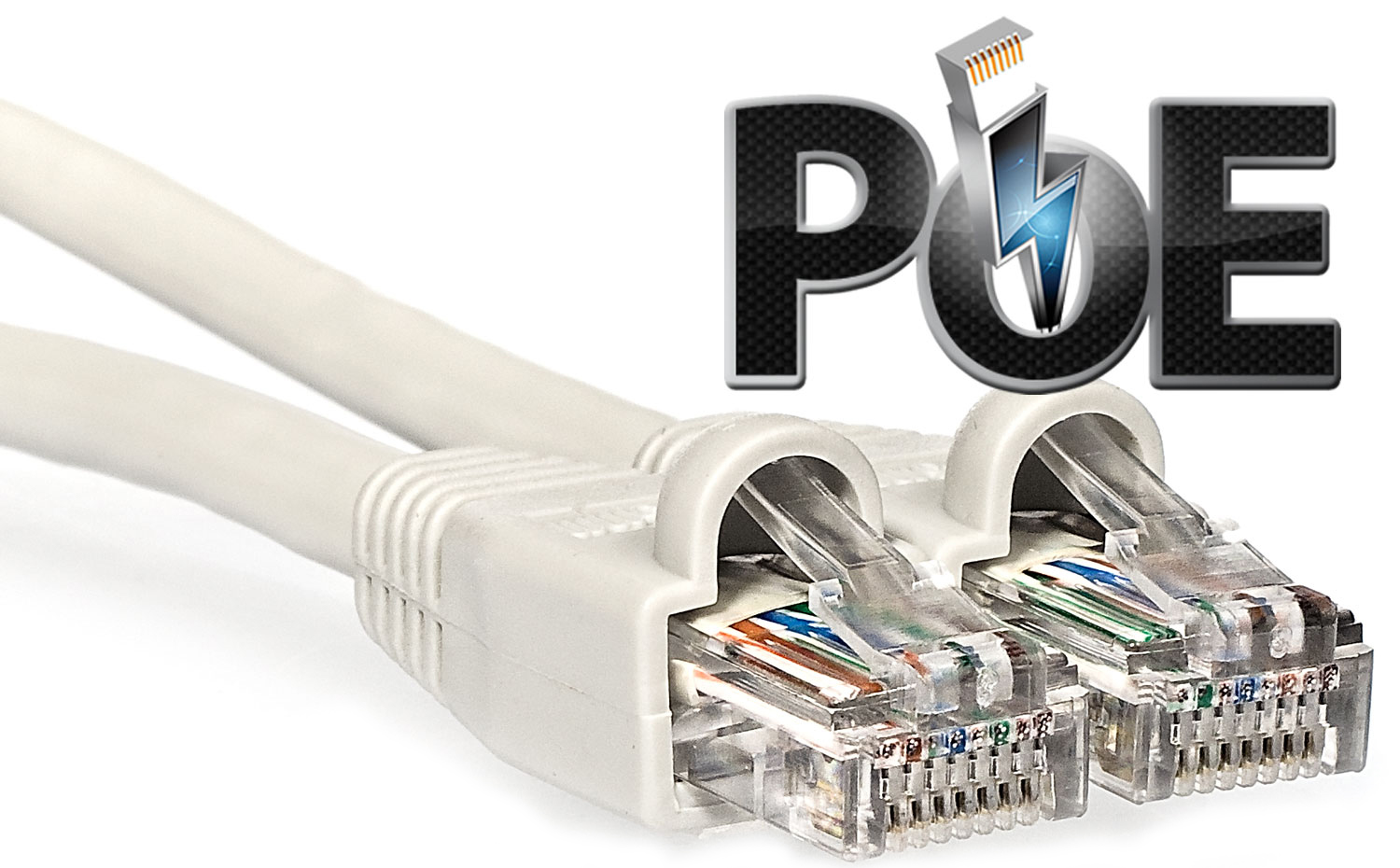

PoE or HI-PoE

Power over Ethernet is a solution designed for carrying out quick and uncomplicated assembly of network devices as well as comfortable operation of the equipment and easy modernization of the installation.

Up to 25fps/24fps@ 2560 x 1920

The number of images per second is a frame rate and is measured in frames per second (fps). The higher the number of frames per second the better quality and more smooth is the image displayed by the device.

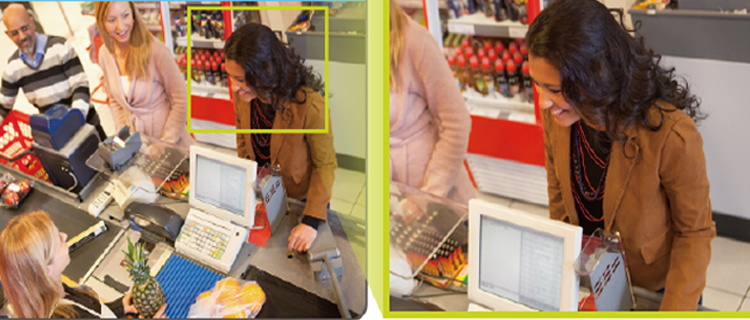

ROI-Region of Interest

ROI technology assigns a more encoding resource to the region of interest (support up to 4 fixed region each stream), thus to increase the quality of the ROI whereas the background information is less focused.

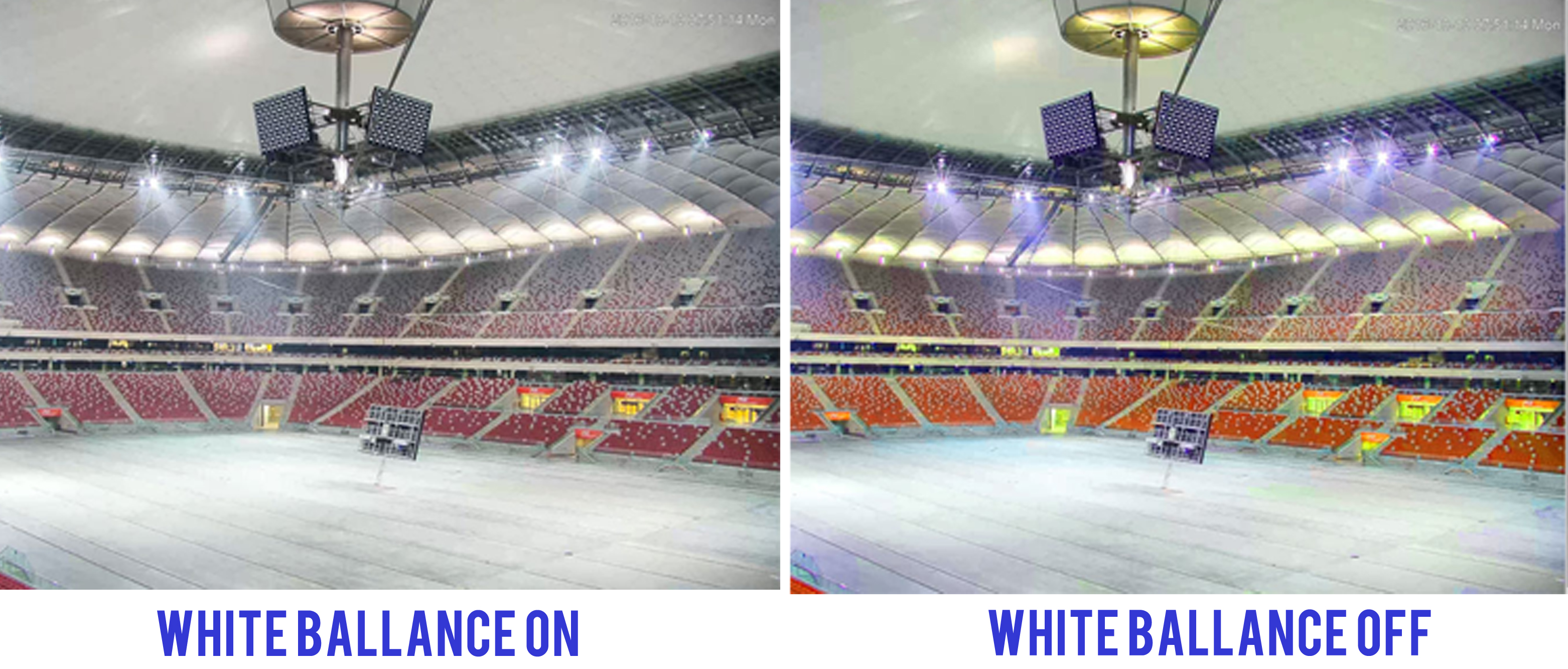

White Balance

White Ballance is a function that allows the camera to adjust the white balance depending on the lighting conditions in which it currently works.

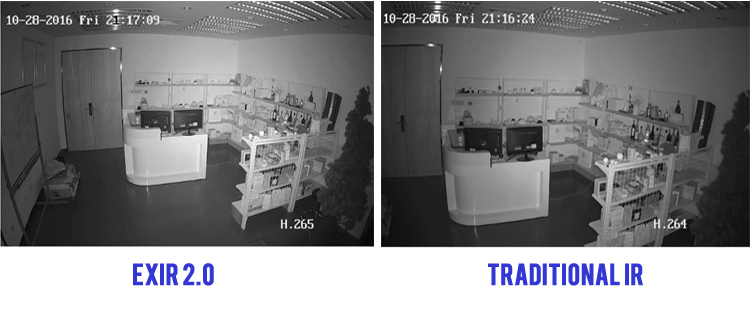

EXIR 2.0

- EXIR 2.0 LEDs are an improvement on Hik's previous EXIR (EXtended InfraRed) LEDs.
- Lifespan improvement
- Improved heat dissipation
- Improved weather resistance and temperature resistance

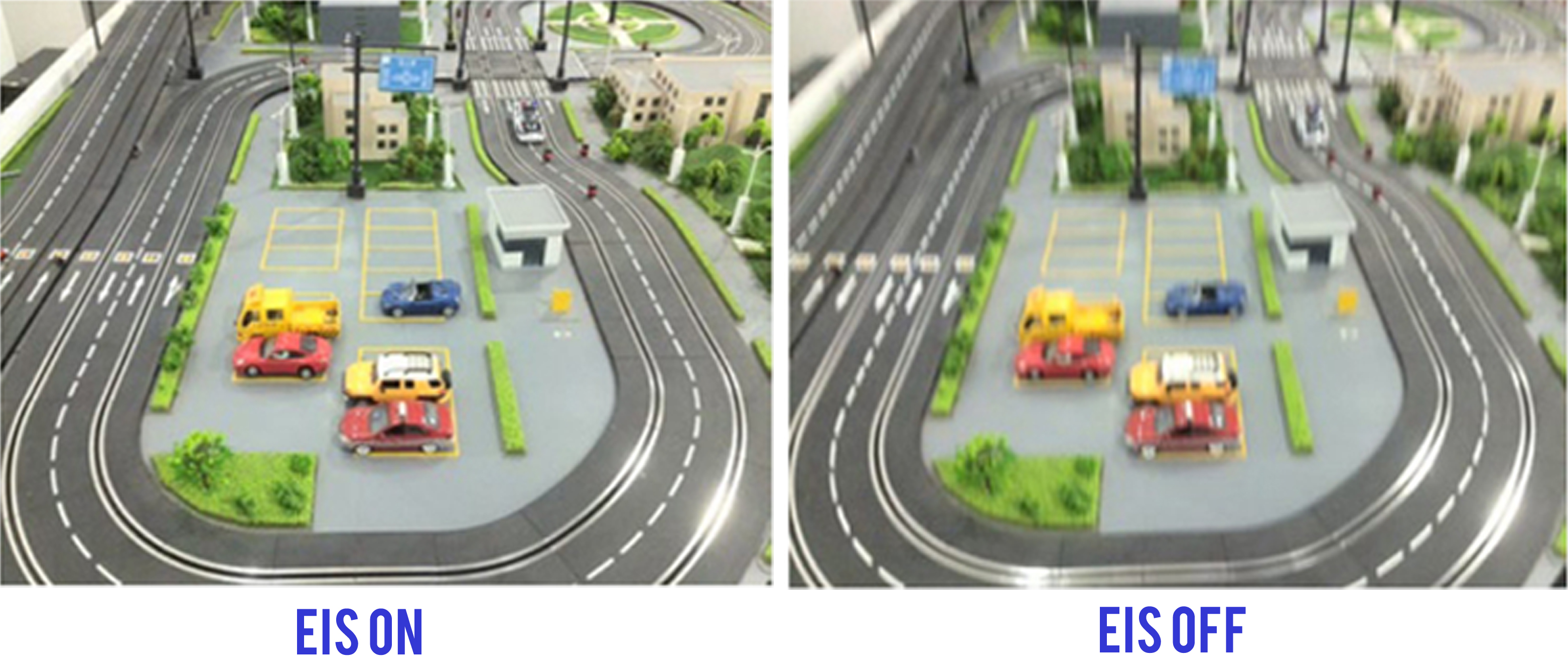

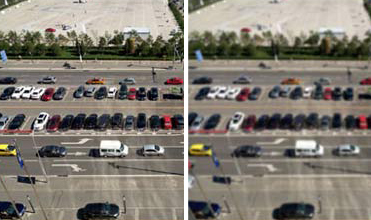

EIS- Electronic Image Stabilization

Electronic image stabilization is an algorithmic function of the camera processor that eliminates shocks caused during image recording in order to improve its quality.

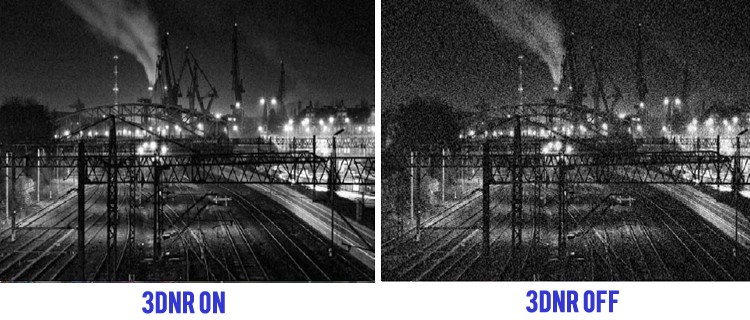

DNR-Digital Noise Reduce

Hik cameras adopt 3D digital noise reduction to provide images with less noise in low-light surveillance scenes compared to conventional cameras. 3D DNR can be used to enhance image quality and save bandwidth.

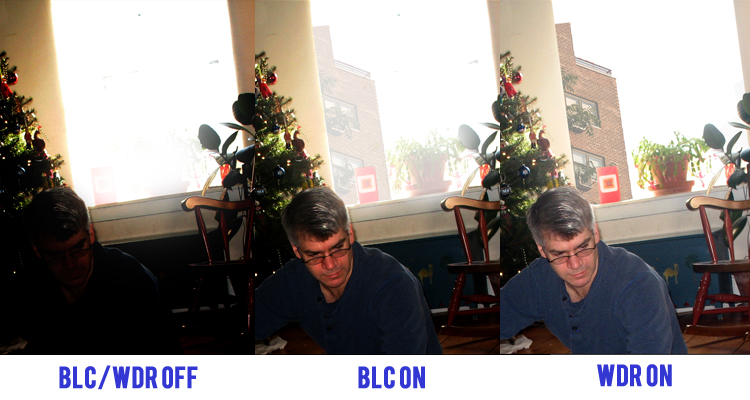

BLC-Back Light Compensation

If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make itclear.

WDR-Wide Dynamic Range

WDR cameras often incorporate an image sensor that takes different exposures of a scene and combine them into one image, enabling objects in both bright and dark areas of a scene to be visible (120DB WDR is not supported by full frame rate).

VCA Smart Feature

Motion Detection

If there is any motion in the configured detection area, the camera will automatically detect the event and can trigger preconfigured alarms or recording. Users can set sensitivity level, detection area, and arming schedule accordingly.

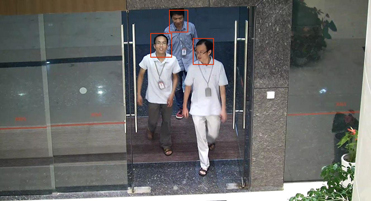

Face Detection

Human face that appears in the image can be detected and trigger linkage method

Audio Exception Detection

Detects and records all sound sources while filtering background noise. When the set volume is exceeded, an alarm is triggered.

Scene Change Detection

Alarm action will be triggered or recording if camera’s viewing direction is changed so that the camera captures a different scene if pre-configured.

Defocus Detection

Alarm action will be triggered or recording if the camera is out of focus if pre-configured.

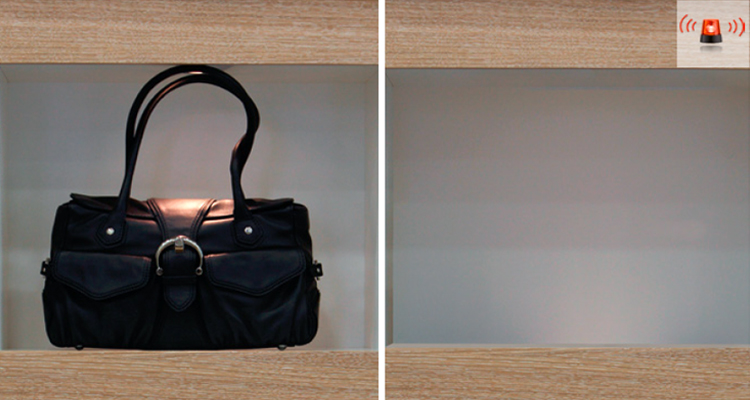

Object removal detection

Used to identify the removal of a static object from a designated area, such as a priceless painting in a museum/gallery.

Unattended baggage detection

Used to identify motionless objects that have been left behind by a moving object such as a suspicious package placed on a city street.

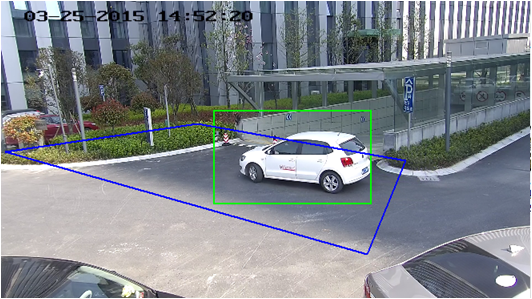

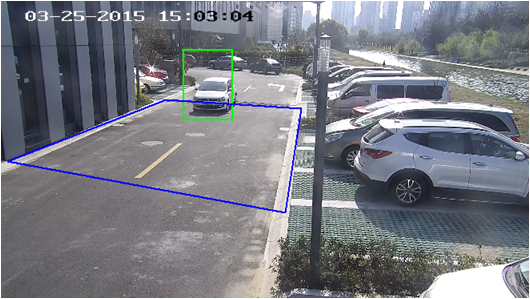

Intrusion Detection

Used to identify when a moving object enters and remains in a specified area for a period of time deemed unacceptable, such as an individual stepping over a partition in a museum.

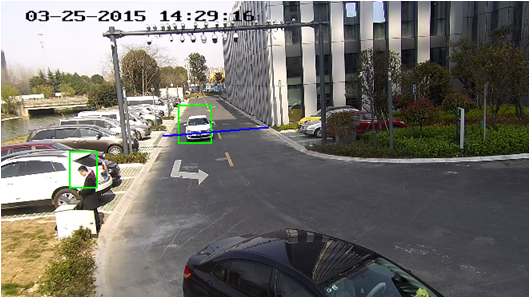

Line Crossing Detection

Used to detect when a moving object passes through the camera's field of view in a specified direction, such as an individual entering into a restricted area from the exit doorway.

Region Entrance Detection

Used to detect people, vehicle or other objects which enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered.

Region Existing Detection

Used to detect people, vehicle or other objects which exit from a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

Specifications

Camera

Image Sensor

1/2.7"progressive scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON)
B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON)
0 Lux with IR on

Shutter time

1 s - 1/100,000 s

Auto-iris

Day& Night

ICR

3-Axis Adjustment

Four flexible lens in one track, slide range: -180°to 180°, tilt: 0°to 135°, rotate: 0°to 355°

Lens

Focal Length

2.8mm to 12mm Motorized Lens

Aperture

F1.6

Field of View

Horizontal field of view: 30°to 101°
Vertical field of view: 22.4°to 73°
Diagonal field of view: 37° to 137°

Lens Mount

Φ14

IR Range

10 m to 30 m

Wavelength

850 nm

Compression Standard

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Yes

H.265 Type

Main Profile

H.265+

Yes

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Features

Behavior Analysis

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Exception Detection

Audio exception detection, scene change detection, defocus detection

Face Detection

Yes

ROI

Support 4 fixed region for each stream


Max. Resolution

2560 x 1920
