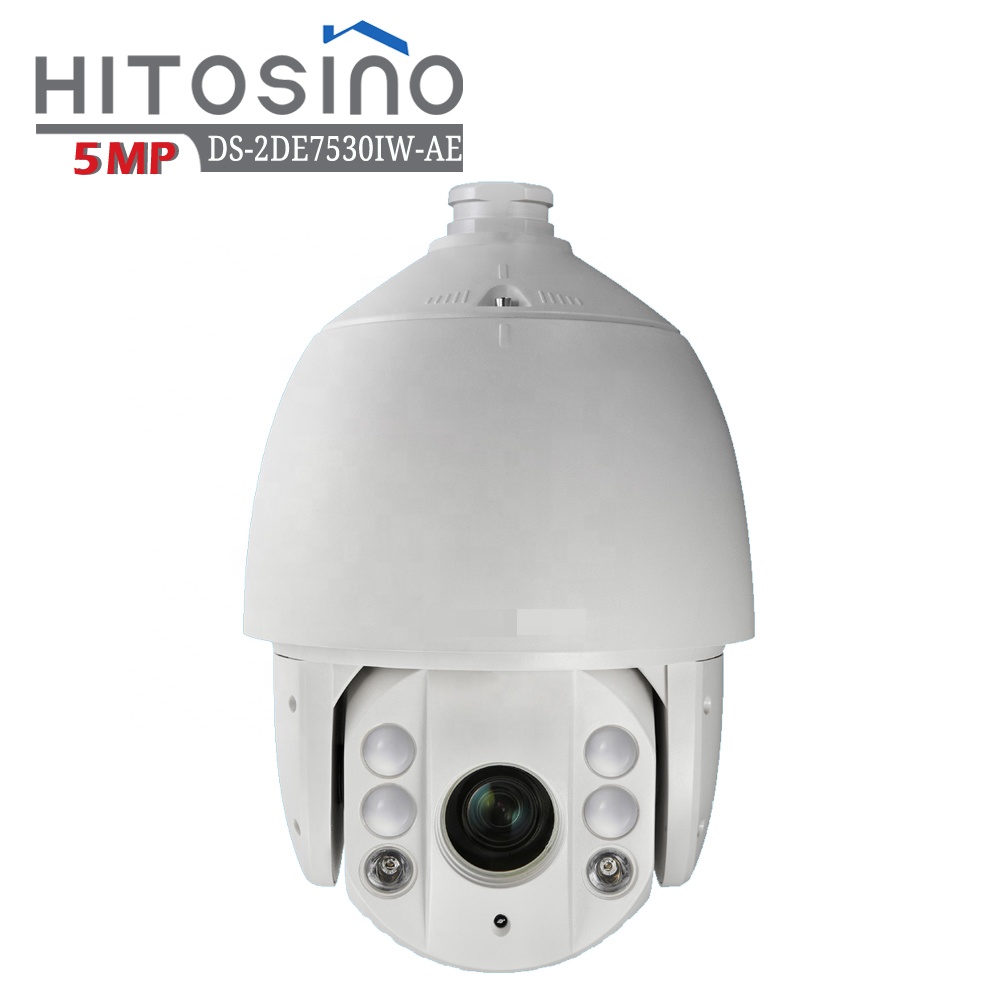

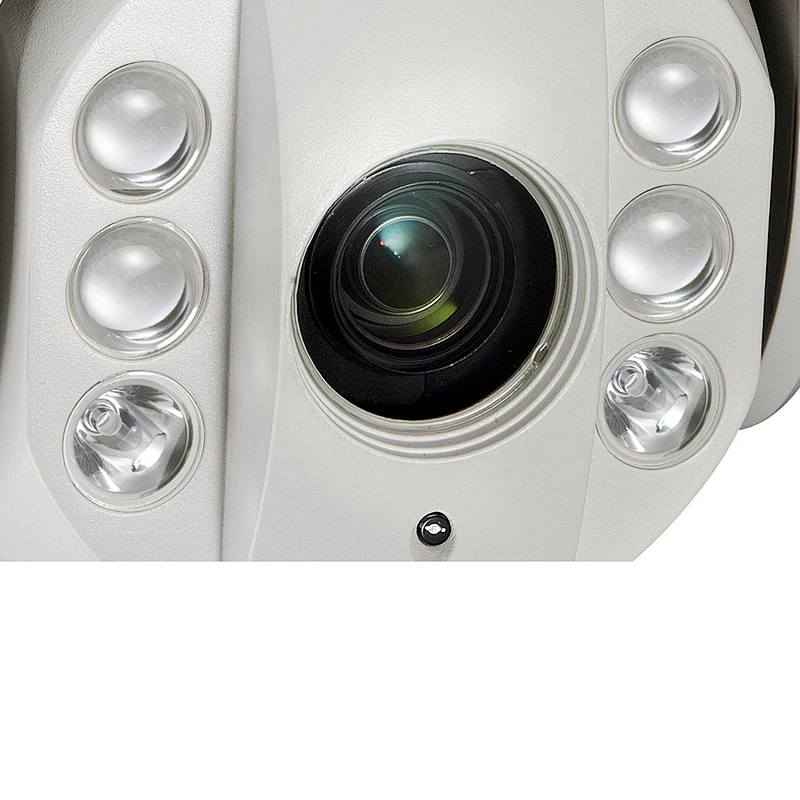

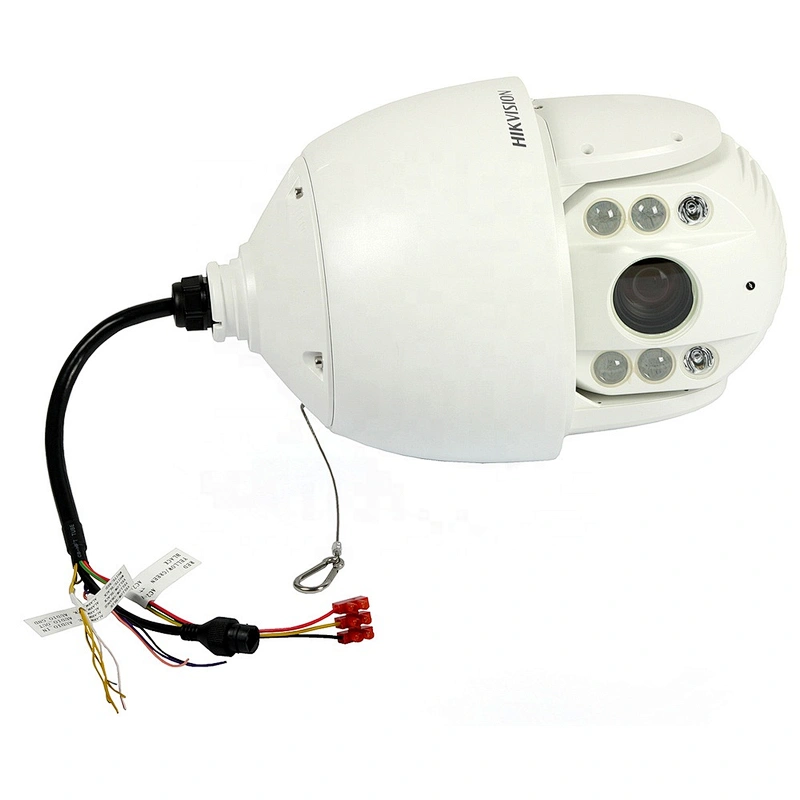

HITOSINO IP66 H.265+ ROI SD Card Slot 2DE7530IW-AE Speed Dome 150m IR Smart Auto-tracking 30X Optical Zoom 5MP IP PTZ Camera

HITOSINO IP66 H.265+ ROI SD Card Slot 2DE7530IW-AE Speed Dome 150m IR Smart Auto-tracking 30X Optical Zoom 5MP IP PTZ Camera

Model NO.: 2DE7530IW-AE
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:Zhejiang, China
Brand Name:HITOSINO
Model Number:2DE7530IW-AE
Special Features:Waterproof / Weatherproof
Sensor:CMOS
Video Compression Format:H.265, H.264
Data Storage Options:More
Model Name:Hik 30x PTZ
Min. illumination:Color 0.005 Lux @(F1.5, AGC ON)
Lens:5.9 mm to 177 mm, 30x Optical Zoom
Diagonal Field of View:51.3° to 2.7° (Wide-Tele)
Day& Night:IR cut filter with auto switch
Preset Freezing:Support
Scheduled Task:Support
Auto-tracking:Support
IR Distance:150m
Privacy Mask:8 programmable privacy masks

Top Concerns You Might Have

Deep Cooperation with

Hik/DH/Uniview

Our products are backed up with:

At Least 3-yearWarranty;

OEM/ODMService;

Outstanding Technical Support;

Value-added Services;

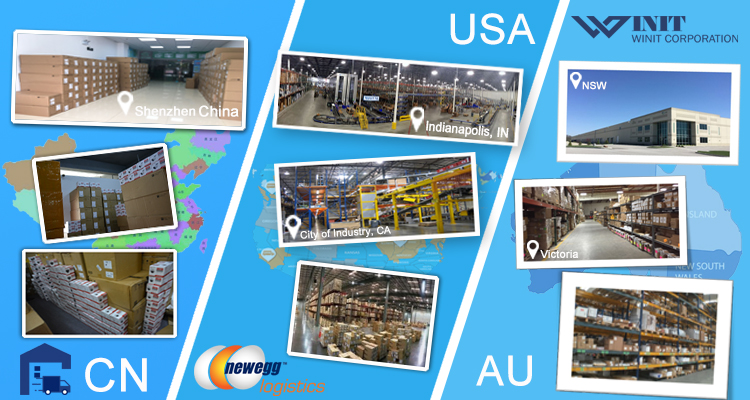

Sufficient Stock

Sufficient stock in Shenzhen and third-party warehouses in US& AU ensuretimely and safe deliveryto customers.

For available items, shipment will be arranged on the same/ second working day.

For OEM/ Unavailable items, lead time is around 15-25 working days.

Advanced CRM System

Based on our advanced CRM system,flexible relateswill be provided to our long-term valued customers who meet certain sales target each year from the date of signing “Reseller Agreement”.

If you are interested in learning more, please don't hesitate to contact us.

Product Main Features

5MP 30x Network Ultra-low light IR PTZ Camera

Hik 2DE7530IW-AE 5MP 30× IR Network Speed Domes adopt 1/1.9"progressive scan CMOS chip.With the 30× optical zoom lens, the camera offers more details over expansive areas.

This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests,roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

30X Optical Zoom

The optical zoom from 5.9mm to 177mm enables remote customization of your viewing area and focus. Thanks to the 30×optical zoom, the camera can focus on a small area in astonishing detail or survey a larger scene for maximum coverage. These adjustments can be easily made with your HIK/ HITOSINO NVR or through Hik-connect App.

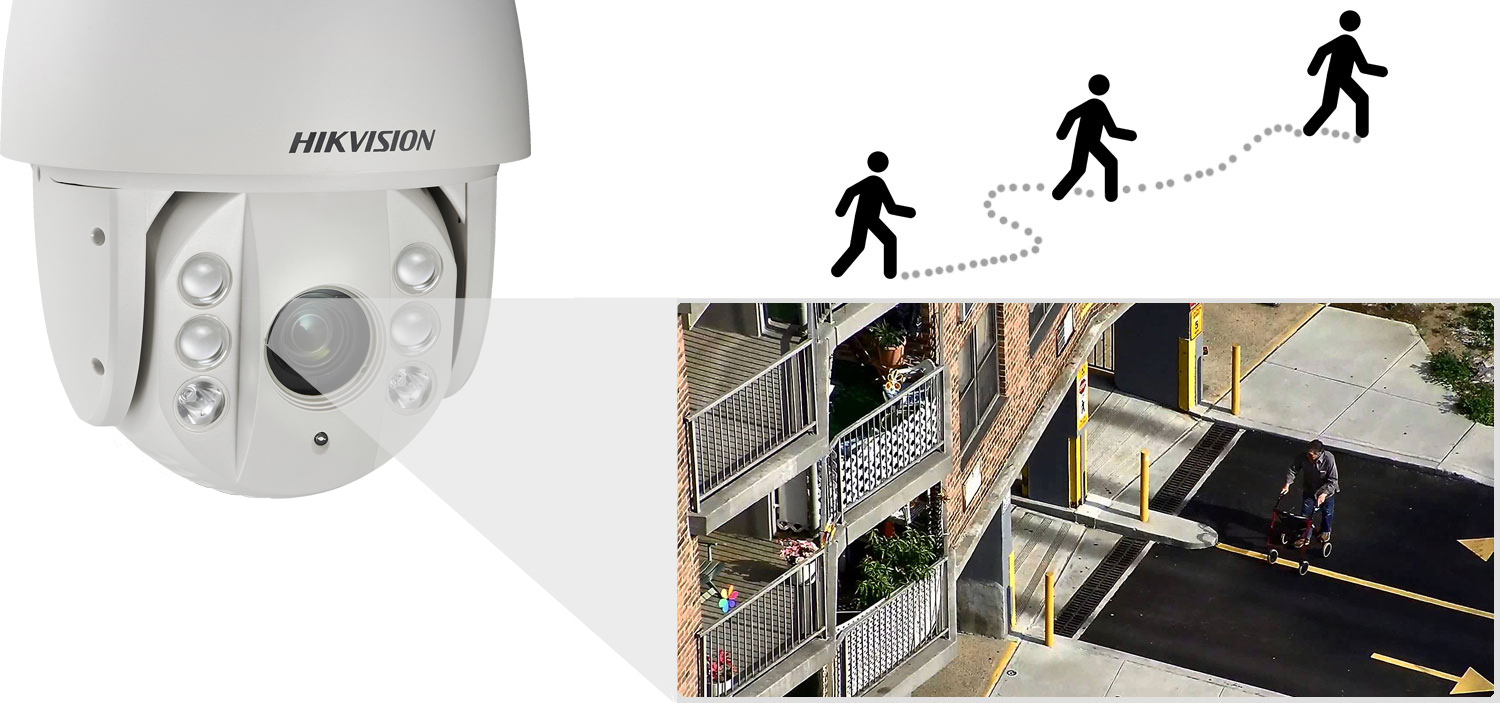

Smart Auto-tracking

The smart auto tracking function controlspan / tilt movements to automatically trackthemoving object and followit within the camera’s area of coverage. Tracking can be triggered manually or automatically by setting rules. When the rule is run, the camera can automatically track the defined target.

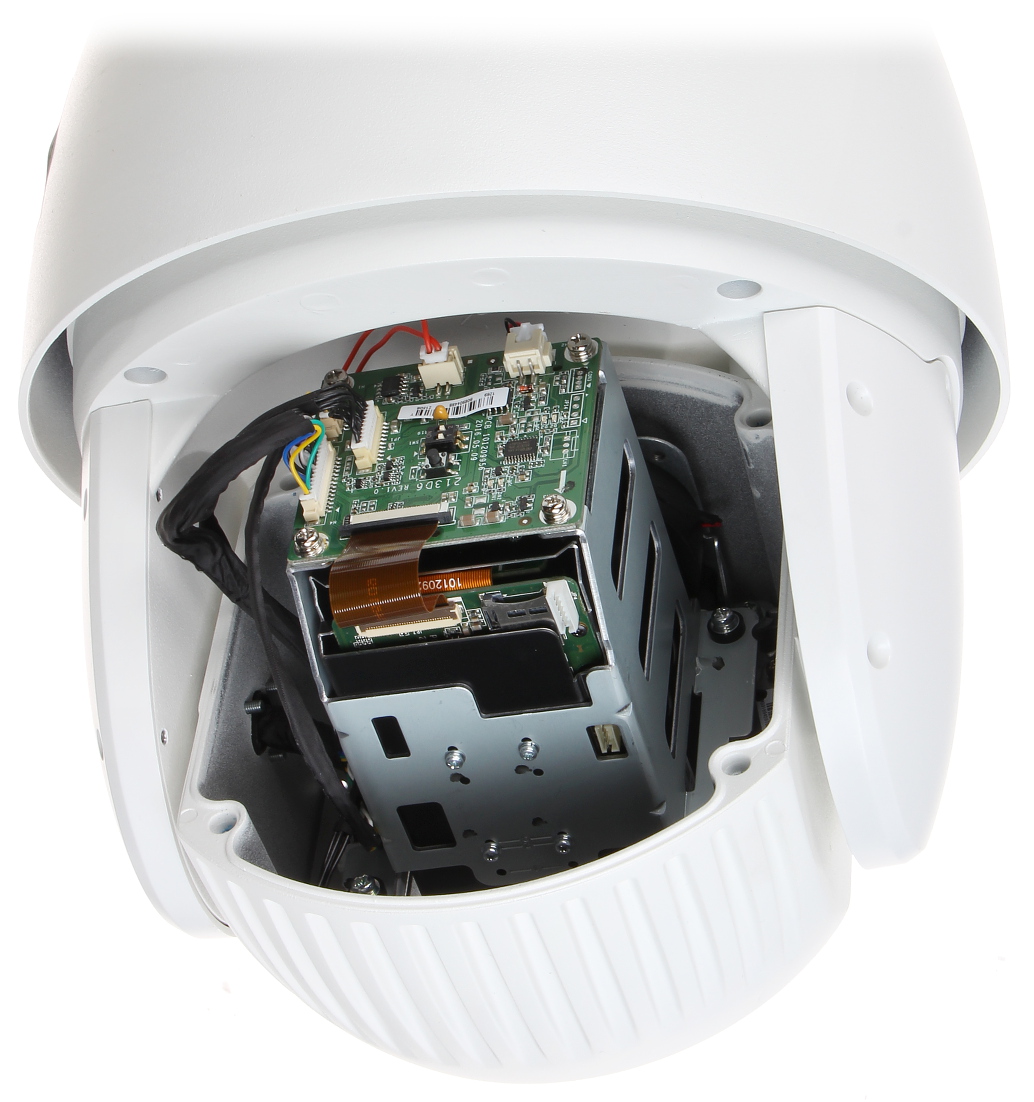

The Most Important Features of PTZ camera

The 2DE7530IW-AE PTZ head used in the device allows you to instantly change the position of the lens relative to the vertical axis and the full rotation of the camera along the horizontal axis.

Pan & Tilt
Pan Range	360°endless
Pan Speed	Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
Tilt Range	From -15° to 90°(Auto Flip)
Tilt Speed	Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
Proportional Zoom	Yes
Presets	300
Patrol Scan	8 patrols, up to 32 presets for each patro
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Yes
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display	Yes
Preset Freezing	Yes
Scheduled Task	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

A Modernized Version of PoE

Power over Ethernet is a solution designed for carrying out quick and uncomplicated assembly of network devices as well as comfortable operation of the equipment and easy modernization of the installation.

Up to 25fps/30fps@ 2592 x 1944

The number of images per second is a frame rate and is measured in frames per second (fps). The higher the number of frames per second the better quality and more smooth is the image displayed by the device.

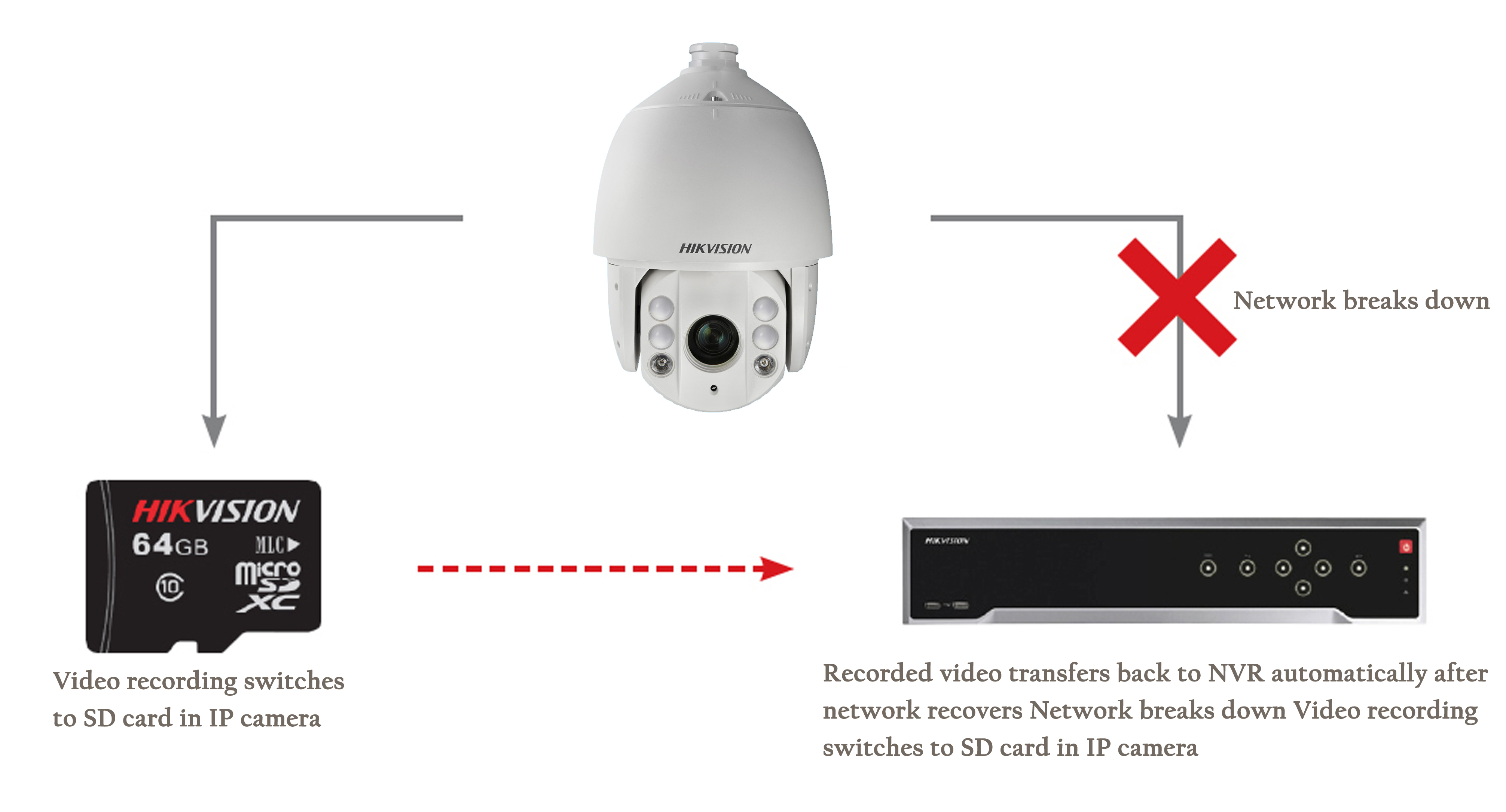

ANR-Automatic Network Replenishment

Emergency Scenario:• Network breaks down• Video recording switches to SD Card in IP camera• After network recovery, recorded video retransfers back to NVR

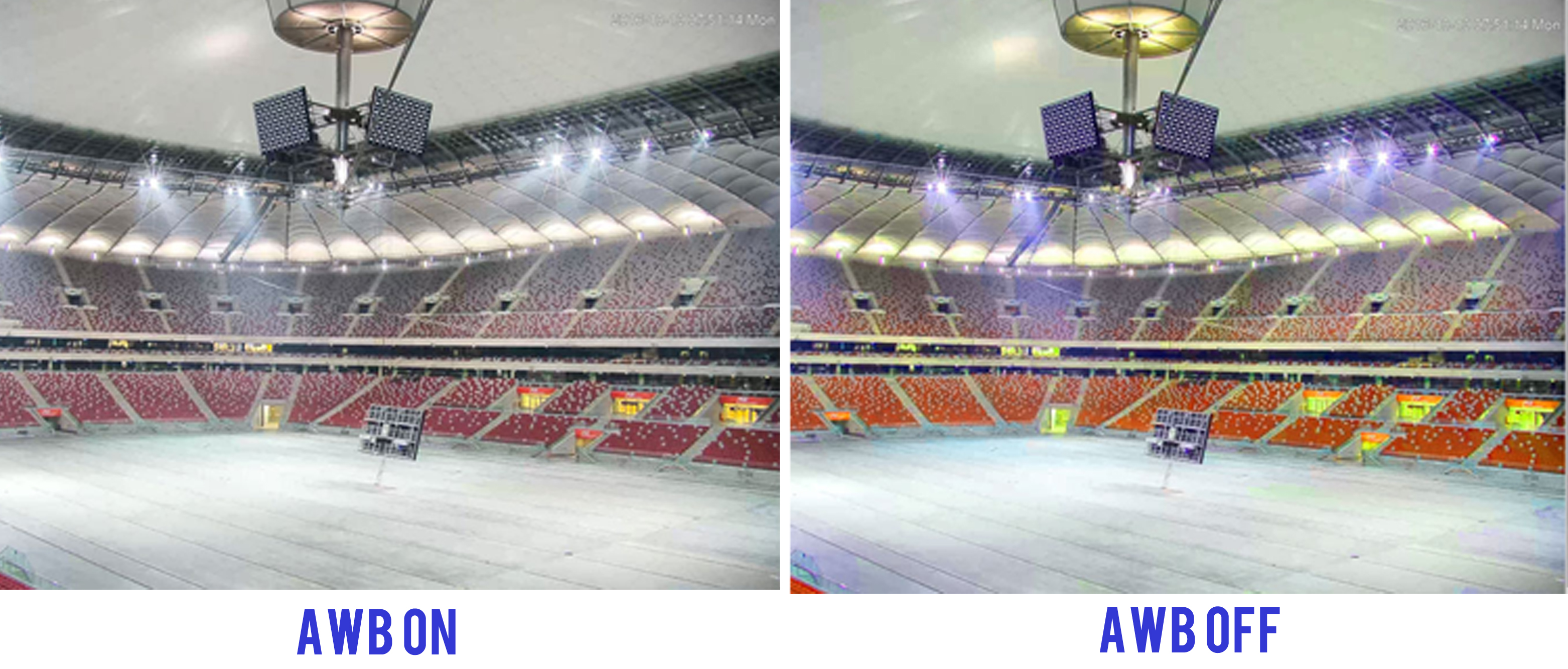

Auto-Tracking White Balance

The camera is equipped with the Auto Tracking White Balance (ATW) function that automatically tracks the white balance of images according to the lighting conditions.

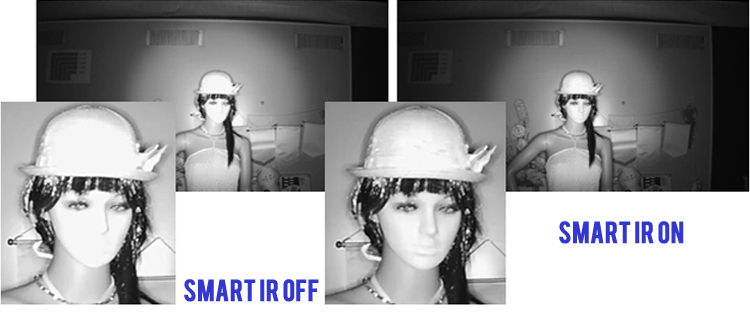

Smart IR

Smart IR is a technology was invented to adjusts the intensity of the camera’s infrared LEDs to compensate for overexpose problem. These cameras automatically adjust the intensity of their built in infrared LEDs to compensate for objects within close distances to the camera lens.

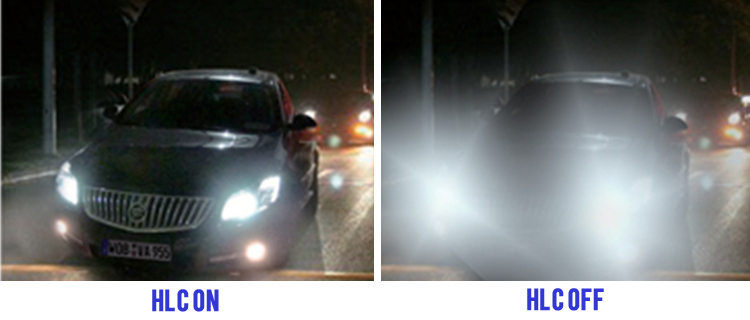

High Light Compensation

Compensate the strong light in the picture, so that the surrounding area wouldn't be over-exposed and still could be seen.

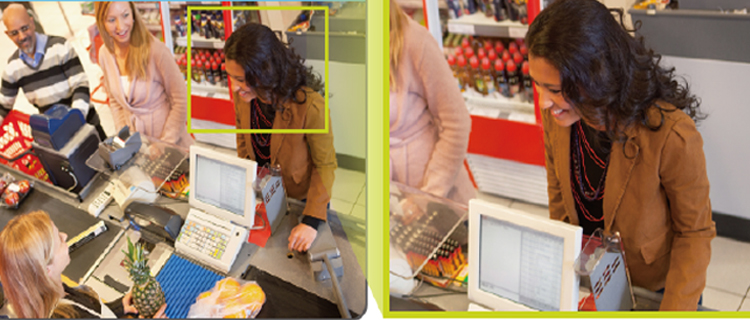

ROI-Region of Interest

ROI technology assigns a more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.Main stream, sub-stream and third stream respectively support fourfixed areas

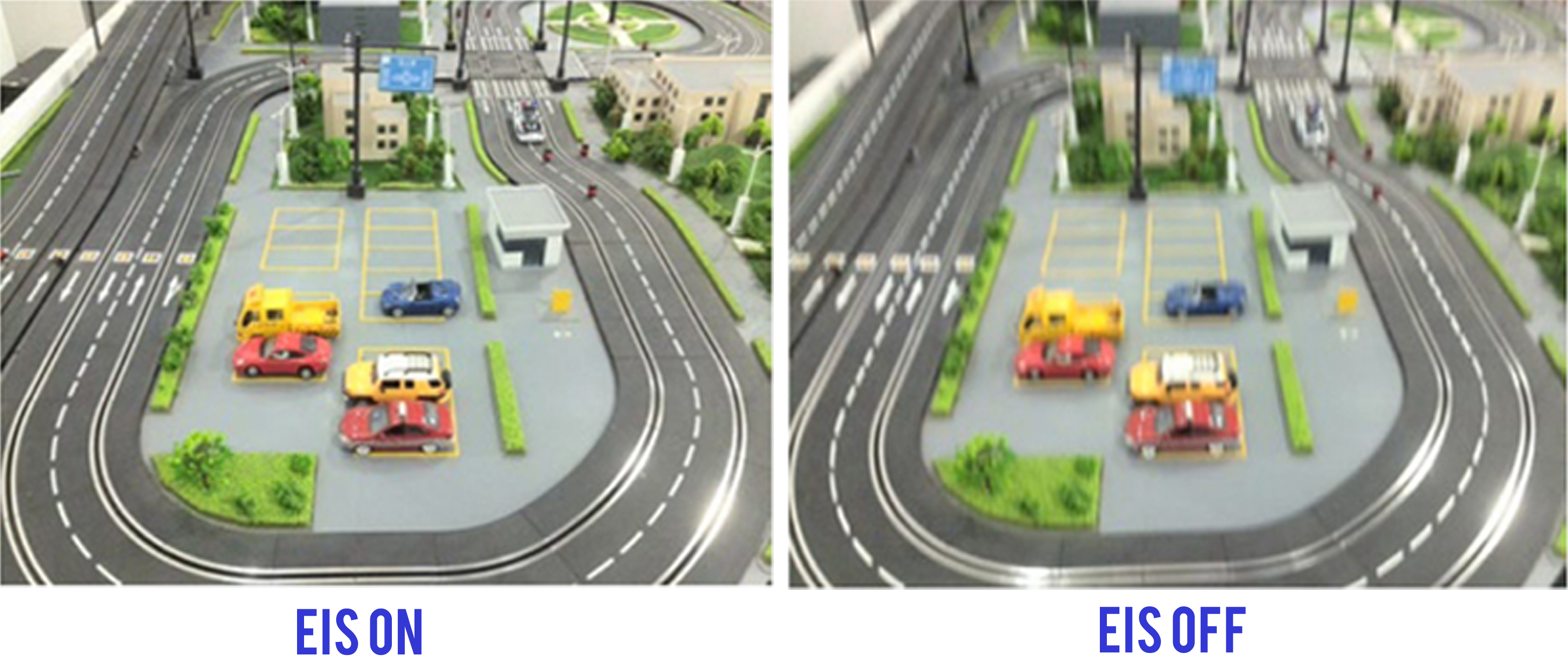

EIS- Electronic Image Stabilization

Electronic image stabilization is an algorithmic function of the camera processor that eliminates shocks caused during image recording in order to improve its quality.

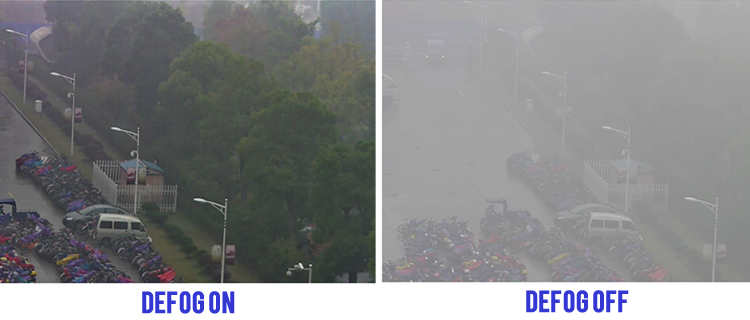

Defog

Defog is a feature designed to improve the readability of images from cameras operating in difficult weather conditions, rain, snow, fog or even smog.

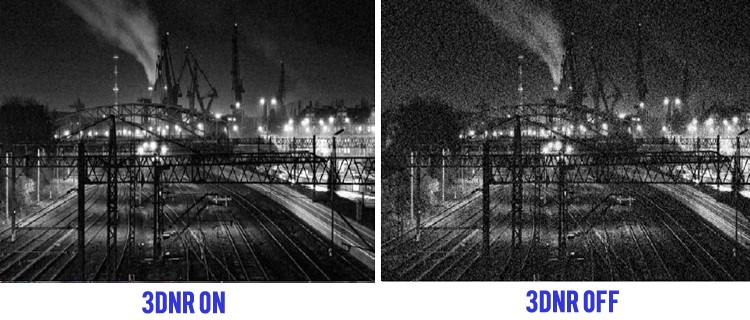

DNR-Digital Noise Reduce

Hik cameras adopt 3D digital noise reduction to provide images with less noise in low-light surveillance scenes compared to conventional cameras. 3D DNR can be used to enhance image quality and save bandwidth.

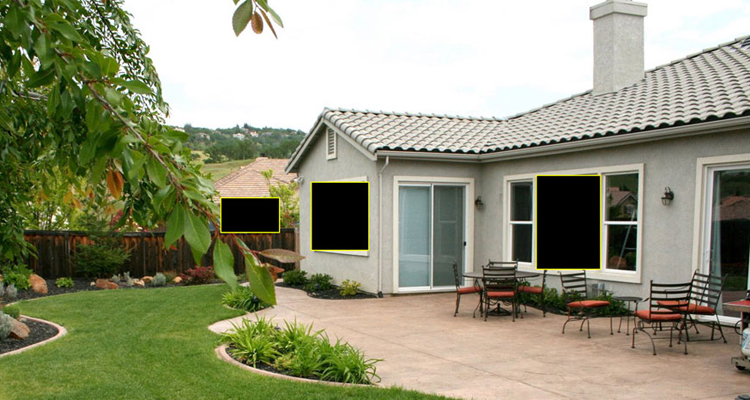

Privacy Masking

Thanks to the system of privacy masks (up to 8 programmable areas), it is possible to freely determine fragments of the image that will be excluded from the video surveillance.

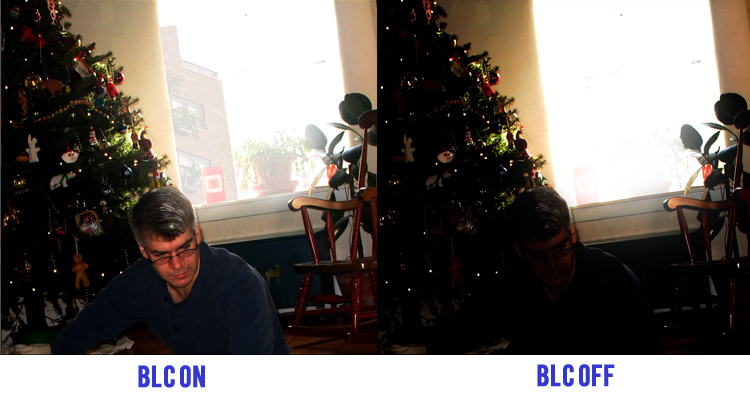

BLC-Back Light Compensation

If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make it clear.

VCA Smart Feature

Motion Detection

If there is any motion in the configured detection area, the camera will automatically detect the event and can trigger preconfigured alarms or recording. Users can set sensitivity level, detection area, and arming schedule accordingly.

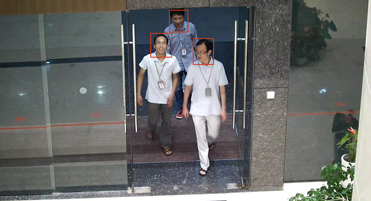

Face Detection

Human face that appears in the image can be detected and trigger linkage method

Audio Exception Detection

Detects and records all sound sources while filtering background noise. When the set volume is exceeded, an alarm is triggered.

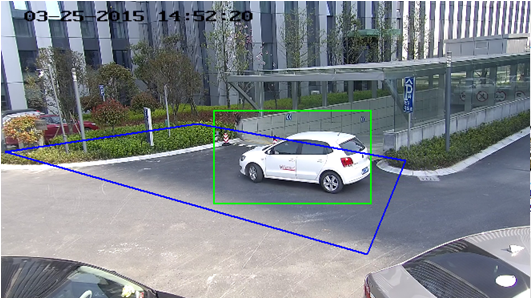

Intrusion Detection

Used to identify when a moving object enters and remains in a specified area for a period of time deemed unacceptable, such as an individual stepping over a partition in a museum.

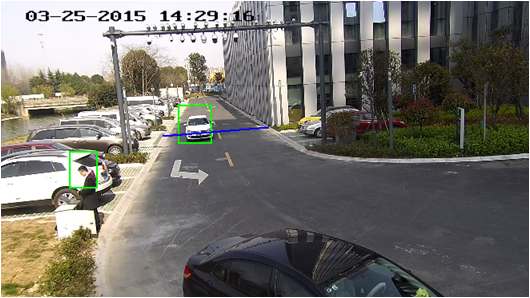

Line Crossing Detection

Used to detect when a moving object passes through the camera's field of view in a specified direction, such as an individual entering into a restricted area from the exit doorway.

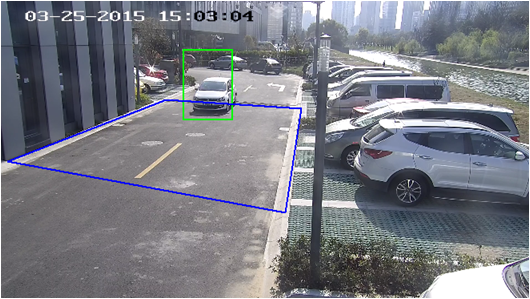

Region Entrance Detection

Used to detect people, vehicle or other objects which enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered.

Region Existing Detection

Used to detect people, vehicle or other objects which exit from a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

Specifications

Camera

Image Sensor

1/1.9"progressive scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.001 Lux @(F1.5, AGC ON)
0 Lux with IR

Shutter time

1/1 to 1/30,000s

White Balance

Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/
